Tree Shears

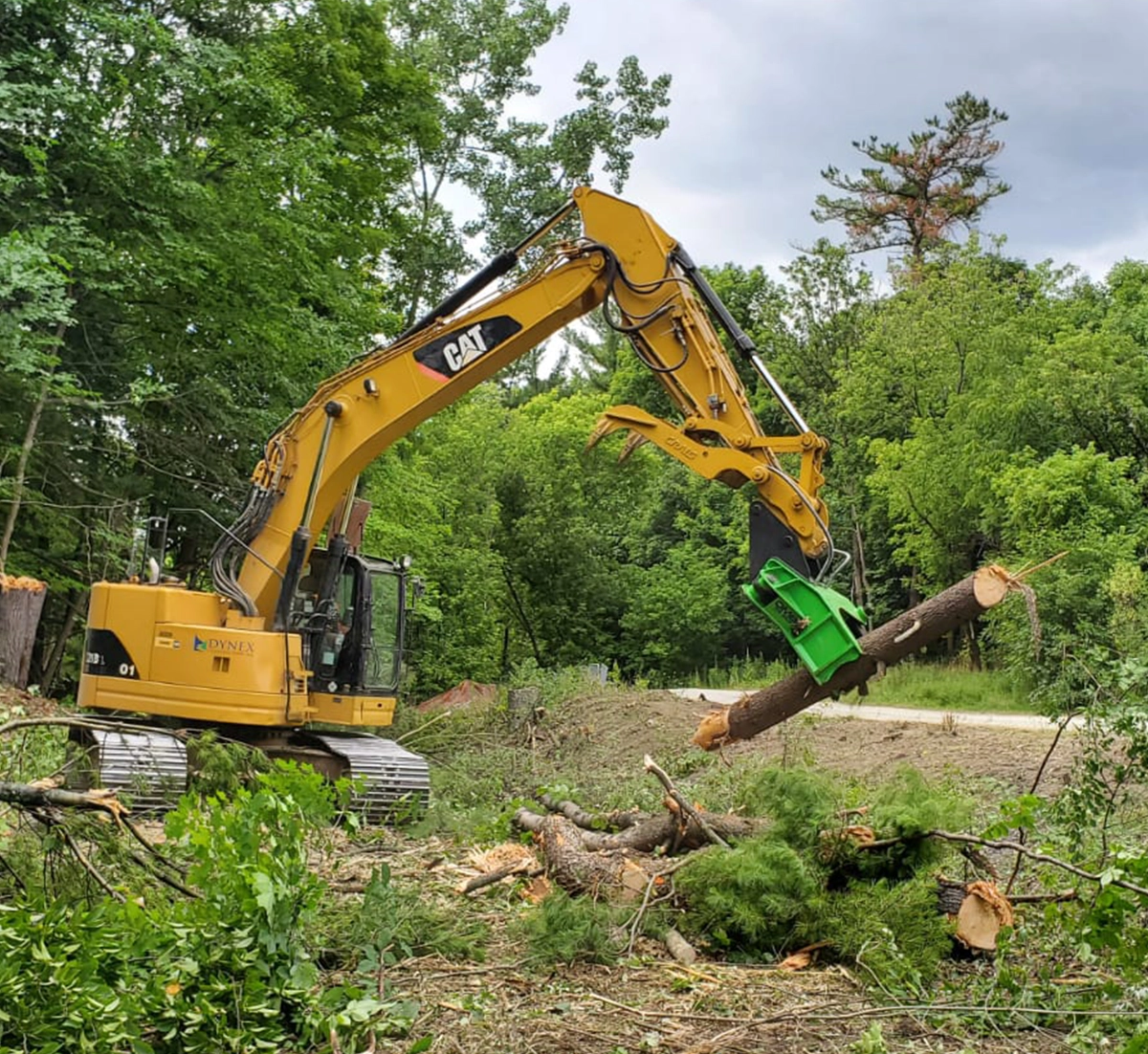

OMEF Big Inch tree shears fell, hold and bunch trees in a single pass, so clearing work runs faster with the operator in the cab. Nine models cover excavators from 1.5 to 50 tonnes, with cut sizes from 100 mm to 700 mm.
About the Tree Shears

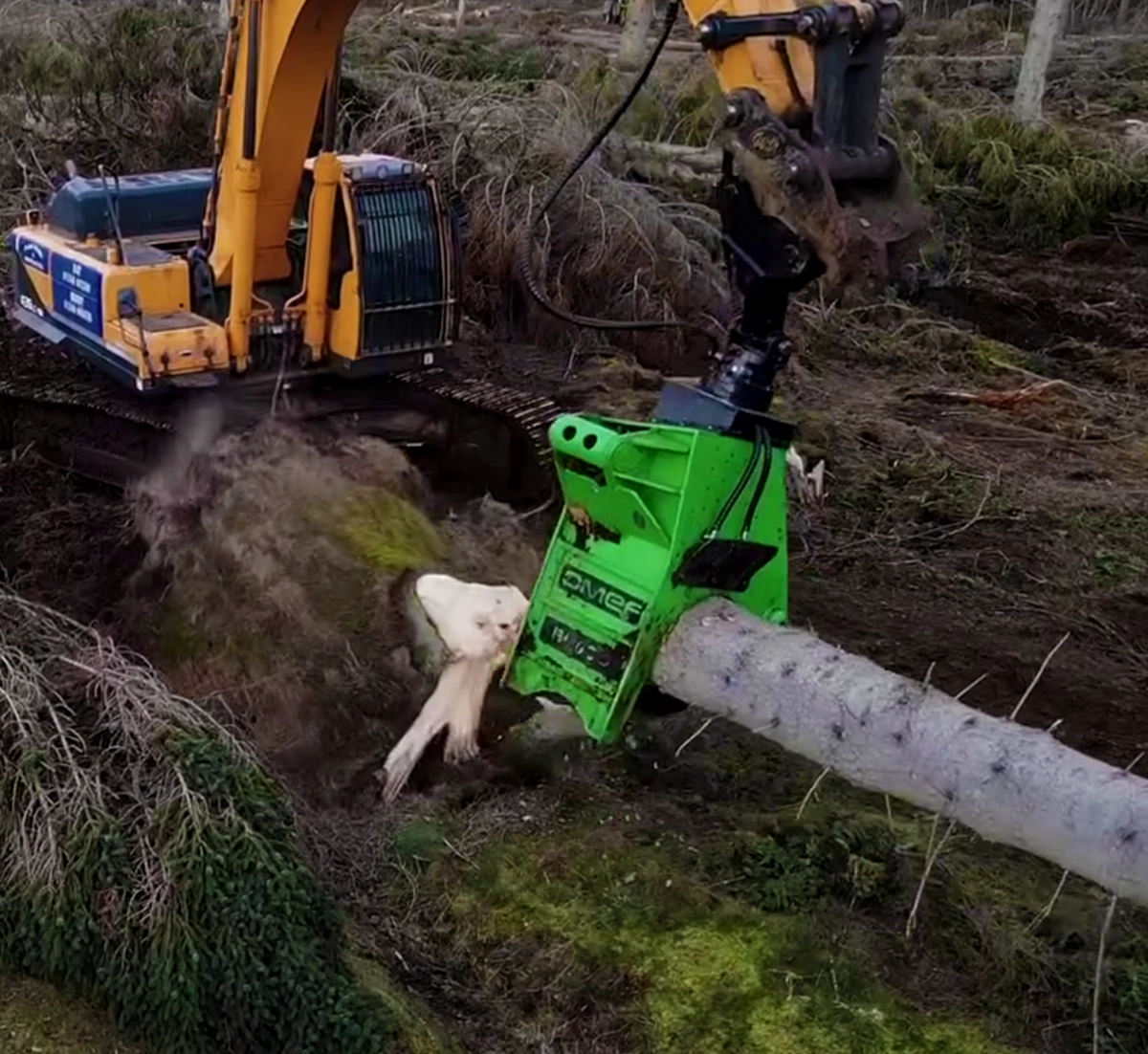

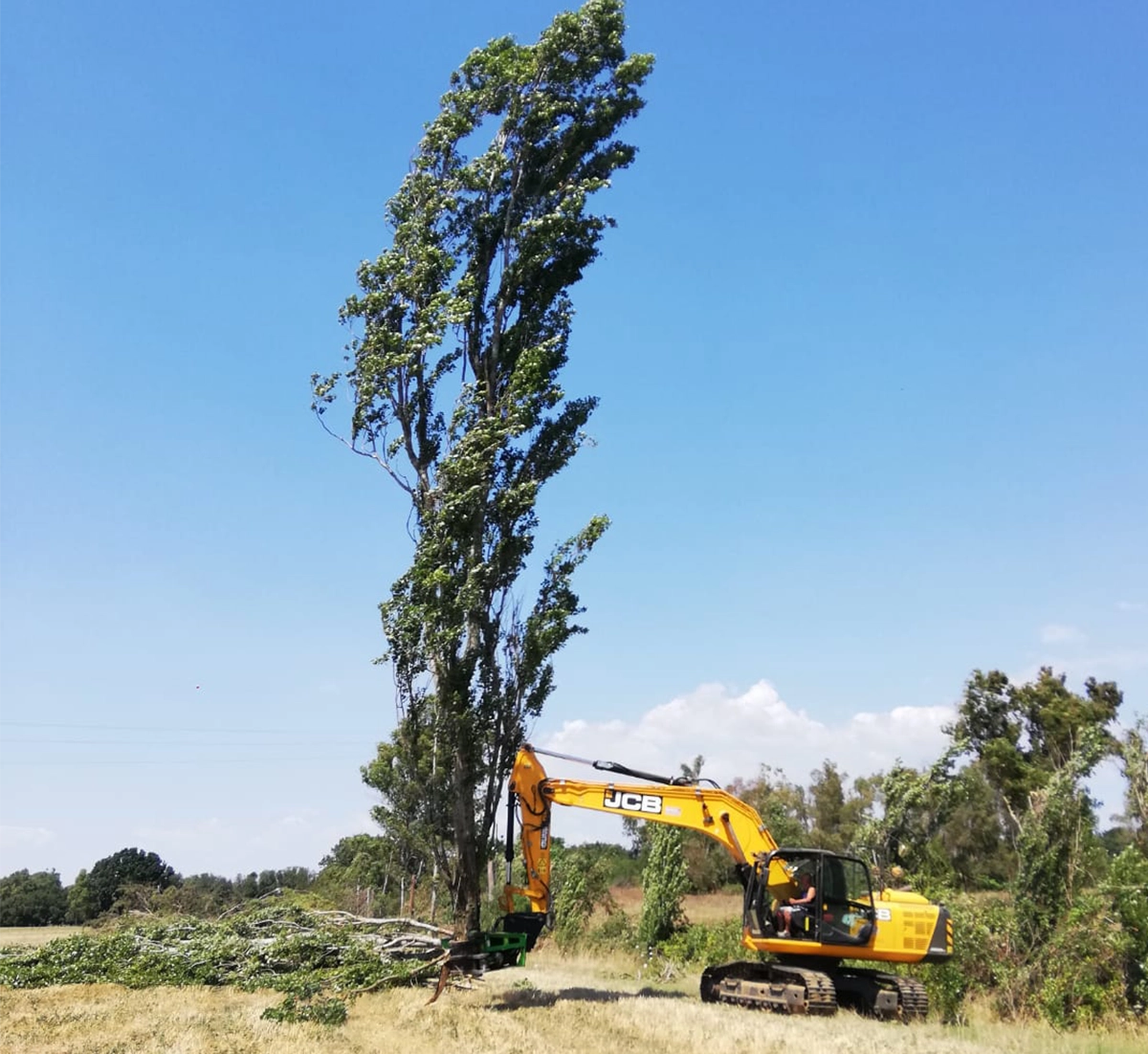

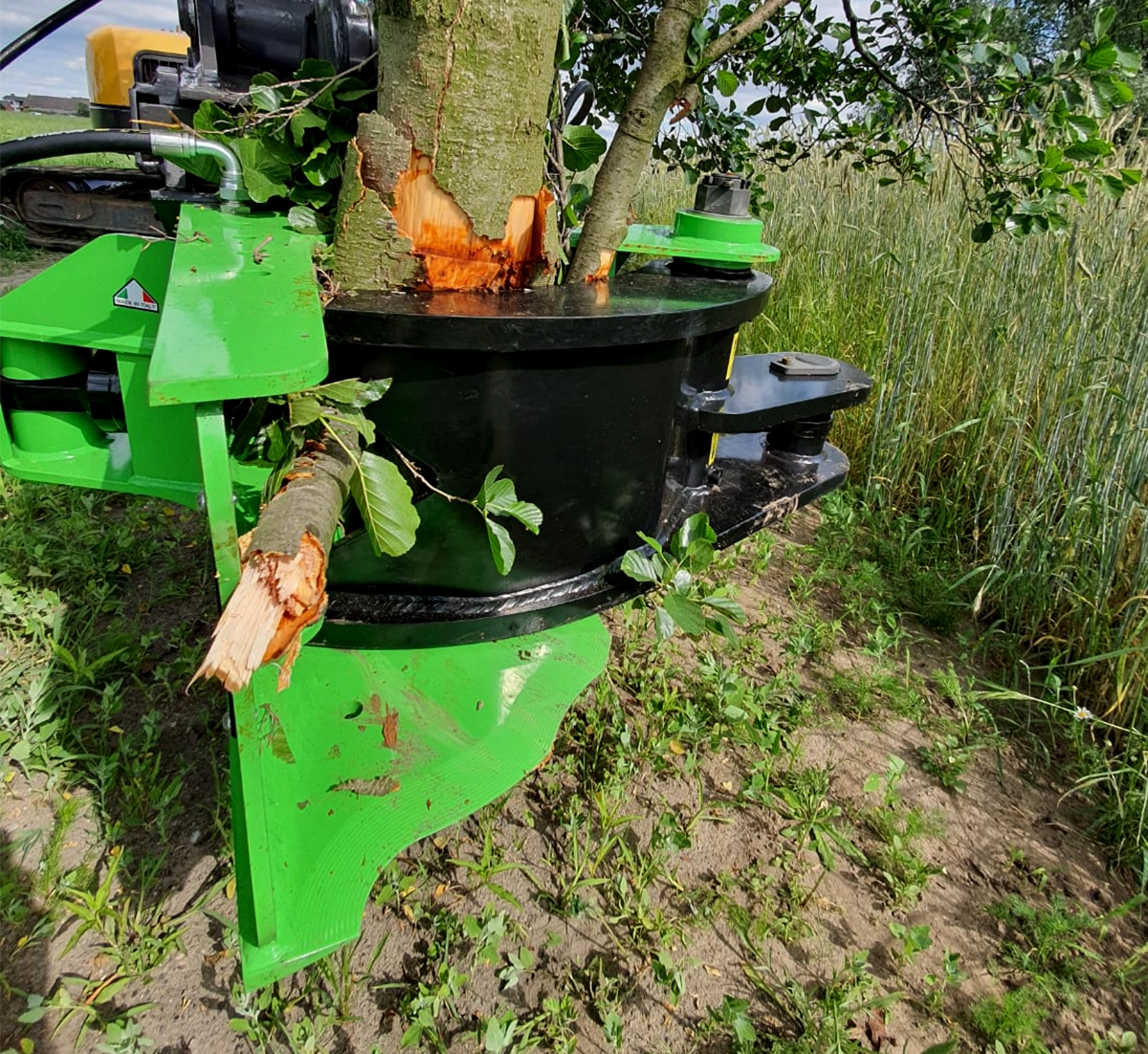

The Big Inch range is built around a single shear head with a welded or bolted blade. Smaller models suit orchard, shelterbelt and acreage work, while the BI500 and BI600 handle full forestry and land clearing on 23 to 50 tonne machines.
Options build the shear out for the job. A collector arm holds small stems while the shear keeps cutting, a rotation ring turns the head 360 degrees, and a tilt actuator tips it 45 degrees for angled cuts and bunching. Ripper extensions loosen soil and pull small stumps, and a second grab arm holds the tree after the cut, for safer felling in tight or urban areas.
Every new OMEF attachment is backed by a 1 year warranty.
Features
- Cut sizes from 100 mm to 700 mm across nine models
- Welded or bolted blade versions
- Optional collector arm for bunching small stems while cutting continues
- Optional 360 degree rotation ring
- Optional tilt actuator with 45 degree sideways tilt
- Optional ripper extensions for soil and small stumps
- Optional second grab arm for holding trees after the cut
- Adapter plates available for excavators, skid steers, backhoes and tractors
Specifications
| Excavator range | 1.5-50 Ton |
| Cut size | 100-700 mm |
| Blade | Welded or bolted |
| Rotation (option) | 360 degrees |
| Tilt (option) | 45 degrees |
Models

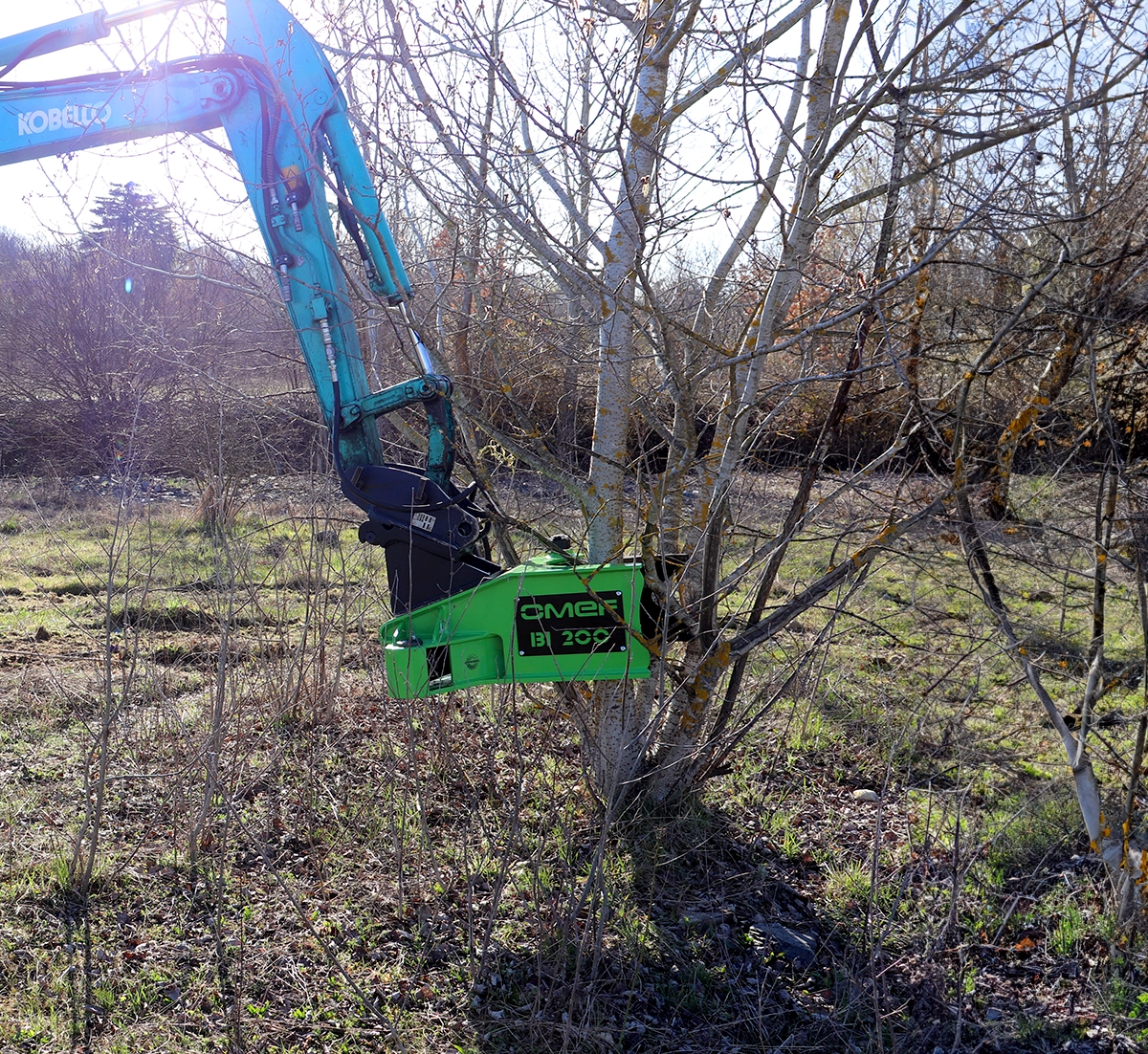

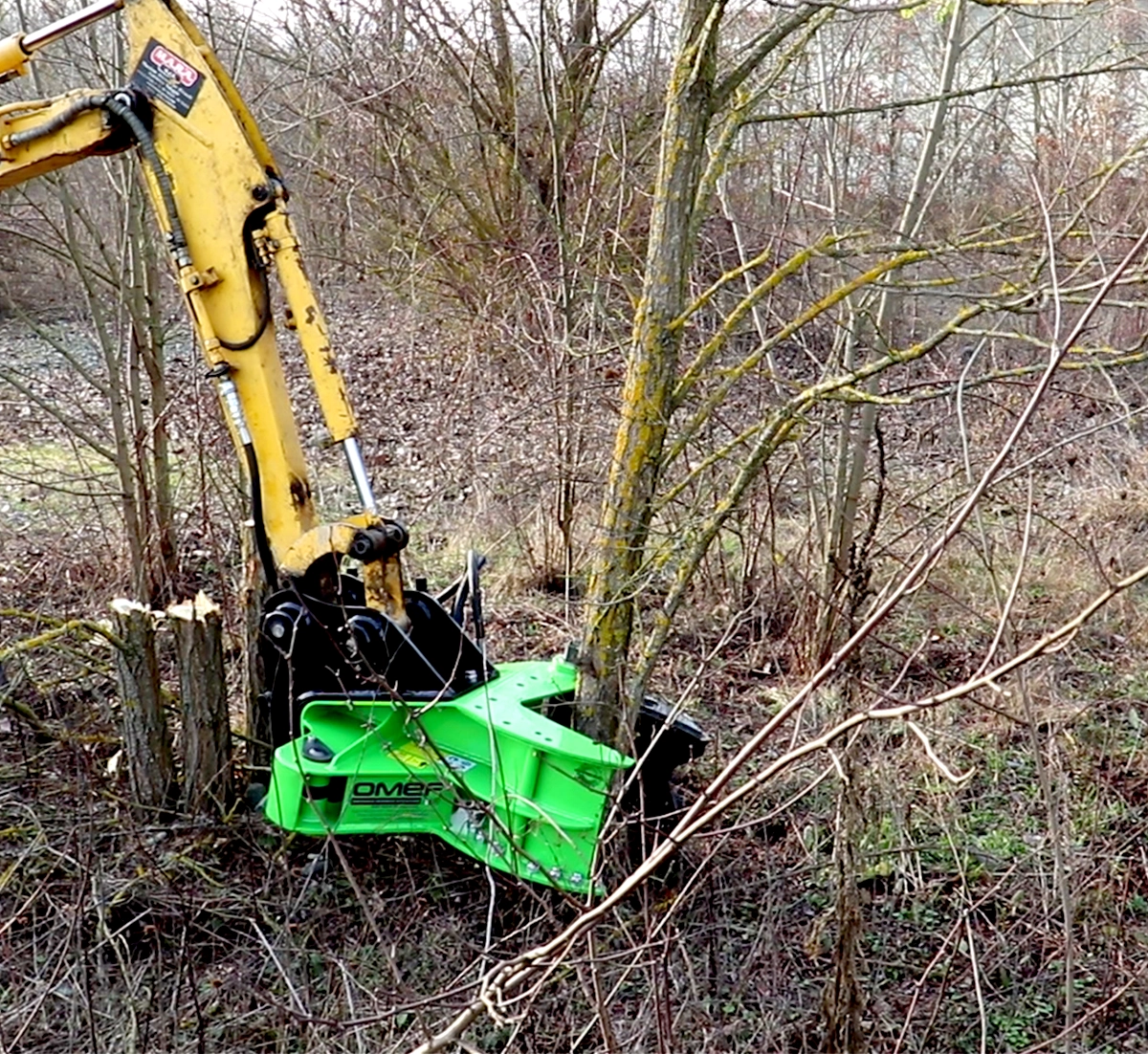

BI1001.5-3 Ton · 100/150 mm · BoltedView detailsBI2003-7 Ton · 200 mm · WeldedView details

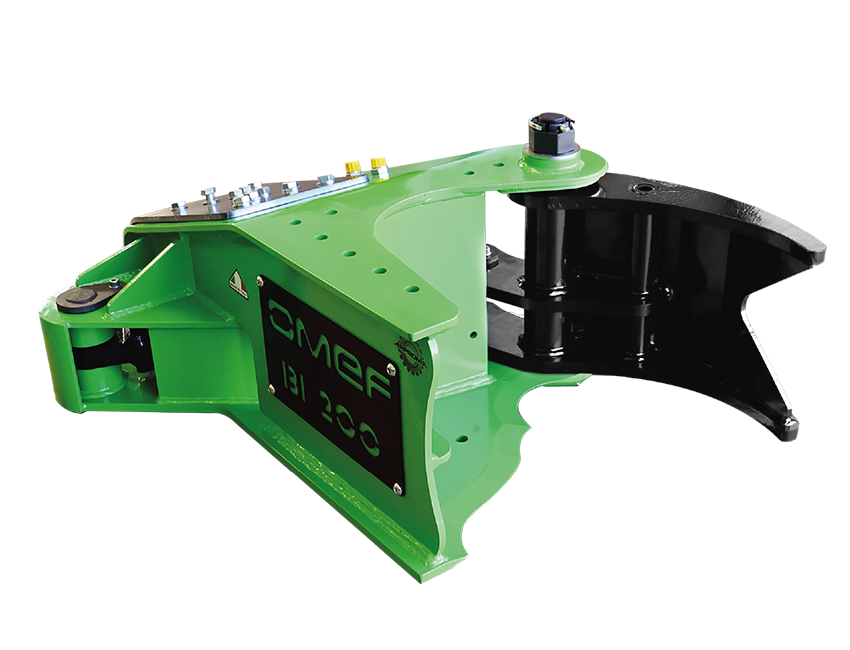

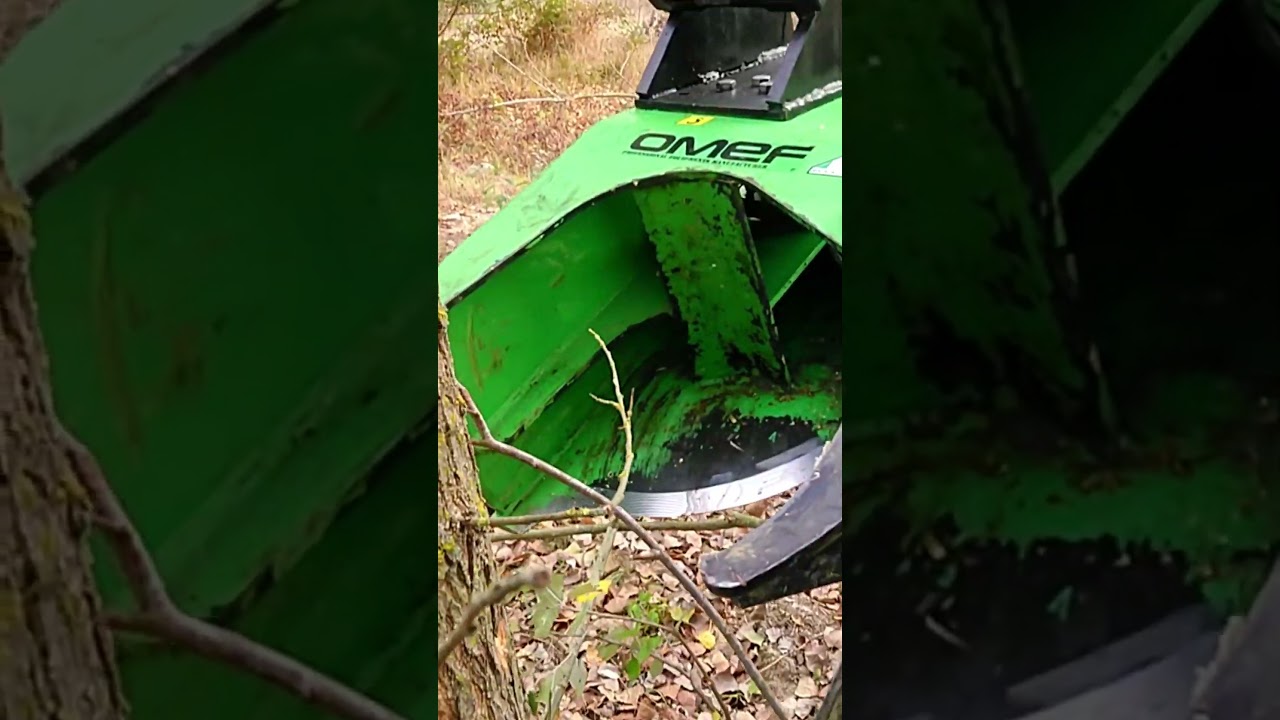

BI2023-7 Ton · 200 mm · BoltedView detailsBI3008-14 Ton · 300 mm · WeldedView details
BI3028-14 Ton · 300 mm · BoltedView detailsBI40014-24 Ton · 400 mm · WeldedView details

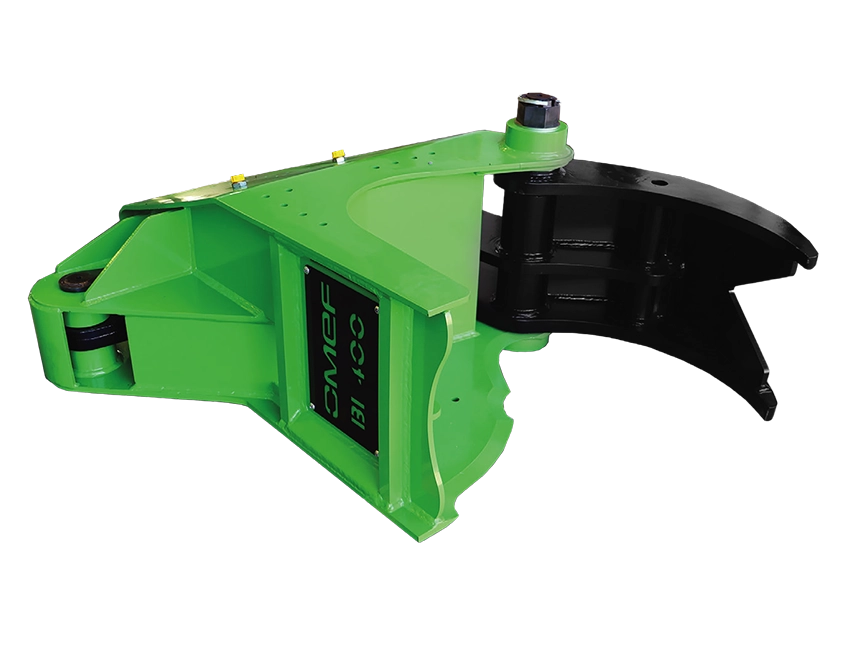

BI40214-24 Ton · 400 mm · BoltedView details

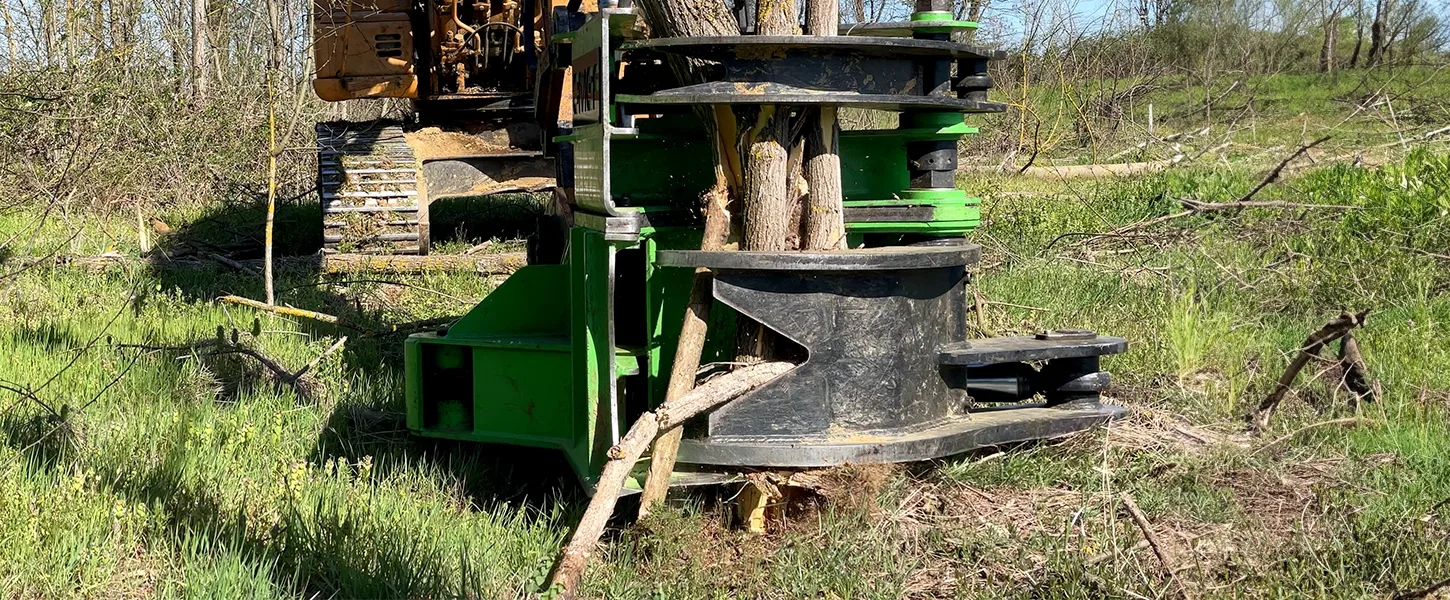

BI50223-30 Ton · 500-600 mm · BoltedView detailsBI60230-50 Ton · 700 mm · BoltedView details| Option | Fits |
|---|---|
| Collector arm | BI200, BI300, BI400 |
| Rotation ring, 360 degree | BI200, BI300, BI400 |
| Tilt actuator, 45 degree | BI200, BI300, BI400, BI500 |
| Ripper | BI300, BI400 |
| Second grab arm | BI400, BI500 |
Ask us about pricing on the shear and options package for your machine.
See OMEF at Work
Get a price on the Tree Shears
New OMEF attachments supplied through Valtek. Every new OMEF attachment is backed by a 1 year warranty. Tell us what machine you run and we will match the attachment to it.
