Rotating Log Grapples
The R-series grapples replace the spring center head with a 360 degree hydraulic rotator.
About the Rotating Log Grapples
The R-series grapples replace the spring center head with a 360 degree hydraulic rotator. The grapple picks up logs in any position and moves them exactly where you want them, which speeds up loading, stacking, and feeding a processor or mill.

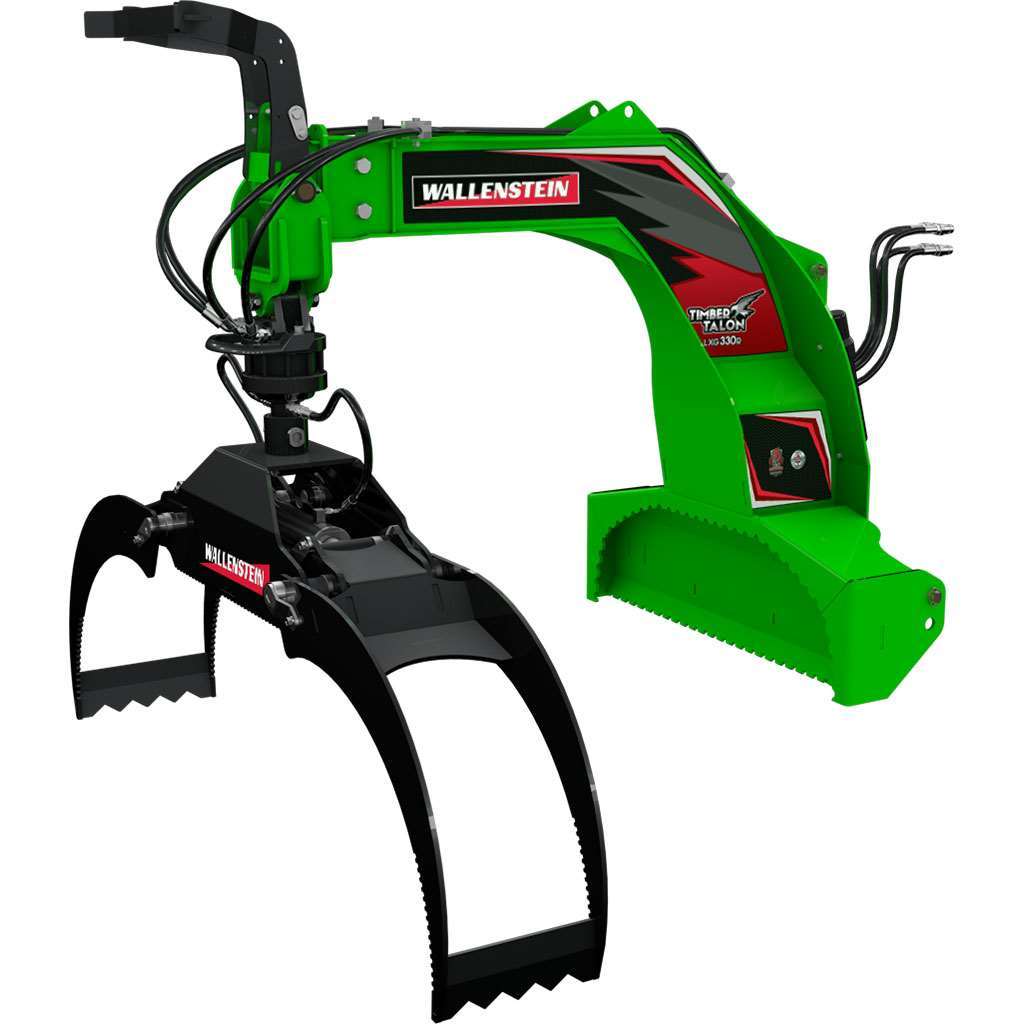

The line runs from the 3,000 lb LXG320R on a Cat I hitch to the 4,500 lb LXG330R and LXG430R with 72 inch openings. The LXG520R is built for mini excavators in the 2.5 to 6 ton range and lifts 6,750 lbs on a blank ear plate mount.
Made for farmers, rural property owners, and logging contractors who handle logs every day.
Features
- 360 degree hydraulic rotator
- Bypass grapple design
- Cantilever cradle supports the log load
- Push bar on the LXG330R and LXG430R
- Mounts for three point hitch, skid steer, and mini excavator
- Hydraulic hoses and couplers included on most models
Specifications
| Lift Capacity | 3000 - 6750 lbs |
| Grapple Opening | 3 - 72 " " |
| Grapple Rotation | 360° Hydraulic Rotator |
| Clamp Force | 9400 - 21000 lbs |
| Recommended Hydraulic Flow | 5 gpm (19 lpm) |
| Total Weight | 345 - 1124 lbs |
| Mounting Systems | See model pages |
| Engine HP Range | 25 - 120 |
| Includes Hydraulic Hoses and Couplers | Yes / No |
| Dimensions (LxWxH) | 51 - 67 " x " x " |
| Push Bar Width | 19" |
| Hydraulic Requirements | 2 Pressure, 2 Return or G100 Accessory |
| Tonnage Range | 2.5 - 6 |
Models
LXG320R25 - 65 · 3" - 48"View details
LXG330R55 - 120 · 3" - 72"View detailsLXG420R30 - 70 · 3" - 48"View detailsLXG430R60 - 100 · 3" - 72"View detailsLXG520R3" - 48" · 360° Hydraulic RotatorView detailsPrices are in Canadian dollars, plus HST, and are subject to change without notice.
Get a price on the Rotating Log Grapples
New Wallenstein equipment supplied through Valtek. Tell us what machine you run and we will match the model to it.
