HLA ATTACHMENTS

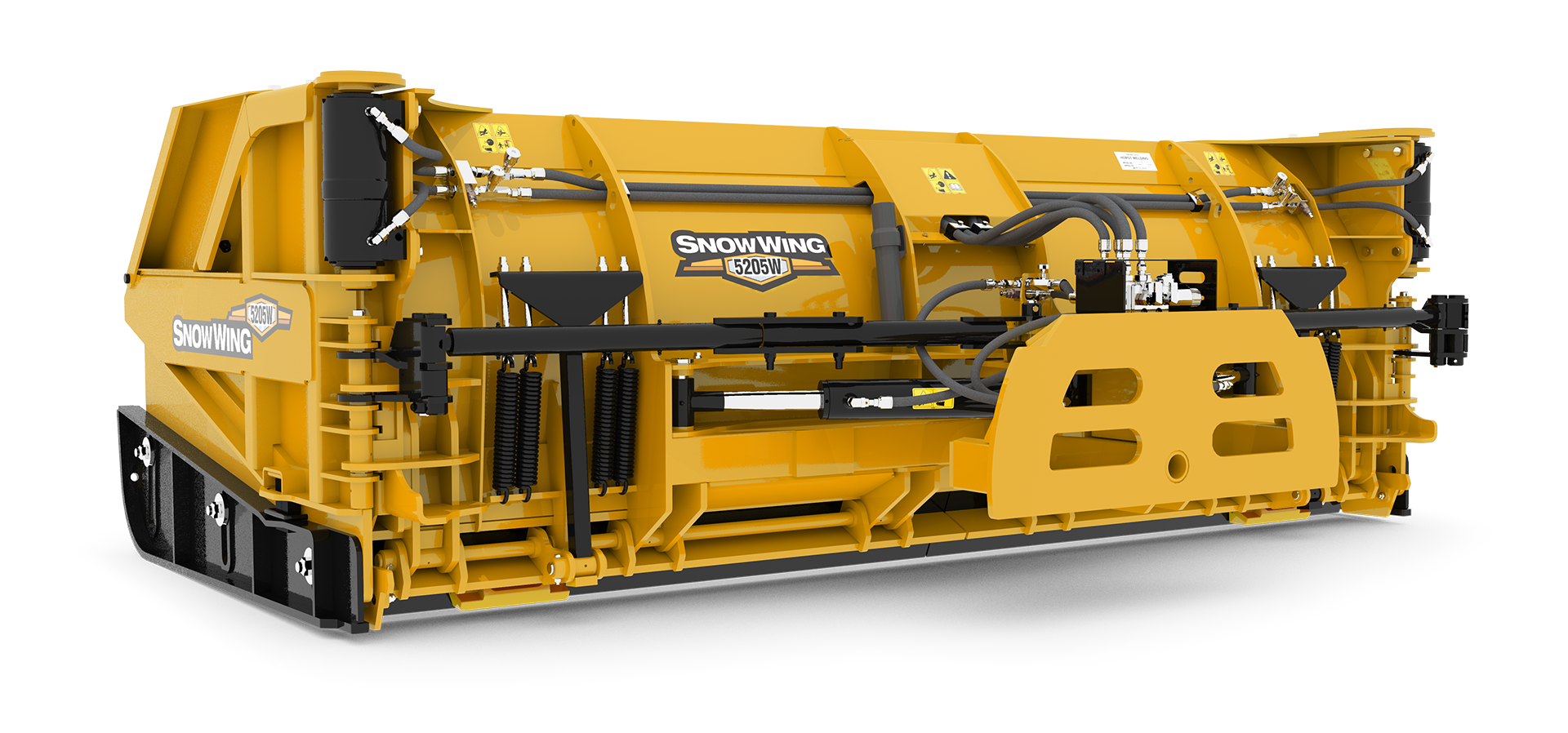

5205W SnowWing

The 5205W Series SnowWing is sized for ag tractors and wheel loaders from 25,000 to 40,000 lbs. operating weight.

About the 5205W SnowWing

Supplied new through Valtek

The 5205W Series SnowWing is sized for ag tractors and wheel loaders from 25,000 to 40,000 lbs. operating weight. Featuring 60” long adjustable wings with patented rotary actuators, to combine the functionality of both angle blades and box pushers, it provides unparalleled efficiency and productivity for commercial contractors.

New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 5205W SnowWing and its mount to it and price it out.

Features

2 Year Warranty: Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
5' Wings: The five foot wing models in the SnowWing lineup reach even further, requiring fewer passes to finish each job.
Removeable Upper Wing Tip: Each five foot wing model comes stardard with removeable upper wing tips. When removed, it forms a contour wing, designed to go under the fifth wheel pin of trailers, clearing those hard to reach places for an even cleaner finish.
180° Rotation: Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation.
35° Angle with Crossover Relief Valve Protection: Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
Floating End Plate Edge: Floating endplate edges follow surface contour for confident snow clearing.
Lateral Float: Allows blade to follow ground contours for better clearing performance.
Nitrate Rods on Angle Cylinders: Nitrate rods on angle cylinders.
Replaceable, Reversible Cutting Edge: Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life. Note: Replace endcaps along with cutting edges to prevent streaming. Wing edges are not reversible. (non Edge Flex only)
Rotary Actuators: These rugged units come from the construction industry and deliver up to 54,200 in-lb. of torque at 3000 PSI to hold the wings in place.
Cast Highway Skid Shoes: Standard on 4203W, 4205W, 5203W, 5205W, and 6205W SnowWings without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
Spring Trip Cutting Edge: Allows cutting edge to trip back if struck by hidden object limiting damage.
Tire Protection System: Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment.
Double Electric Selector Valve: Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.
Quick Attach Frame Kits: Quick attach frame kits are available for most makes. Call dealer for details.

Options

Spill Guard: Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades.
Carbide Cutting Edges: Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
Curb Runner: The optional Curb Runner runs along the front face of the curb, preventing the edge of the wing from catching on any edges.
Floating Blade Hinge: This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the attachment carrier forward.
Snowblade Marker: Add this to your blade for better visibility and blade position awareness.
Foot Switch: The new Foot Switch is a direct replacement for the 3-way toggle switch traditionally used to control the diverter valve on SnowWing plows. Available as a field install kit to retrofit from a 3-way toggle switch, or as an upgrade option with a new plow order.
SB5QDM Quick Attach Snow Blade Mount: Call dealer for more details.
AR400 Large Pad Skid Shoe: Large pad style skid shoes for better floatation on soft surfaces NOTE: Available on non Edge Flex models.
Edge Flex Models: Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.

Specifications

5205W SnowWing sizes and part numbers

Part #	Cutting Edge	Approx. Weight (LBS.)	Clearing Width Closed (in.)	Clearing Width Open (in.)	Overall Road Width (Angled) (in.)	Snow Clearing Width (Angled) (in.)	Wing Width (Each)	Mouldboard Height	Max Operating Weight (lbs.)
SB5205W919	Standard	3,780	108	228	103	189	60"	42"	40,000
SB5205WEF2919	Edge Flex	3,770	108	228	103	189	60"	42"	40,000
SB5205W1020	Standard	3,910	120	240	113	199	60"	42"	40,000
SB5205WEF21020	Edge Flex	3,910	120	240	113	199	60"	42"	40,000
SB5205W1222	Standard	4,175	144	264	133	219	60"	42"	40,000
SB5205WEF21222	Edge Flex	4,195	144	264	133	219	60"	42"	40,000
SB5205W1424	Standard	4,465	168	288	153	239	60"	42"	40,000
SB5205WEF21424	Edge Flex	4,500	168	288	153	239	60"	42"	40,000
SB5205W1626	Standard	4,785	192	312	173	259	60"	42"	40,000
SB5205WEF21626	Edge Flex	4,840	192	312	173	259	60"	42"	40,000
