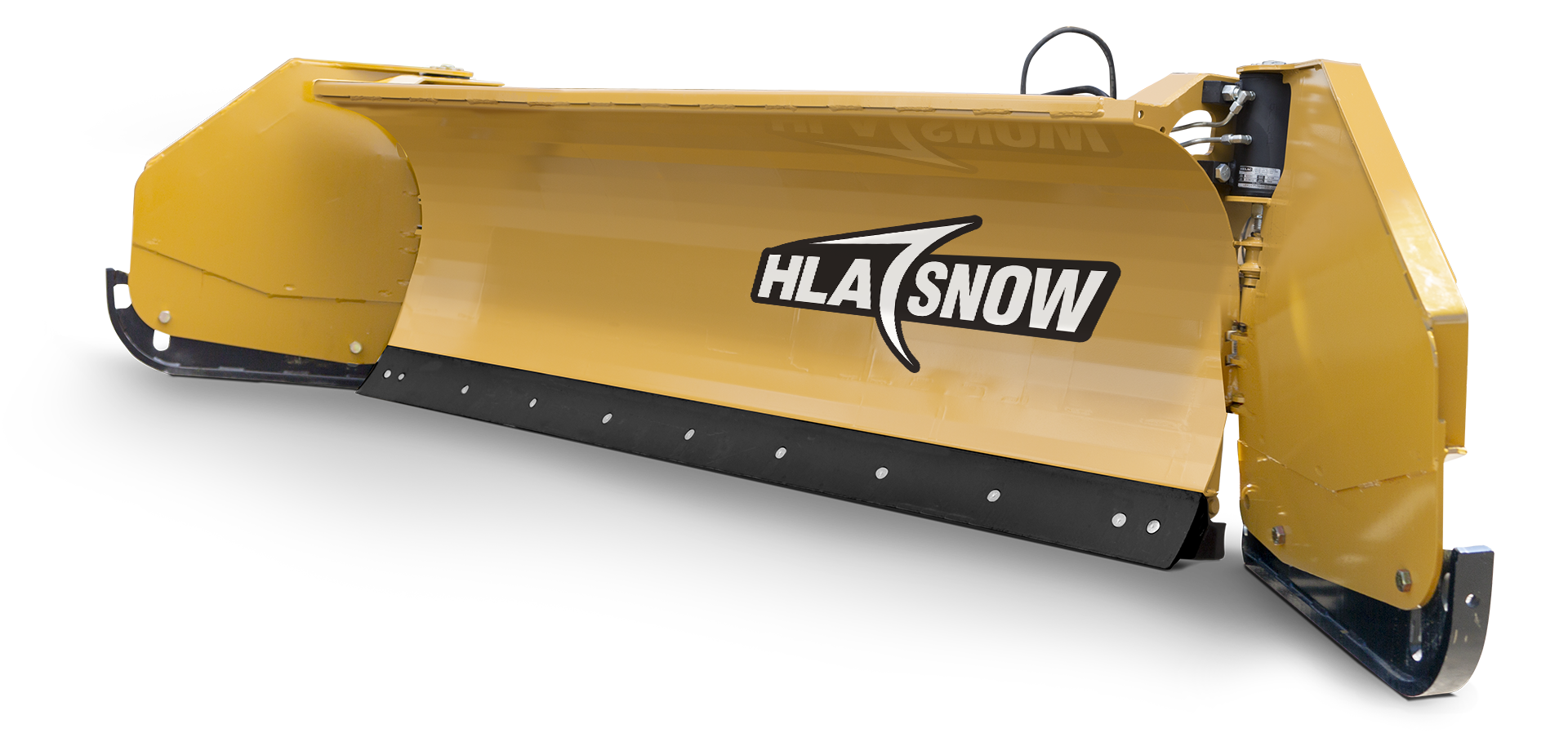

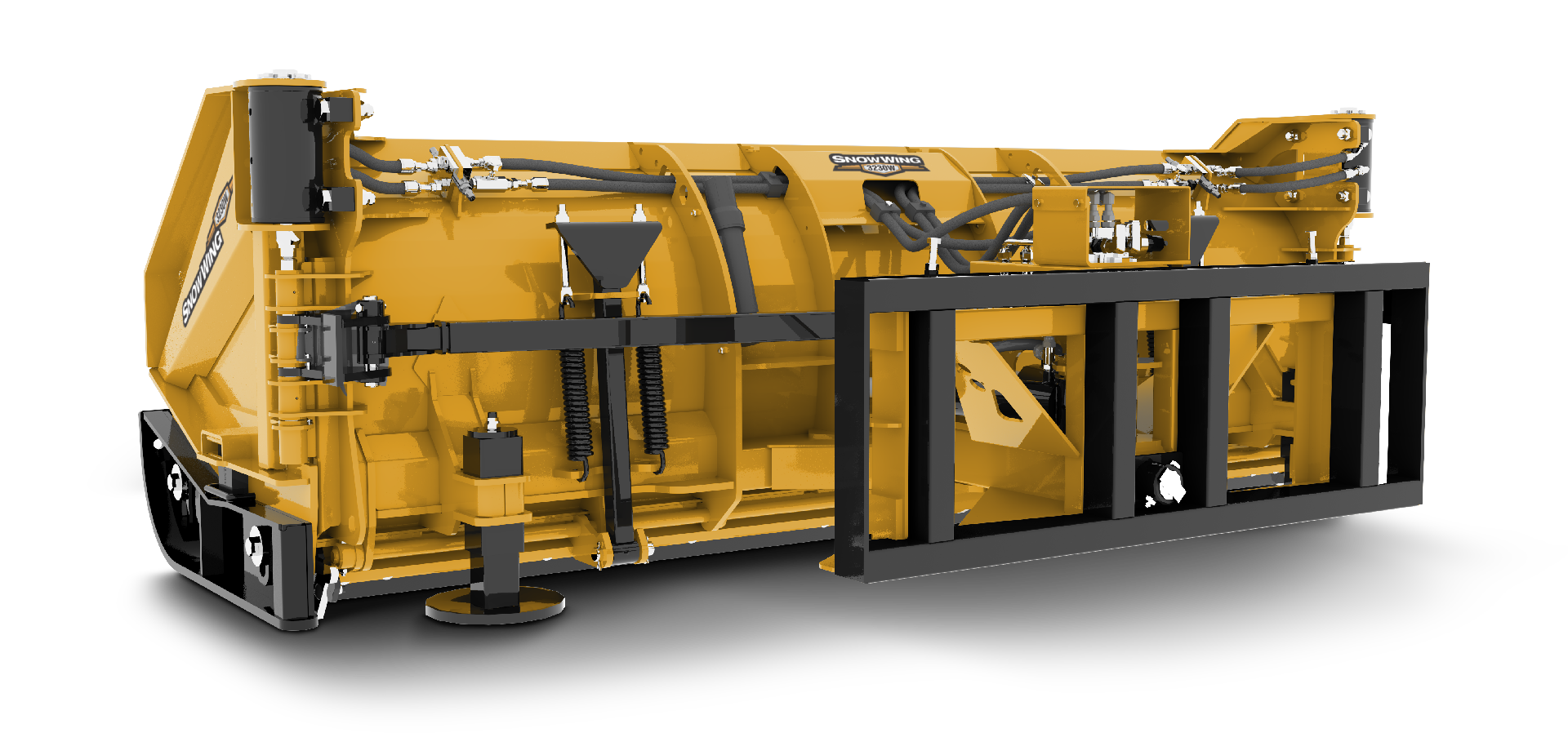

3230W SnowWing
The 3230W SnowWing Series is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight.
About the 3230W SnowWing
Supplied new through Valtek
The 3230W SnowWing Series is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, to combine the functionality of both angle blades and box pushers, it provides unparalleled efficiency and productivity for commercial contractors.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 3230W SnowWing and its mount to it and price it out.
Features
- 2 Year Warranty: Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
- 180° Rotation: Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation.
- 35° Angle with Crossover Relief Valve Protection: Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
- Floating End Plate Edge: Floating endplate edges follow surface contour for confident snow clearing.
- Lateral Float: Allows blade to follow ground contours for better clearing performance.
- Mouldboard Profile: Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.
- Replaceable, Reversible Cutting Edge: Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life. Note: Replace endcaps along with cutting edges to prevent streaming. Wing edges are not reversible. (non Edge Flex only)
- Rotary Actuators: These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place.
- Adjustable Skid Shoes: Allows you to set cutting depth for optimum performance and prolonged cutting edge life.
- Spring Trip Cutting Edge: Allows cutting edge to trip back if struck by hidden object limiting damage.
- Tire Protection System: Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment.
- Double Electric Selector Valve: Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.
- Quick Attach Frame Kits: Quick attach frame kits are available for most makes. Call dealer for details.
Options
- Rubber Cutting Edge: The optional rubber cutting edge is available for select models.
- Spill Guard: Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades.
- Curb Runner: The optional Curb Runner runs along the front face of the curb, preventing the edge of the wing from catching on any edges.
- Snowblade Marker: Add this to your blade for better visibility and blade position awareness.
- Floating Blade Hinge: This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the attachment carrier forward.
- Carbide Cutting Edges: Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
- Foot Switch: The new Foot Switch is a direct replacement for the 3-way toggle switch traditionally used to control the diverter valve on SnowWing plows. Available as a field install kit to retrofit from a 3-way toggle switch, or as an upgrade option with a new plow order.
- Edge Flex Models: Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
Specifications
3230W SnowWing sizes and part numbers
| Part # | Cutting Edge | Approx. Weight (LBS.) | Clearing Width Closed (in.) | Clearing Width Open (in.) | Overall Road Width (Angled) (in.) | Snow Clearing Width (Angled) (in.) | Wing Width (Each) | Mouldboard Height | Max Operating Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| SB3230W611 | Standard | 1,370 | 72 | 132 | 70 | 107 | 30" | 30" | 13,000 |
| SB3230WEF2611 | Edge Flex | 1,430 | 72 | 132 | 70 | 107 | 30" | 30" | 13,000 |
| SB3230W712 | Standard | 1,450 | 84 | 144 | 80 | 117 | 30" | 30" | 13,000 |
| SB3230WEF2712 | Edge Flex | 1,525 | 84 | 144 | 80 | 117 | 30" | 30" | 13,000 |
| SB3230W813 | Standard | 1,530 | 96 | 156 | 90 | 127 | 30" | 30" | 13,000 |
| SB3230WEF2813 | Edge Flex | 1,615 | 96 | 156 | 90 | 127 | 30" | 30" | 13,000 |
| SB3230W914 | Standard | 1,600 | 108 | 168 | 100 | 137 | 30" | 30" | 13,000 |
| SB3230WEF2914 | Edge Flex | 1,700 | 108 | 168 | 100 | 137 | 30" | 30" | 13,000 |
| SB3230W1015 | Standard | 1,670 | 120 | 180 | 110 | 147 | 30" | 30" | 13,000 |
| SB3230WEF21015 | Edge Flex | 1,795 | 120 | 180 | 110 | 147 | 30" | 30" | 13,000 |
Price: Call for pricing

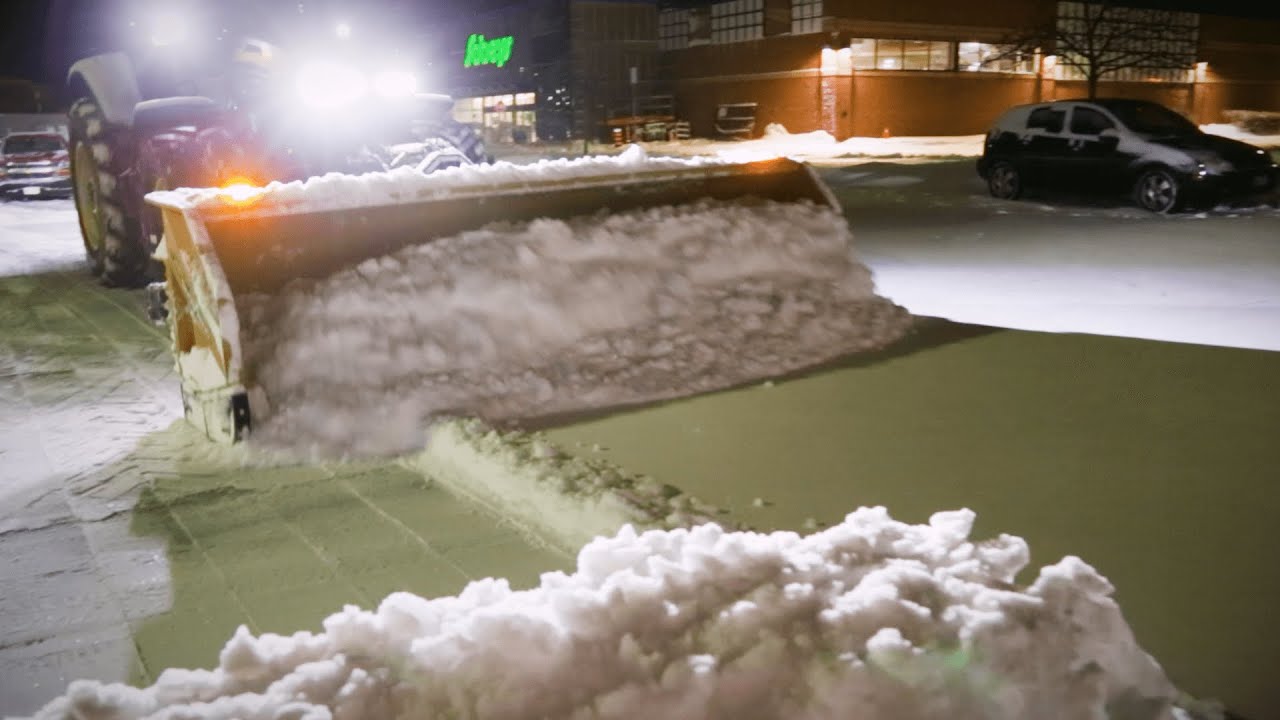

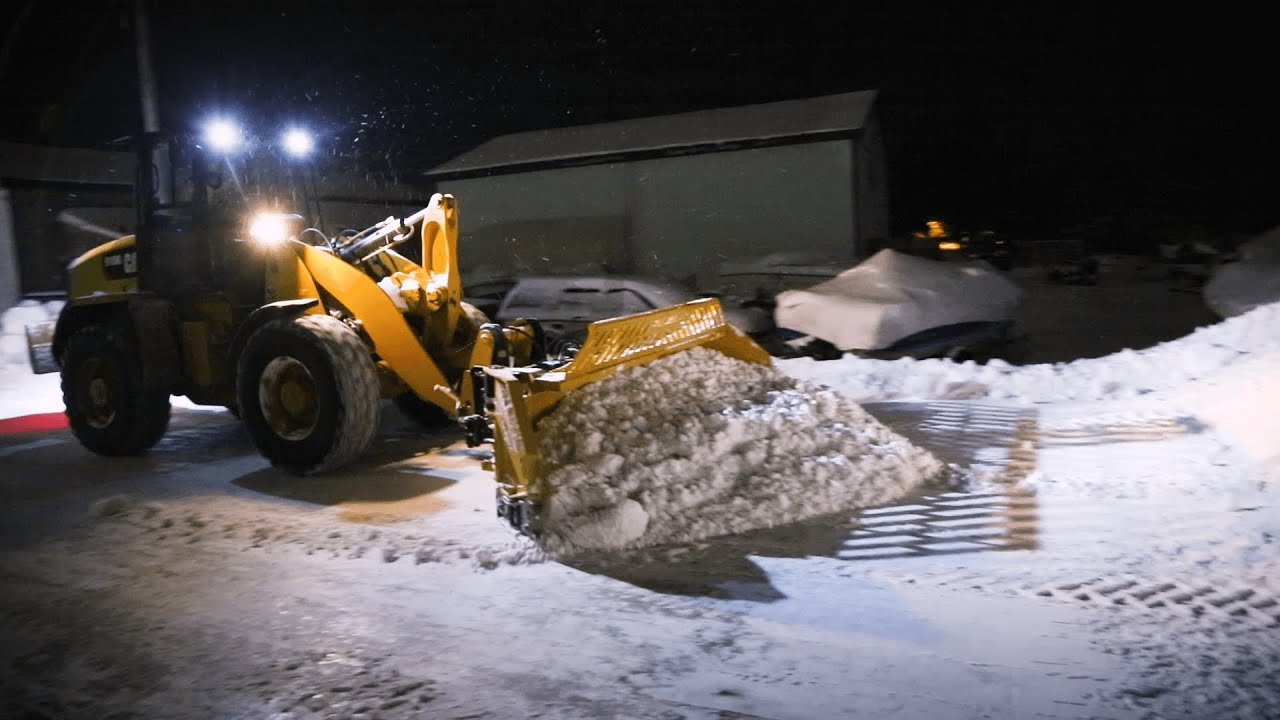

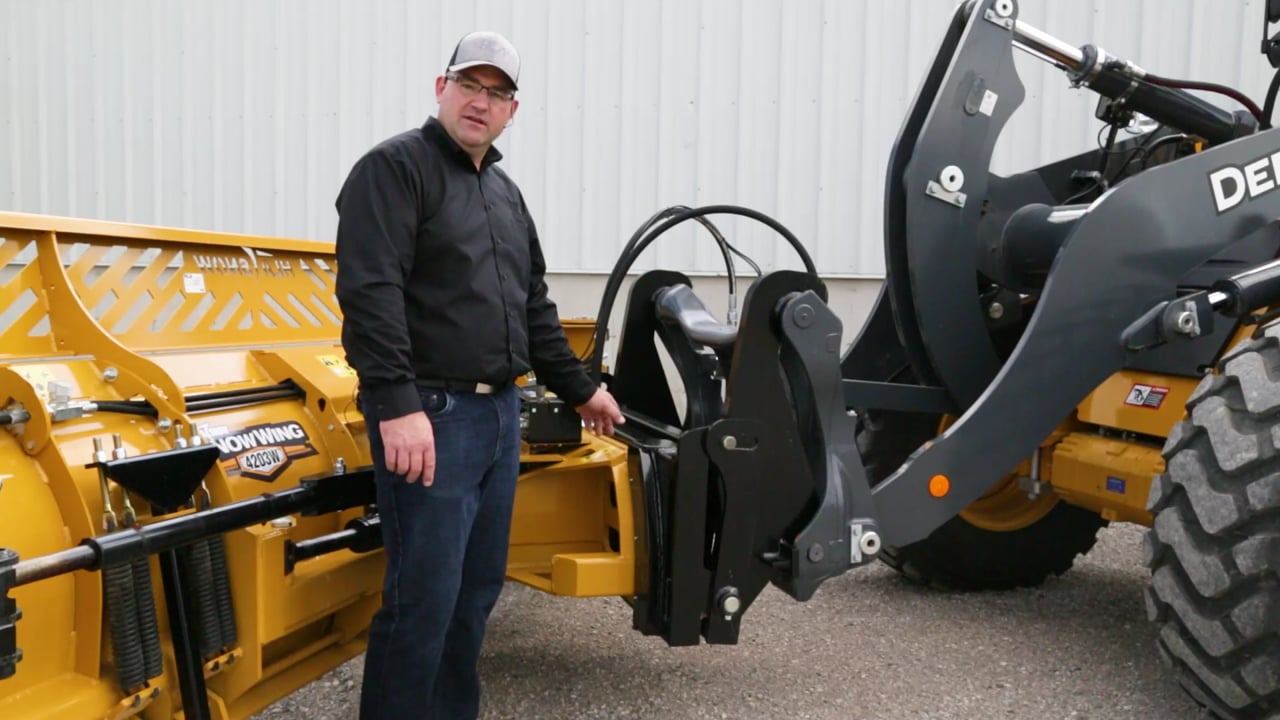

See the 3230W SnowWing at Work
HLA videos
Get a price on the 3230W SnowWing
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
