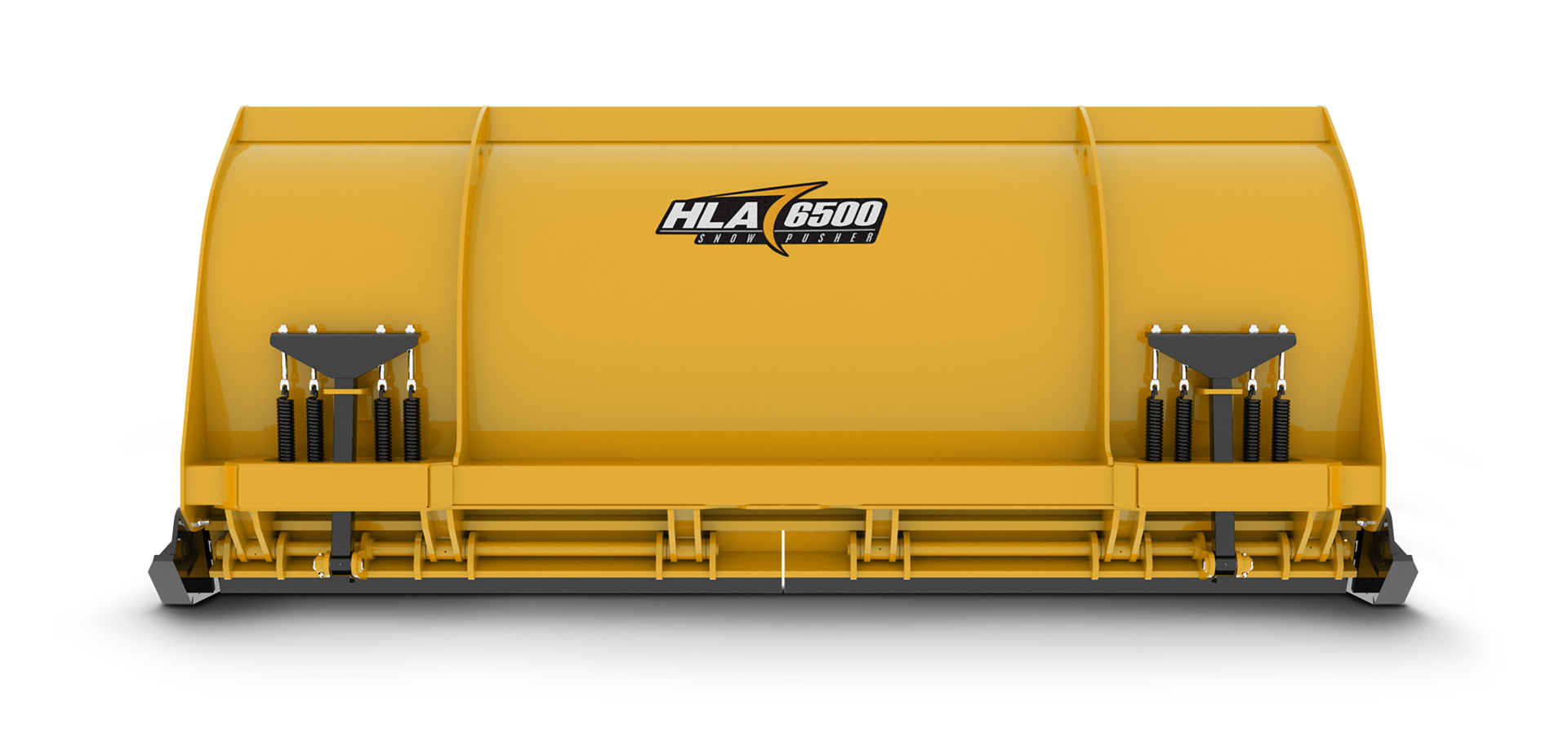

6500 SnowPusher
The 6500 Series Snow Pusher is sized for wheel loaders from 35,000 to 60,000 lbs. operating weight. With 48” deep end plates, this pusher is ideal for large volume commercial snow clearing.
About the 6500 SnowPusher
Supplied new through Valtek
The 6500 Series Snow Pusher is sized for wheel loaders from 35,000 to 60,000 lbs. operating weight. With 48” deep end plates, this pusher is ideal for large volume commercial snow clearing.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 6500 SnowPusher and its mount to it and price it out.
Features
- 2 Year Warranty: Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
- Double Sidewall: Welded double sidewalls eliminates bulky braces and reduces material build-up, leaving only smooth clean lines inside.
- Replaceable, Reversible Cutting Edge: Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
- High Tensile AR400 Adjustable Steel Skidbars: AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.
- Spring Trip Cutting Edge: Allows cutting edge to trip back if struck by hidden object limiting damage.
Options
- AR400 Large Pad Skid Shoe: Large pad style skid shoes for better floatation on soft surfaces NOTE: Available on non Edge Flex models.
- Carbide Cutting Edges: Carbide edges are designed for heavy commercial use. This non-reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
- Rubber Cutting Edge: The optional rubber cutting edge is available for select models.
- Cast Highway Skid Shoes: Optional on 4500, 5500, 5505, and 6500 snow pushers without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
- Snowblade Marker: Add this to your blade for better visibility and blade position awareness.
- Lateral Float: Allows blade to follow ground contours for better clearing performance.
- Edge Flex Models: Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
Specifications
6500 SnowPusher sizes and part numbers
| Part # | Cutting Edge | Approx. Weight (LBS.) | Depth | Length | Mouldboard Height | Max Operating Weight (LBS.) |
|---|---|---|---|---|---|---|
| SP650010 | Standard | 2,920 | 48" | 120" | 53" | 60,000 |
| SP6500EF210 | Edge Flex | 2,990 | 48" | 120" | 53" | 60,000 |
| SP650012 | Standard | 3,230 | 48" | 144" | 53" | 60,000 |
| SP6500EF212 | Edge Flex | 3,315 | 48" | 144" | 53" | 60,000 |
| SP6500EF214 | Edge Flex | 3,650 | 48" | 168" | 53" | 60,000 |
| SP650014 | Standard | 3,545 | 48" | 168" | 53" | 60,000 |
| SP650016 | Standard | 3,940 | 48" | 192" | 53" | 60,000 |
| SP6500EF216 | Edge Flex | 4,050 | 48" | 192" | 53" | 60,000 |
| SP650018 | Standard | 4,260 | 48" | 216" | 53" | 60,000 |
| SP6500EF218 | Edge Flex | 4,390 | 48" | 216" | 53" | 60,000 |
| SP650020 | Standard | 4,825 | 48" | 240" | 53" | 60,000 |
| SP6500EF220 | Edge Flex | 4,970 | 48" | 240" | 53" | 60,000 |
Price: Call for pricing
See the 6500 SnowPusher at Work
HLA videos
Get a price on the 6500 SnowPusher
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
