HLA ATTACHMENTS
3530W SnowPusher
The 3530W Series SnowPusher is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight.
About the 3530W SnowPusher
Supplied new through Valtek
The 3530W Series SnowPusher is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, this pusher is ideal for both containment pushing, and back dragging in the reverse-box position.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 3530W SnowPusher and its mount to it and price it out.
Features
- 2 Year Warranty: Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
- Lateral Float: Allows blade to follow ground contours for better clearing performance.
- Replaceable, Reversible Cutting Edge: Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life. Note: Replace endcaps along with cutting edges to prevent streaming. Currently not available on wings. (non Edge Flex only)
- Adjustable Skid Shoes: Allows you to set cutting depth for optimum performance and prolonged cutting edge life.
- Rotary Actuators - PATENTED: These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place.
- Spring Trip Cutting Edge: Allows cutting edge to trip back if struck by hidden object limiting damage.
- Single Electric Selector Valve: Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.
Options
- Carbide Cutting Edges: Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
- Rubber Cutting Edge: The optional rubber cutting edge is available for select models.
- Snowblade Marker: Add this to your blade for better visibility and blade position awareness.
- Edge Flex Models: Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
- Curb Runner: The optional Curb Runner runs along the front face of the curb, preventing the edge of the wing from catching on any edges.
Specifications
3530W SnowPusher sizes and part numbers
| Part # | Cutting Edge | Approx. Weight (LBS.) | Length (Closed / Open) | Mouldboard Height | Max Operating Weight (LBS.) |
|---|---|---|---|---|---|
| SP3530W611 | Standard | 1,185 | 72" / 132" | 30" | 13,000 |
| SP3530WEF2611 | Edge Flex | 1,240 | 72" / 132" | 30" | 13,000 |
| SP3530W712 | Standard | 1,260 | 84" / 144" | 30" | 13,000 |
| SP3530WEF2712 | Edge Flex | 1,335 | 84" / 144" | 30" | 13,000 |
| SP3530W813 | Standard | 1,340 | 96" / 156" | 30" | 13,000 |
| SP3530WEF2813 | Edge Flex | 1,425 | 96" / 156" | 30" | 13,000 |
| SP3530W914 | Standard | 1,410 | 108" / 168" | 30" | 13,000 |
| SP3530WEF2914 | Edge Flex | 1,515 | 108" / 168" | 30" | 13,000 |
| SP3530W1015 | Standard | 1,485 | 120" / 180" | 30" | 13,000 |
| SP3530WEF21015 | Standard | 1,605 | 120" / 180" | 30" | 13,000 |
Price: Call for pricing

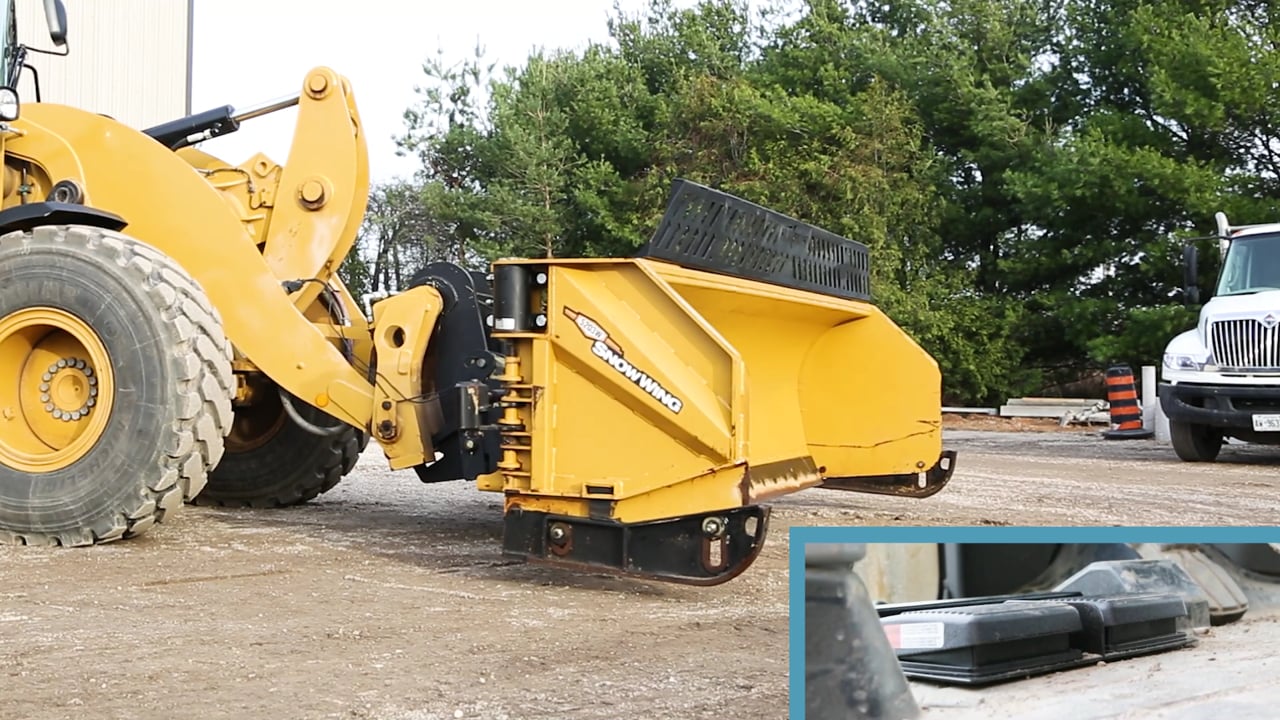

See the 3530W SnowPusher at Work
HLA videos
Get a price on the 3530W SnowPusher
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
