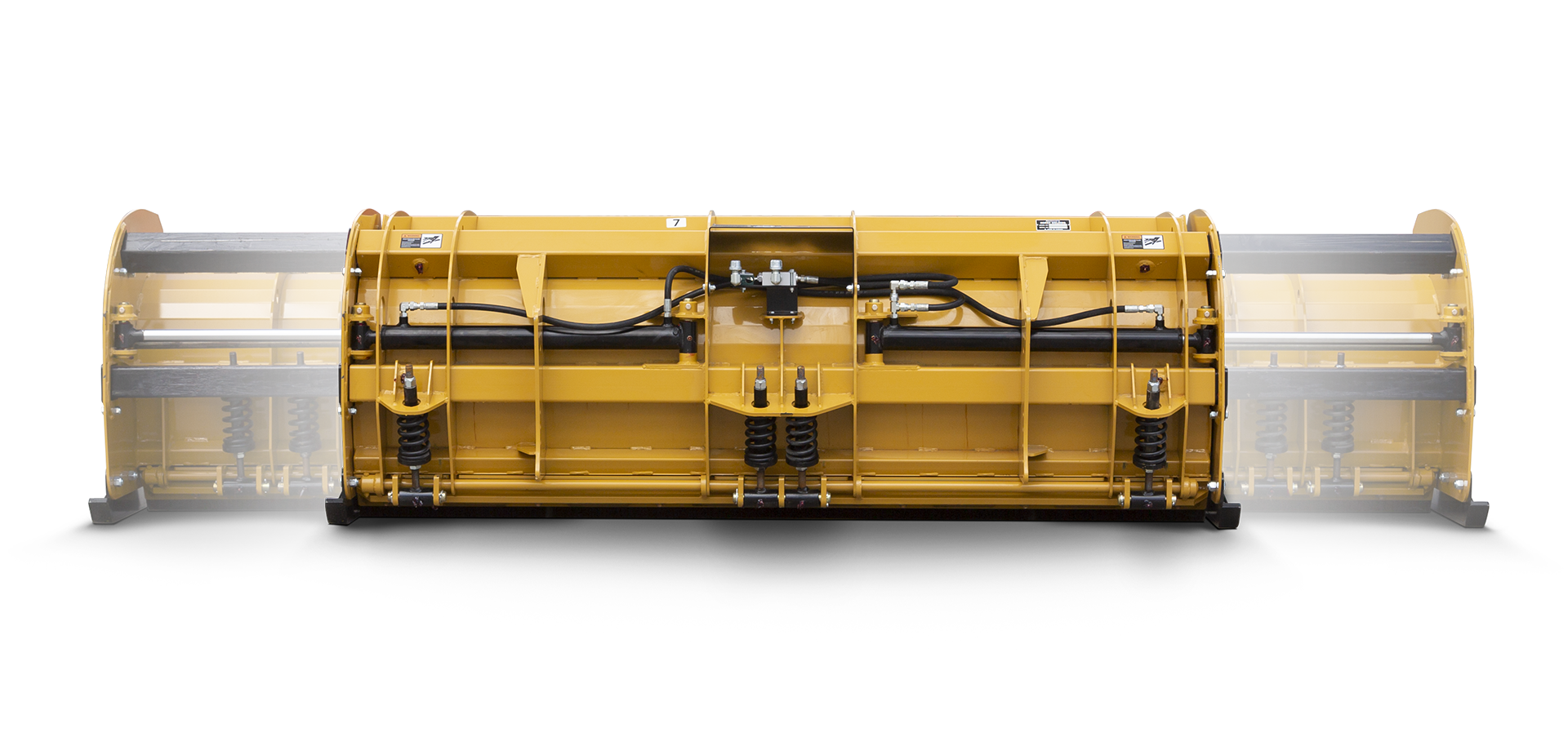

3500X SnowPusher
The 3500X Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 6,000 to 10,000 lbs. operating weight.
About the 3500X SnowPusher
The 3500X Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 6,000 to 10,000 lbs. operating weight. With a hydraulic activated expandable mouldboard, this pusher is ideal for commercial snow clearing where tight quarters call for infinite width adjustment to get the job done.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 3500X SnowPusher and its mount to it and price it out.
Features
- 2 Year Warranty: Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
- Expandable Pusher: The pusher is able to expand and contract to either increase or decrease the clearing width of the pusher, giving you more control over where you use it.
- Flow Divider Valve: Ensures balanced left and right cylinder performance on the inner mouldboard when changing clearing width.
- Spring Trip Cutting Edge: Allows cutting edge to trip back if struck by hidden object limiting damage.
- Compression Springs for Trip: The compression springs for trip can be adjusted for tension.
- High Tensile AR400 Adjustable Steel Skidbars: AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.
- Built In Back Drag: Equipped with a built in back drag, this feature is ideal for back dragging away from doors and loading docks for an even cleaner finish.
- Inner Mouldboard: The inner mouldboard slides on the support shaft, and hydraulically expand up to 48" wider from closed position.
Options
- Rubber Cutting Edge: The optional rubber cutting edge is available for select models.
- Snowblade Marker: Add this to your blade for better visibility and blade position awareness.
Specifications
| Part # | Approx. Weight (LBS.) | Length (Closed / Open) | Mouldboard Height | Fixed End Plate Depth | Max Operating Weight (LBS.) |
|---|---|---|---|---|---|
| SP3500X610 | 1,355 | 72" / 120" | 24" | 16" | 10,000 |
| SP3500X711 | 1,435 | 84" / 132" | 24" | 16" | 10,000 |
| SP3500X812 | 1,520 | 96" / 144" | 24" | 16" | 10,000 |
Price: Call for pricing

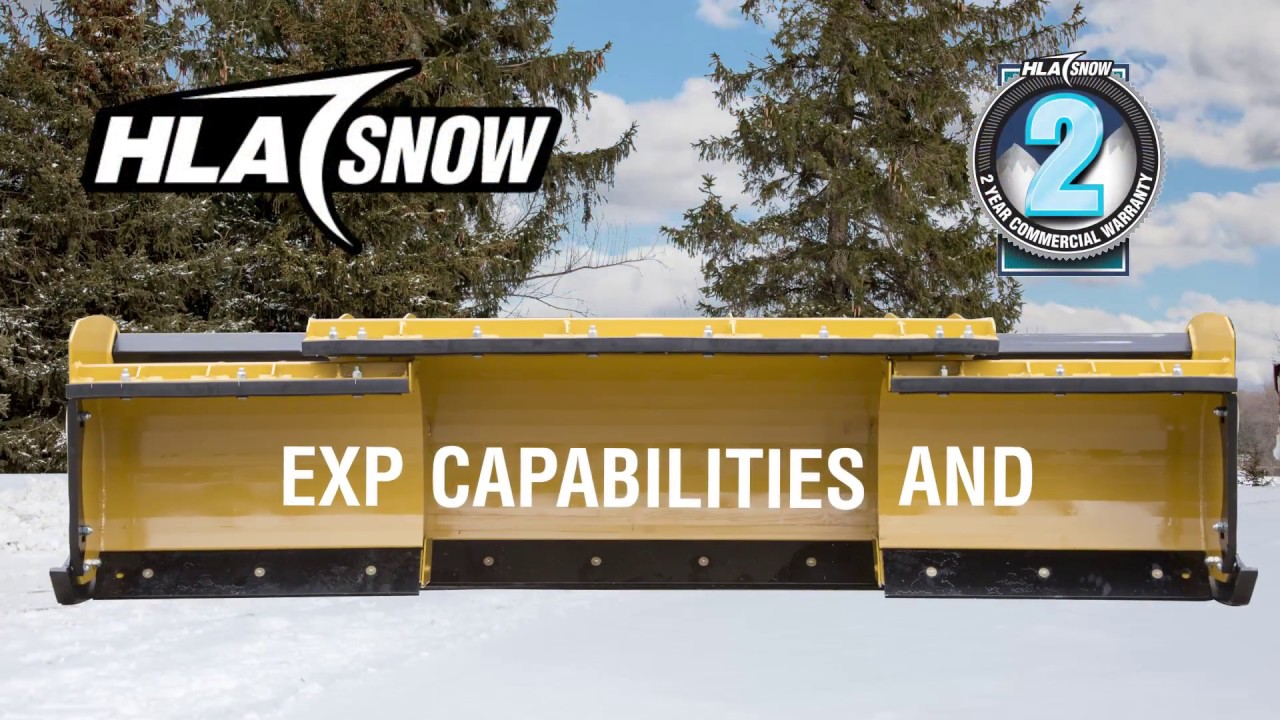

See the 3500X SnowPusher at Work
Get a price on the 3500X SnowPusher
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
