HLA ATTACHMENTS

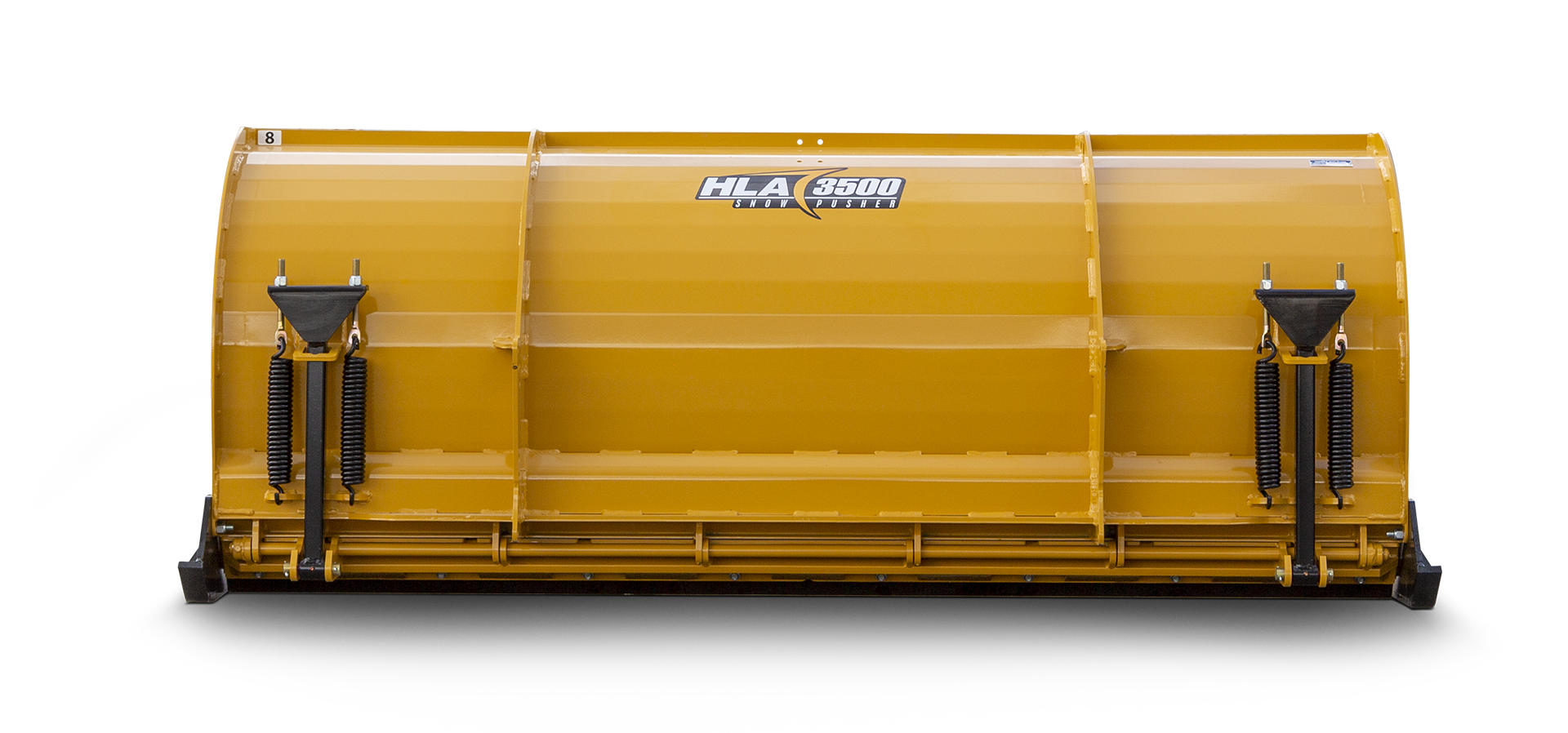

3500 SnowPusher
The 3500 Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 5,500 to 15,000 lbs. operating weight.
About the 3500 SnowPusher
Supplied new through Valtek
The 3500 Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 5,500 to 15,000 lbs. operating weight. This pusher is ideal for agricultural property maintenance and commercial snow clearing alike.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 3500 SnowPusher and its mount to it and price it out.
Features
- 2 Year Warranty: Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
- Replaceable, Reversible Cutting Edge: Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
- Double Sidewall: Welded double sidewalls eliminates bulky braces and reduces material build-up, leaving only smooth clean lines inside.
- High Tensile AR400 Adjustable Steel Skidbars: AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.
- Spring Trip Cutting Edge: Allows cutting edge to trip back if struck by hidden object limiting damage.
Options
- Carbide Cutting Edges: Carbide edges are designed for heavy commercial use. This non-reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
- Back Drag: Equipped with a steel edge on the back drag, this option is ideal for back dragging away from doors and loading docks for an even cleaner finish. Edges are drilled for either rubber or steel optional bolt-on cutting edges.
- 3PH Rear Pull Mount: Ideal for cleaning away from doors and loading docks, utilize your pusher as a pull unit.
- Lateral Float: Allows blade to follow ground contours for better clearing performance.
- Snowblade Marker: Add this to your blade for better visibility and blade position awareness.
- Poly Bolt-On Endplate Runner: Recommended for use with the rubber cutting edge option, helps prevent surface damage.
- Rubber Cutting Edge: The optional rubber cutting edge is available for select models. Standard on SP3500R models.
- Edge Flex Models: Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
Specifications
3500 SnowPusher sizes and part numbers
| Part # | Cutting Edge | Approx. Weight (LBS.) | Depth | Length | Mouldboard Height | Max Operating Weight (LBS.) |
|---|---|---|---|---|---|---|
| SP350007 | Steel | 985 | 36" | 84" | 38" | 15,000 |
| SP3500R07 | Rubber | 985 | 36" | 84" | 38" | 15,000 |
| SP3500EF207 | Edge Flex | 1,120 | 36" | 84" | 38" | 15,000 |
| SP350008 | Steel | 1,055 | 36" | 96" | 38" | 15,000 |
| SP3500R08 | Rubber | 1,055 | 36" | 96" | 38" | 15,000 |
| SP3500EF208 | Edge Flex | 1,210 | 36" | 96" | 38" | 15,000 |
| SP350009 | Steel | 1,130 | 36" | 108" | 38" | 15,000 |
| SP3500R09 | Rubber | 1,130 | 36" | 108" | 38" | 15,000 |
| SP3500EF209 | Edge Flex | 1,305 | 36" | 108" | 38" | 15,000 |
| SP350010 | Steel | 1,200 | 36" | 120" | 38" | 15,000 |
| SP3500R10 | Rubber | 1,200 | 36" | 120" | 38" | 15,000 |
| SP3500EF210 | Edge Flex | 1,390 | 36" | 120" | 38" | 15,000 |
| SP350012 | Steel | 1,370 | 36" | 144" | 38" | 15,000 |
| SP3500R12 | Rubber | 1,370 | 36" | 144" | 38" | 15,000 |
| SP3500EF212 | Edge Flex | 1,595 | 36" | 144" | 38" | 15,000 |
Price: Call for pricing
See the 3500 SnowPusher at Work
HLA videos
Get a price on the 3500 SnowPusher
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
