HS100
The HS100 is sized for medium to full size skid steers, compact wheel loaders and ag tractor loaders.
About the HS100
The HS100 is sized for medium to full size skid steers, compact wheel loaders and ag tractor loaders. With a single hydraulic drive stainless steel spinner, and self-loading features, this salt spreader is an ideal ice management solution that can utilize the power unit already onsite for snow plowing. Also available in 3-Point-Hitch and PTO drive configurations to be used on compact tractors.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the HS100 and its mount to it and price it out.
Features
- Stainless Steel Spinners: The six vane stainless steel spinners spread the material from the hopper.
- Spinner Speed Control: The speed control adjusts the speed of the spinners, affecting the broadcast distance to suit your needs.
- Manual Flow Rate Adjustment Slider: These sliders allow for the manual adjustment of material flowing from the hopper.
- Floating Agitator: The floating agitators reduce bridging, ensuring that a consistent flow of material is broadcasted.
- 13" Quick Attach Spacer Included with Skid Steer: The 13" Quick Attach Spacer included with Skid Steer Kit increases the amount of space between the skid loader and the ScatterShot allowing the operator to easily get in and out of the skid loader while the ScatterShot is still attached.
- Fully Galvanized: Each ScatterShot body and frame is fully hot dipped galvanized to ensure the longevity of our broadcast spreaders.
- Includes Hydraulic Hoses and Couplers
Options
- Hydraulic Shut-Off Gate: Using the hydraulic controls, shut off the flow of material to stop broadcasting.
- Drop Spreading Shield - 36" Wide: Reducing the amount of sand or salt landing on undesired locations, the drop shield limits the Scattershot spread to the width of a sidewalk.
- Hopper Cover - Black Vinyl with Draw String: Ensures minimal loss of material during transport and keeps snow and rain out of the hopper.
Specifications
| Model | Self Loading | Capacity | Spread Width | Width | Height | Depth | Weight (lbs.) | Hydraulic (2000-3000 PSI) |
|---|---|---|---|---|---|---|---|---|
| HS100 Skidsteer/Loader | Yes | 1/2 cu yd | Up to 40' | 48" | 44" | 36" | 445 | 5-20 GPM |
| HS1003PHC1 Hydraulic Drive, CAT 1 3PH | No | 1/2 cu yd | Up to 40' | 48" | 44" | 36" | 410 | 5-20 GPM |
| HS100PTO3PHC1 PTO Drive, CAT 1 3PH | No | 1/2 cu yd | Up to 40' | 48" | 44" | 36" | 420 | N/A |
| HS100H3PHC1 * Hydraulic Drive, CAT 1 3PH, Hydraulic Tilt | Yes | 1/2 cu yd | Up to 40' | 48" | 44" | 36" | 505 | 5-20 GPM |
Price: Call for pricing

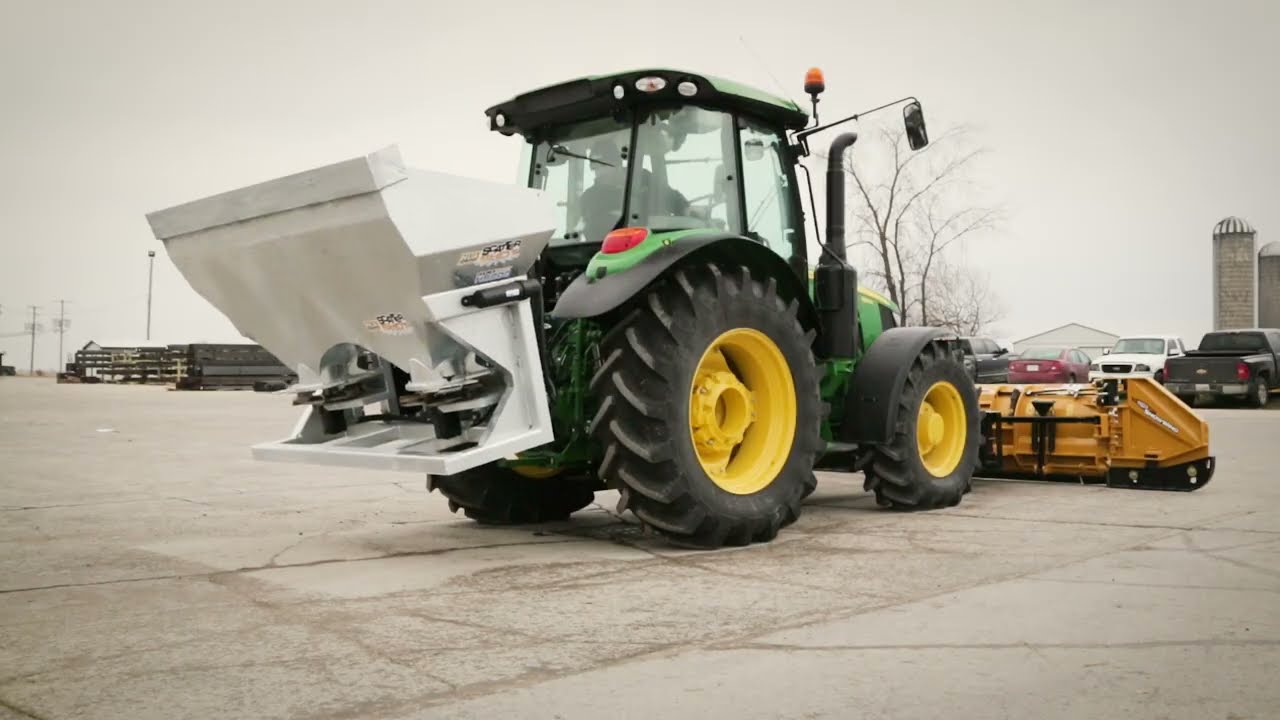

See the HS100 at Work
Get a price on the HS100
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
