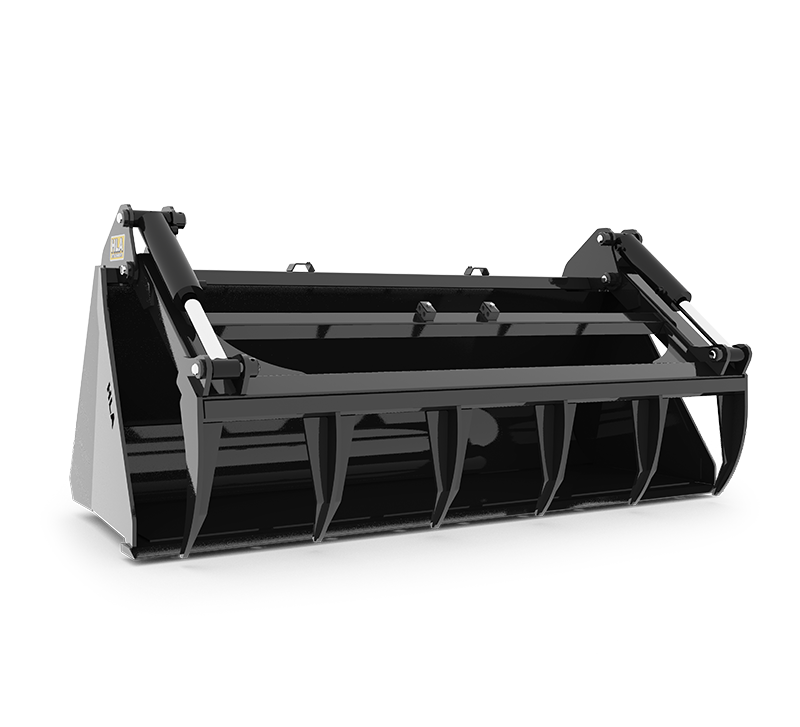

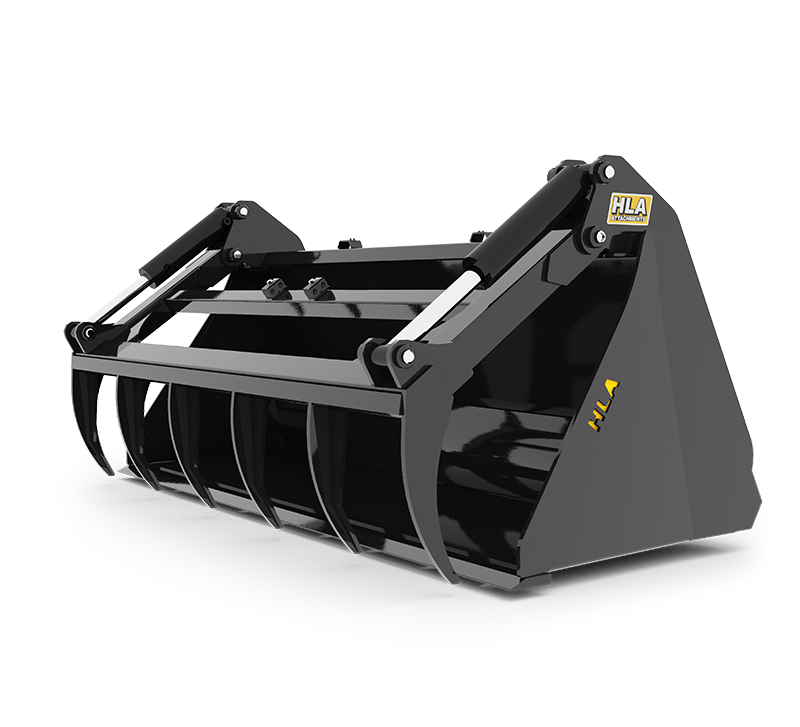

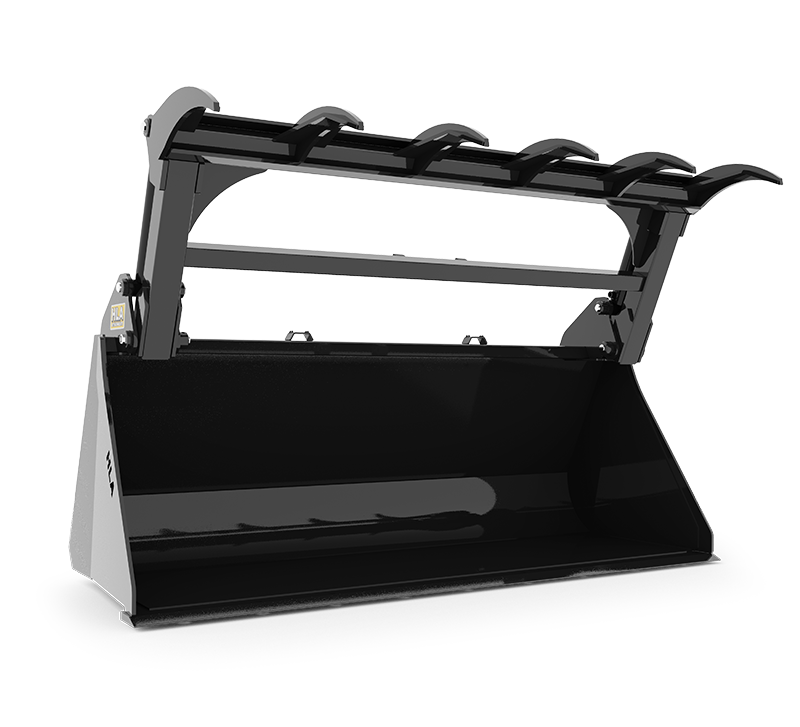

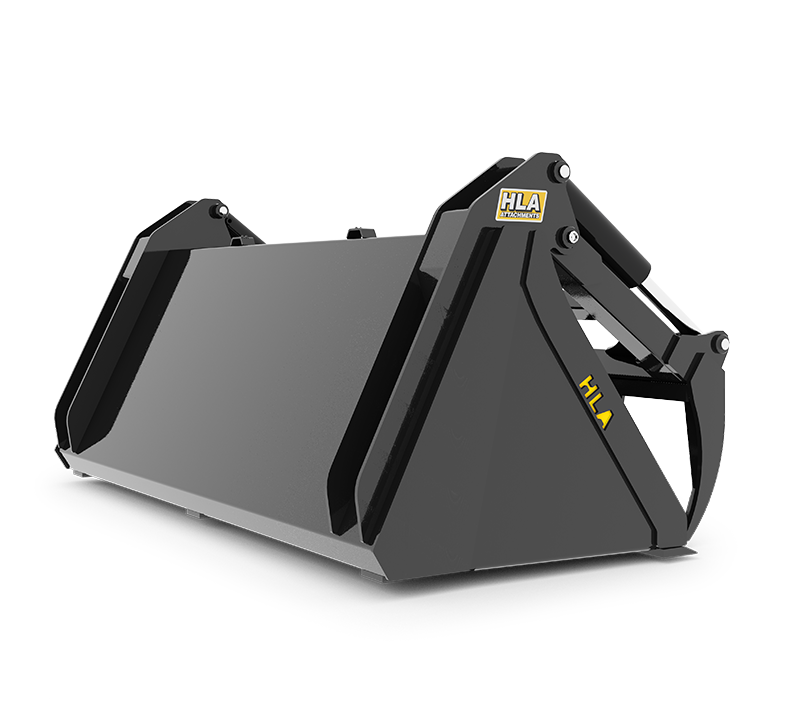

Standard Skidsteer Bucket & Skidsteer Grapple
The HLA Standard Skidsteer Bucket & Skidsteer Grapple is part of the HLA Grapples line, built by Horst Welding in Listowel, Ontario. The range covers 7 sizes and part numbers — see the specifications below.
About the Standard Skidsteer Bucket & Skidsteer Grapple
The Standard Skidsteer Bucket & Skidsteer Grapple (SB66GRS60) is built by Horst Welding in Listowel, Ontario. It is offered in 7 part numbers, covering the sizes in the specifications table below. Factory options are listed in the table as well.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Standard Skidsteer Bucket & Skidsteer Grapple and its mount to it and price it out.
Features
- Designed for use on skidsteers with limited clearance for grapple arms
- Comes with 2-1/2" x 8" cylinders
- Opens to 45"
Specifications
| Part Number | Description | APPROX. WEIGHT LBS. |
|---|---|---|
| SB66GRS60 | 66" RD Standard Skidsteer Bucket & GRS60 Grapple | 790 |
| SB72GRS66 | 72" RD Standard Skidsteer Bucket & GRS66 Grapple | 820 |
| SB84GRS72 | 84" RD Standard Skidsteer Bucket & GRS72 Grapple | 900 |
| SB96GRS84 | 96" RD Standard Skidsteer Bucket & GRS84 Grapple | 990 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers | |
| HK9090 | Optional 90" Hose Kit c/w 90° Flat Faced Couplers | |
| SHMK | Optional Spring Hose Mount Kit |
Price: Call for pricing
Get a price on the Standard Skidsteer Bucket & Skidsteer Grapple
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
