HLA ATTACHMENTS

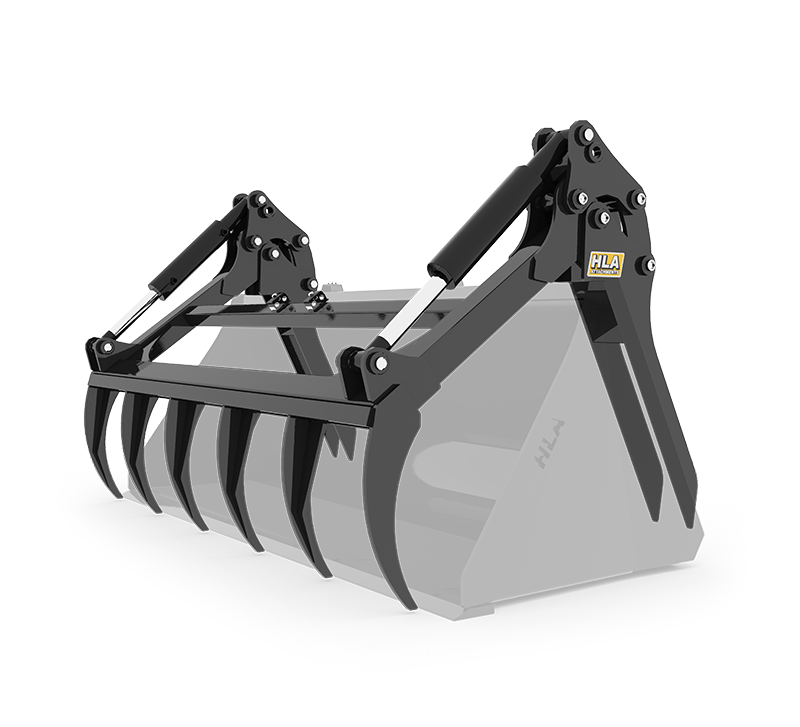

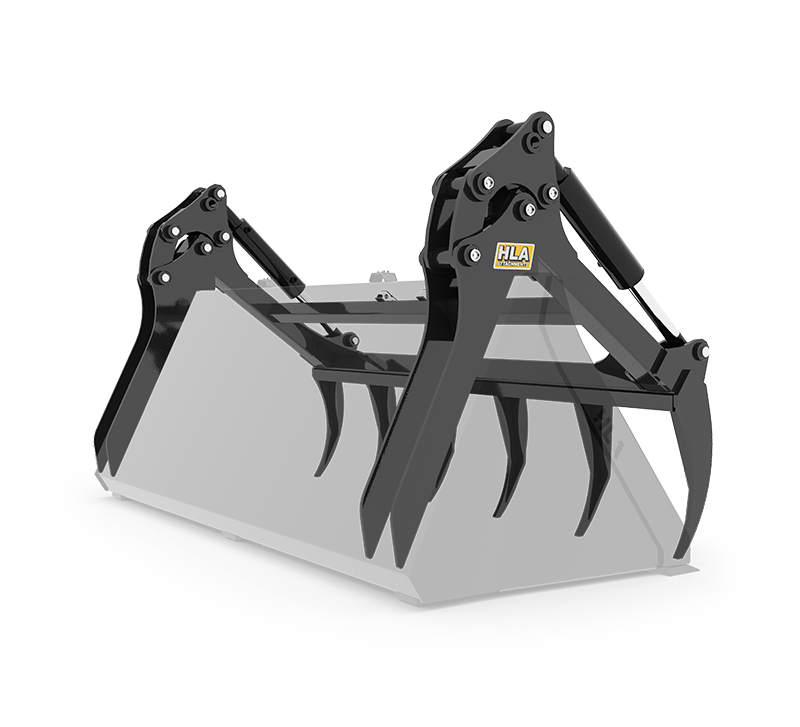

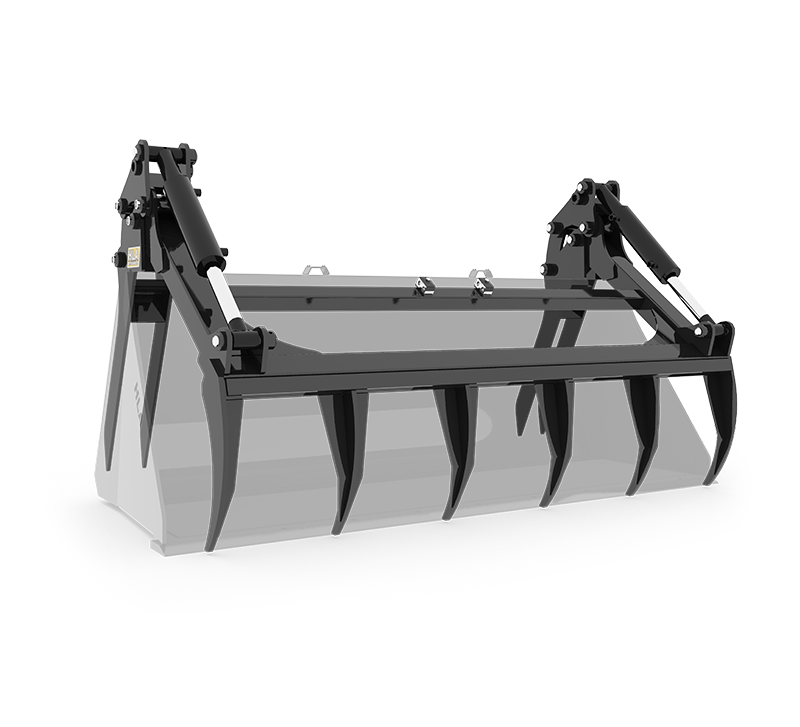

Regular Utility Grapple
The HLA Regular Utility Grapple is part of the HLA Grapples line, built by Horst Welding in Listowel, Ontario. The range covers 5 sizes and part numbers — see the specifications below.
About the Regular Utility Grapple
Supplied new through Valtek
The Regular Utility Grapple (GR66) is built by Horst Welding in Listowel, Ontario. It is offered in 5 part numbers, covering the sizes in the specifications table below. Factory options are listed in the table as well.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Regular Utility Grapple and its mount to it and price it out.
Features
- Can be fitted to models SB, SBHV, MB, MBHV, MFE, & SFR
- Accommodates 4ft round bales
- Works equally well on other materials such as manure, etc.

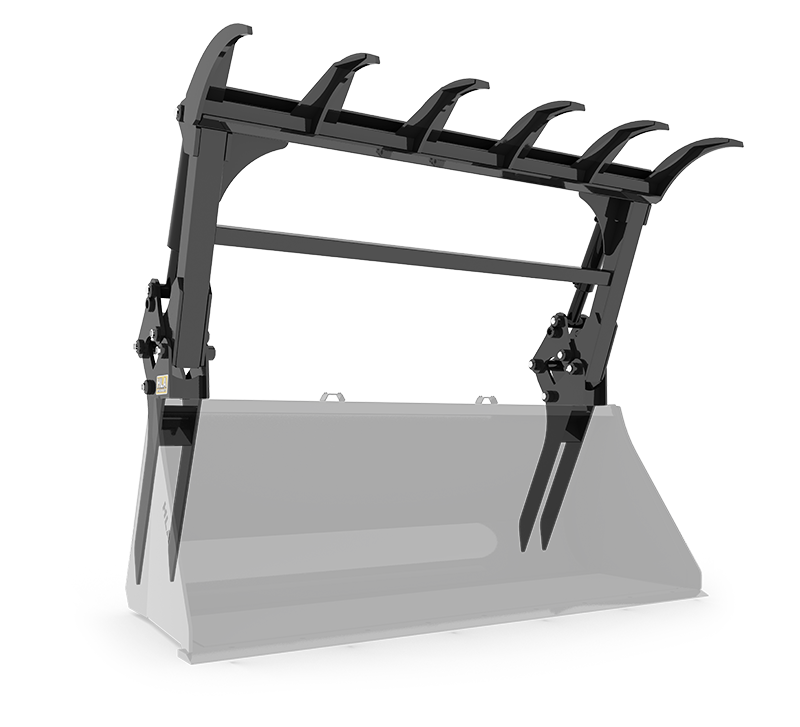

- Opens up to 70"
- Available for 72", 84", and 96" forks and buckets
- Comes with cylinders
Specifications
Regular Utility Grapple sizes and part numbers
| Part Number | Description | WIDTH INCHES | APPROX. WEIGHT LBS. |
|---|---|---|---|
| GR66 | 66" Grapple Only To Fit 72" Fork Or Bucket c/w Cylinders | 66 | 475 |
| GR72 | 72" Grapple Only To Fit 84" Fork Or Bucket c/w Cylinders | 72 | 490 |
| GR84 | 84" Grapple Only To Fit 96" Fork Or Bucket c/w Cylinders | 84 | 515 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers | ||
| HK9090 | Optional 90" Hose Kit c/w 90° Flat Faced Couplers |
Price: Call for pricing
Get a price on the Regular Utility Grapple
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
