HLA ATTACHMENTS

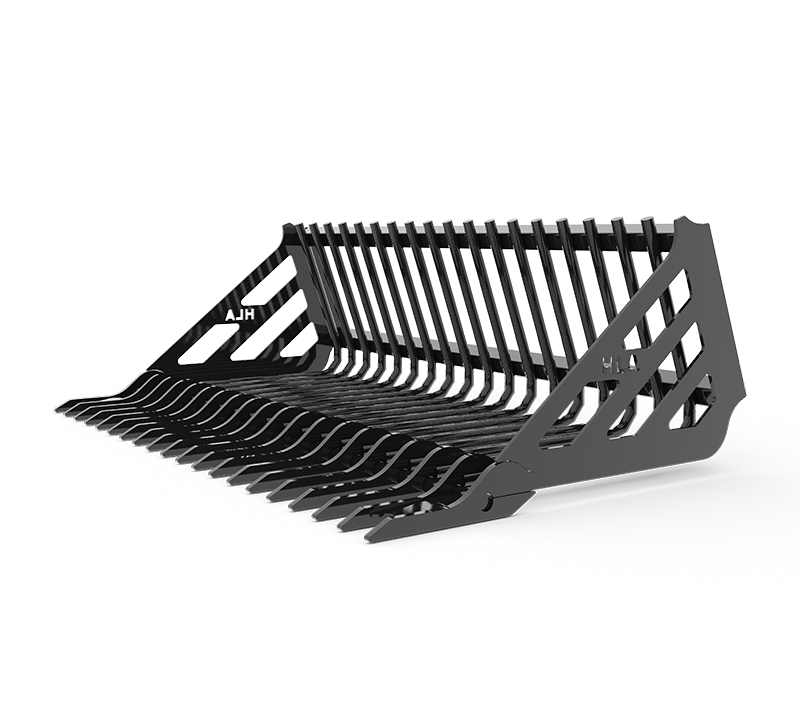

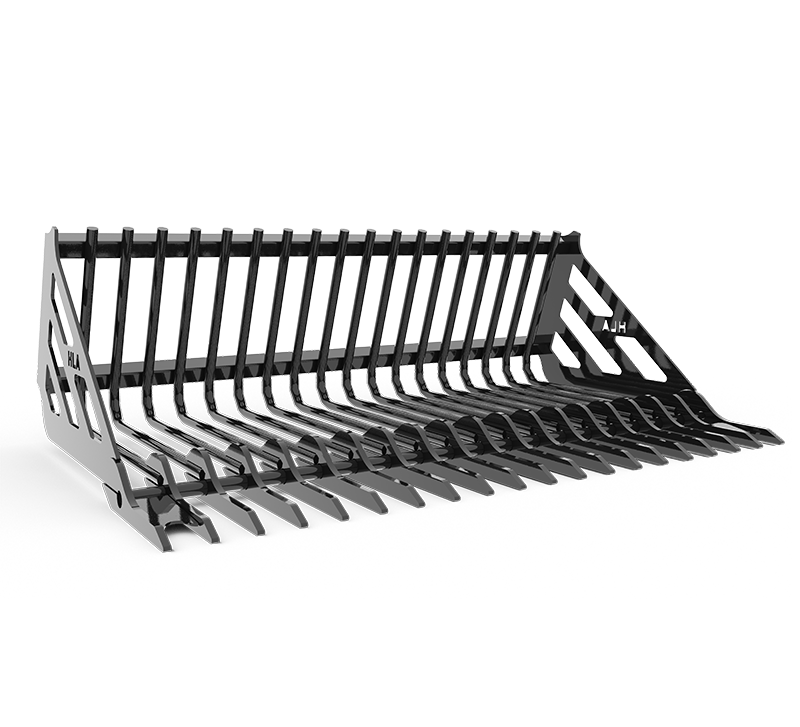

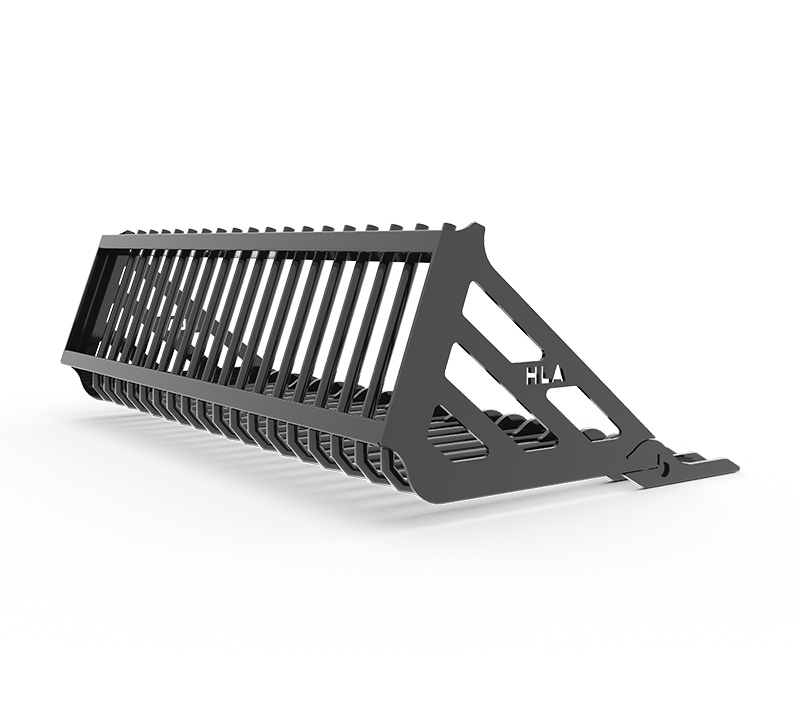

Stone Fork (Retainer Style Tine) REGULAR DUTY
The HLA Stone Fork (Retainer Style Tine) REGULAR DUTY is part of the HLA Pallet Forks line, built by Horst Welding in Listowel, Ontario. The range covers 6 sizes and part numbers — see the specifications below.
About the Stone Fork (Retainer Style Tine) REGULAR DUTY
Supplied new through Valtek
The Stone Fork (Retainer Style Tine) REGULAR DUTY (SFR55) is built by Horst Welding in Listowel, Ontario. It is offered in 6 part numbers, covering the sizes in the specifications table below.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Stone Fork (Retainer Style Tine) REGULAR DUTY and its mount to it and price it out.
Features
- REGULAR DUTY
- Tines are 1-¼" in diameter
- 2-½" spacing between tines
- Points are 5/8" thick, 400 Brinell high strength steel
- 23" high
- 40" deep
- 5500 lbs capacity
Specifications
Stone Fork (Retainer Style Tine) REGULAR DUTY sizes and part numbers
| Part Number | Description | APPROX. WEIGHT LBS. |
|---|---|---|
| SFR55 | 55" Stone Fork ( Retainer Style Tines) | 570 |
| SFR62 | 62" Stone Fork ( Retainer Style Tines) | 630 |
| SFR70 | 70" Stone Fork ( Retainer Style Tines) | 690 |
| SFR77 | 77" Stone Fork ( Retainer Style Tines) | 745 |
| SFR84 | 84" Stone Fork ( Retainer Style Tines) | 805 |
| SFR92 | 92" Stone Fork ( Retainer Style Tines) | 865 |
Price: Call for pricing

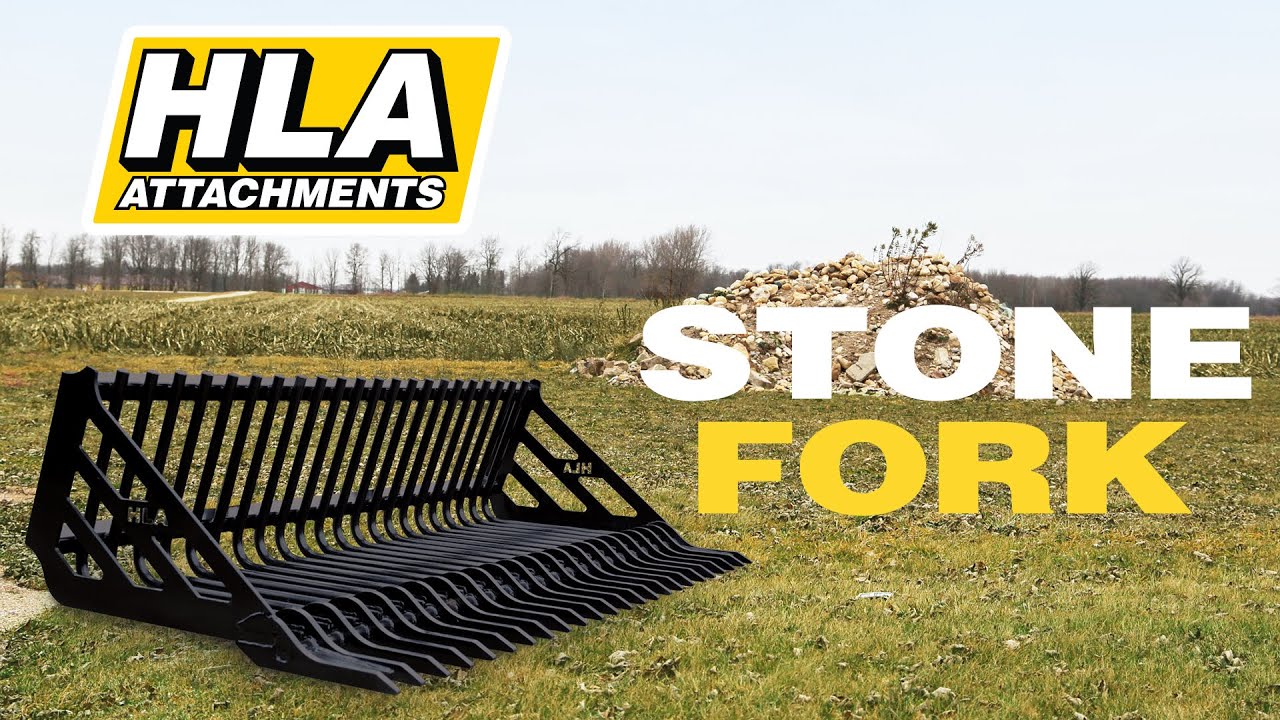

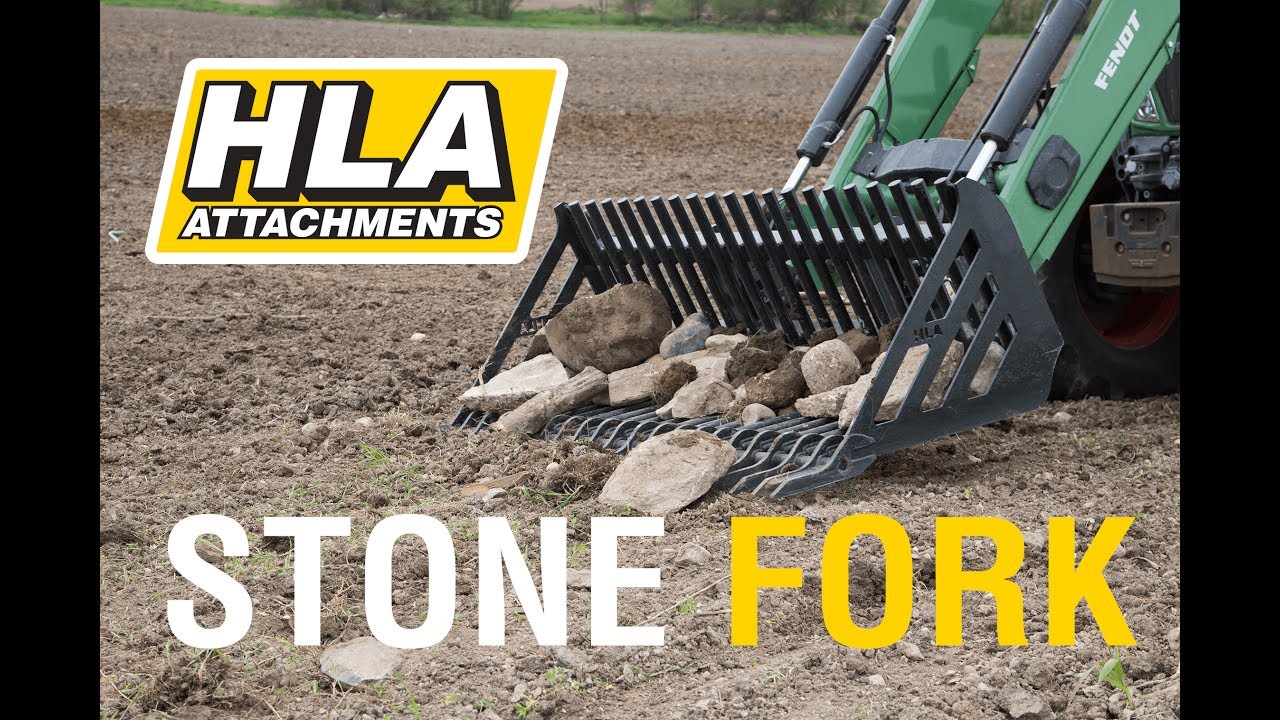

See the Stone Fork (Retainer Style Tine) REGULAR DUTY at Work
