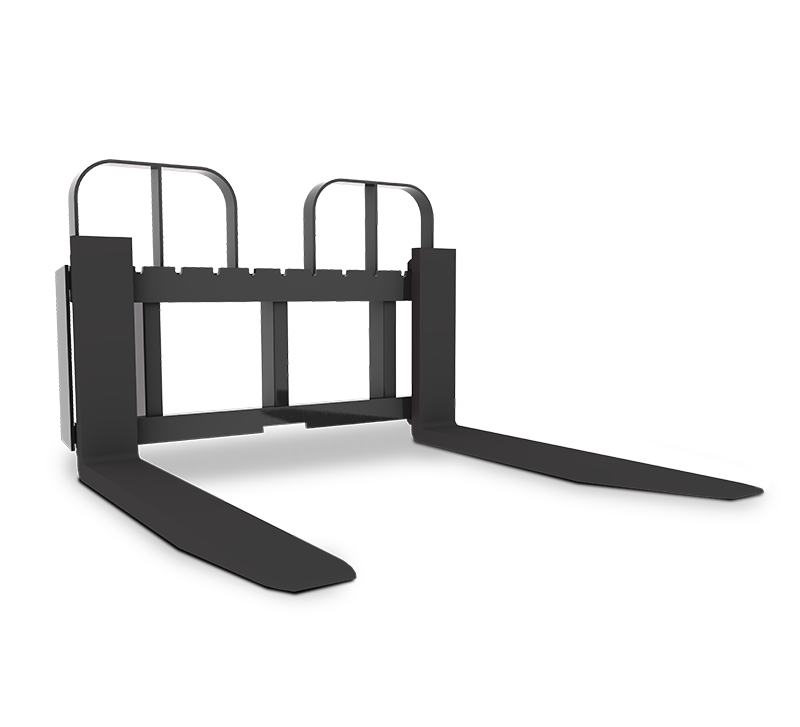

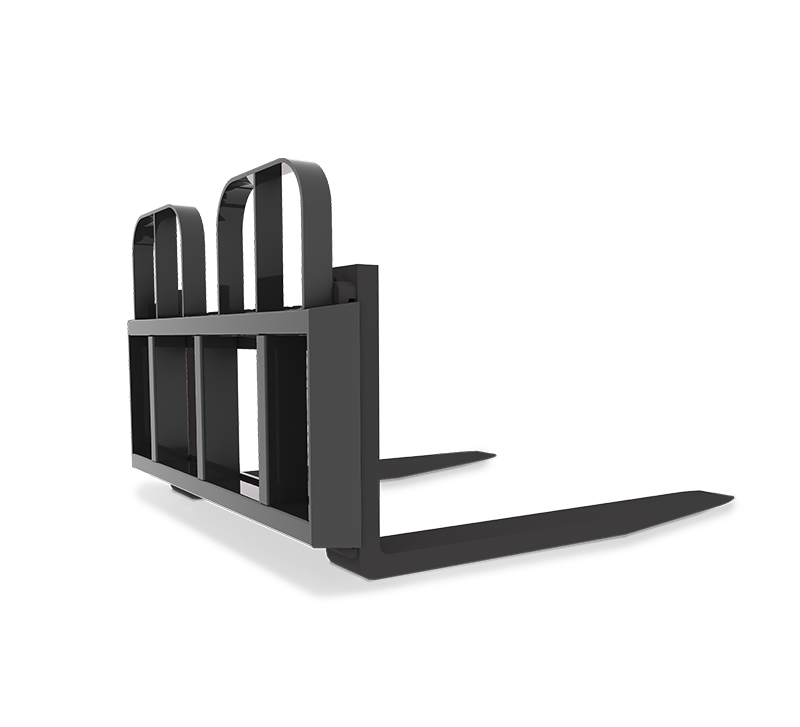

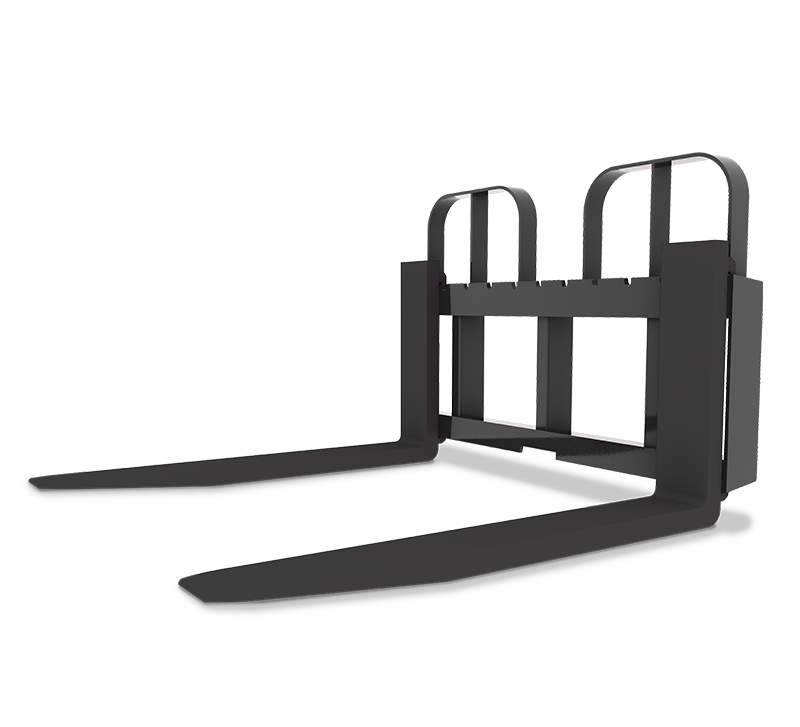

10,000 LB Cap. - Heavy Duty Pallet Fork
The HLA 10,000 LB Cap. - Heavy Duty Pallet Fork is part of the HLA Pallet Forks line, built by Horst Welding in Listowel, Ontario. The range covers 6 sizes and part numbers — see the specifications below.
About the 10,000 LB Cap. - Heavy Duty Pallet Fork
The 10,000 LB Cap. - Heavy Duty Pallet Fork (HD10048) is built by Horst Welding in Listowel, Ontario. It is offered in 6 part numbers, covering the sizes in the specifications table below. Factory options are listed in the table as well.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the 10,000 LB Cap. - Heavy Duty Pallet Fork and its mount to it and price it out.
Features
- 2" x 6" Class III hook type solid fork lift tines
- 10,000 lbs capacity @ 24" L.C.
- Incl. guard
- 50" wide carriage
- Sliding adjustable tines can be locked in any position
- OPTIONAL - Full back guard (Brick Guard)
Specifications
| Part Number | Description | TINE LENGTH | APPROX. WEIGHT LBS. |
|---|---|---|---|
| HD10048 | Heavy Duty Pallet Fork c/w Guard - 48" Tines | 48" | 690 |
| HD10054 | Heavy Duty Pallet Fork c/w Guard - 54" Tines | 54" | 735 |
| HD10060 | Heavy Duty Pallet Fork c/w Guard - 60" Tines | 60" | 770 |
| HD10072 | Heavy Duty Pallet Fork c/w Guard - 72" Tines | 72" | 840 |
| HD100 | Carriage Only c/w Guard Less Tines | ||
| HD100BG | Optional - Full Back Guard Option (Brick Guard) |
Price: Call for pricing
Get a price on the 10,000 LB Cap. - Heavy Duty Pallet Fork
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
