HLA ATTACHMENTS

Side Discharge Straw/Lime Bucket

The HLA Side Discharge Straw/Lime Bucket is part of the HLA Buckets line, built by Horst Welding in Listowel, Ontario. The range covers 8 sizes and part numbers — see the specifications below.

Request a Quote Call 705 971 9707

About the Side Discharge Straw/Lime Bucket

Supplied new through Valtek

The Side Discharge Straw/Lime Bucket (SST72) is built by Horst Welding in Listowel, Ontario. It is offered in 8 part numbers, covering the sizes in the specifications table below. Factory options are listed in the table as well.

New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Side Discharge Straw/Lime Bucket and its mount to it and price it out.

Features

Minimum 12 GPM required
Hydraulic drive (coupled direct)
Agitator prevents material bridging
Secondary metering drum regulates flow onto the belt
Mesh in back panel for increased visibility
12" wide high abrasion rubber belt with 1 ½" paddles
Discharge from either side of machine
Conveyor assembly removable for accessibility
Bolted adaptation for loader quick-tach. Easily convert to most loaders
59"H x 58"L outside dimensions
For Outside Width add 1-1/4" to Inside Width dimension

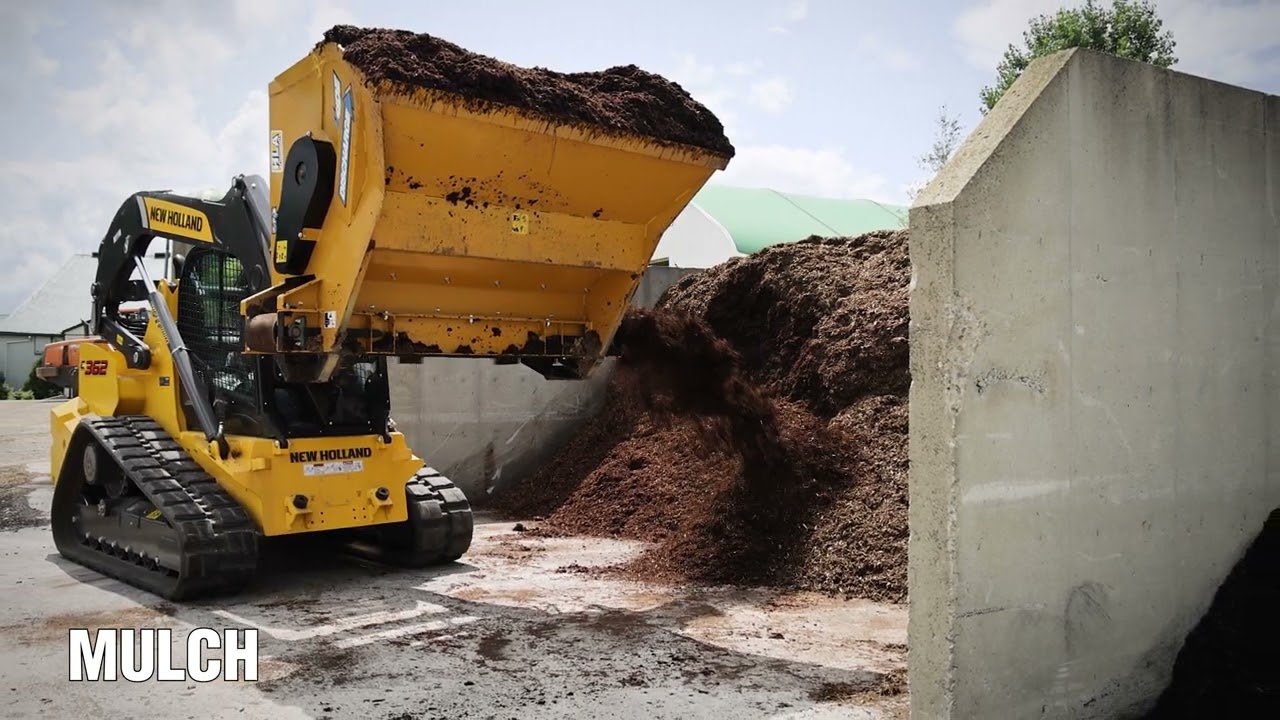

Mulch
Compost

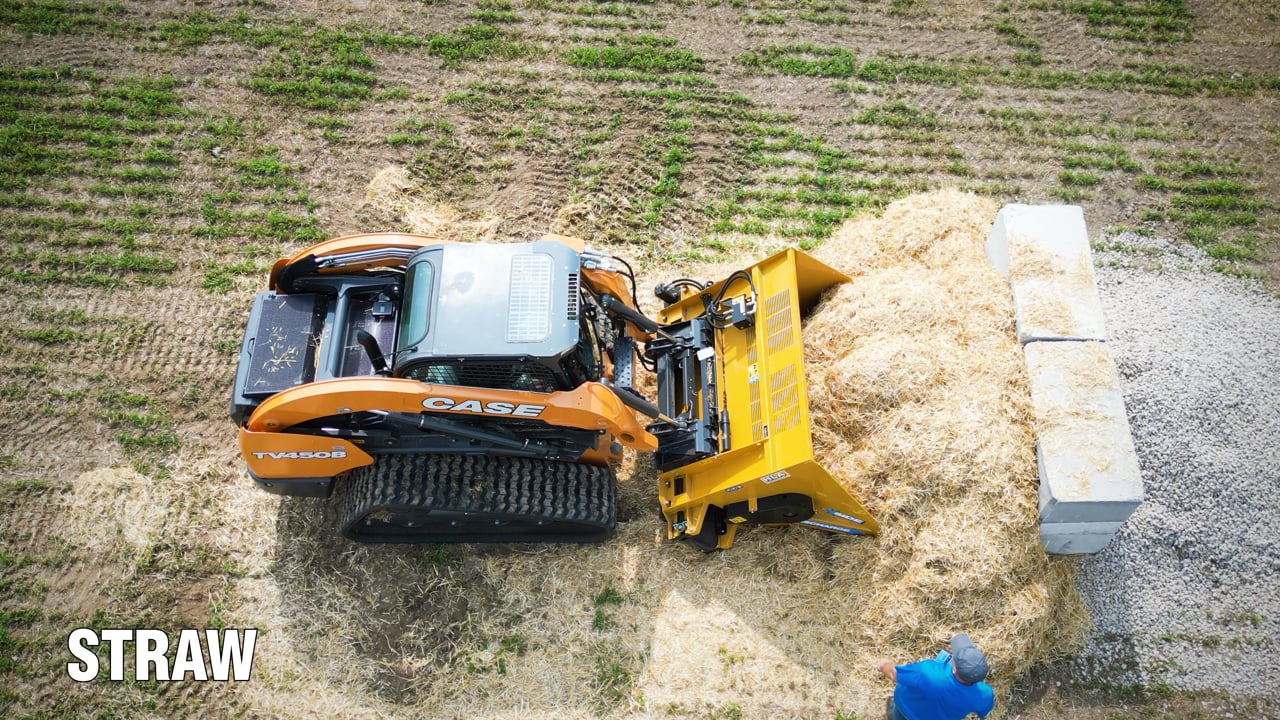

Straw

Specifications

Side Discharge Straw/Lime Bucket sizes and part numbers

Part Number	Description	Inside Width	Heaped Capacity (approx)	Weight in lbs
SST72	72" Side Discharge - Straw/Lime	72"	2 cu yd	1365
SST84	84" Side Discharge - Straw/Lime	84"	2-1/3 cu yd	1535
SST96	96" Side Discharge - Straw/Lime	96"	2-3/4 cu yd	1700
LP102468	Optional Agitator Speed Control Valve - Factory Installed Only
HK90	Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090	Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMK	Optional Spring Hose Mount Kit
	Optional CAT 2 Three Point Hitch Mount c/w Tilting Cylinder
