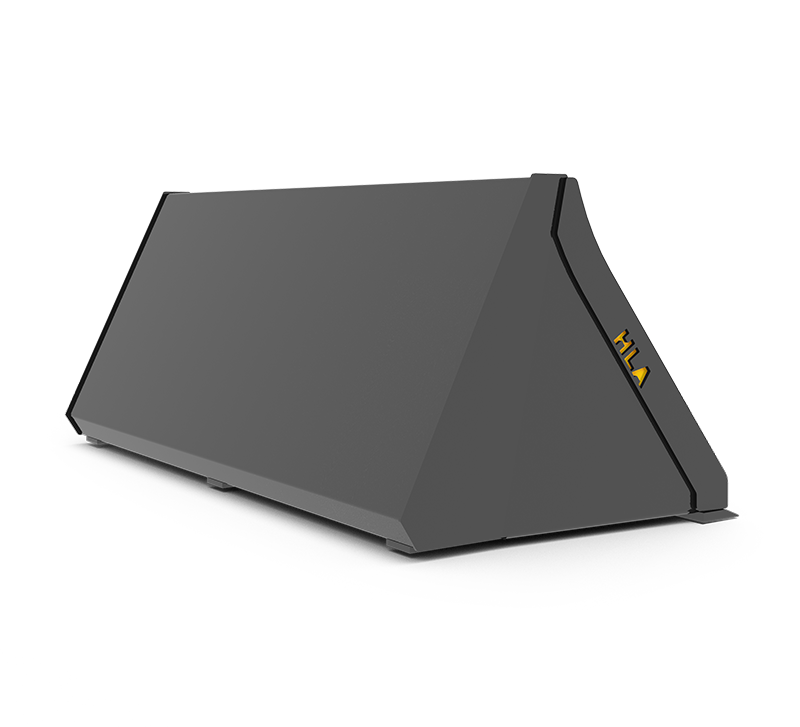

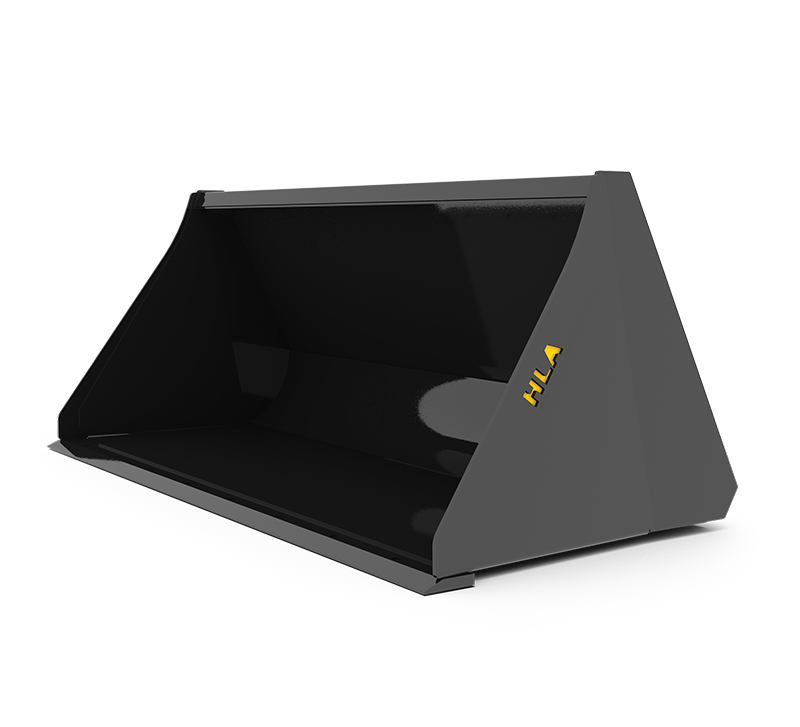

Standard Skidsteer Bucket - REGULAR DUTY
The HLA Standard Skidsteer Bucket - REGULAR DUTY is part of the HLA Buckets line, built by Horst Welding in Listowel, Ontario. The range covers 13 sizes and part numbers — see the specifications below.
About the Standard Skidsteer Bucket - REGULAR DUTY
The Standard Skidsteer Bucket - REGULAR DUTY (SB48) is built by Horst Welding in Listowel, Ontario. It is offered in 13 part numbers, covering the sizes in the specifications table below. Factory options are listed in the table as well.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Standard Skidsteer Bucket - REGULAR DUTY and its mount to it and price it out.
Features
- REGULAR DUTY
- 3/16" material, 1/4" end plates
- 3/4 X 4 bevelled cutting edge
- Reinforced top lip
- 28" deep, 26" high
- Reinforced round back and end plates for strength, easy filling & clean out
- Flat top acts as level indicator
- Drilled for standard bolt on cutting edge
- Tapered end plates are self-cleaning and reduces material build-up
- NOTE: Add 2" to inside width column to calculate outside width of bucket
Specifications
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| SB48 | 48" RD Standard Material Bucket | 48 | 11.0 | 13.6 | 400 |
| SB54 | 54" RD Standard Material Bucket | 54 | 12.3 | 15.4 | 425 |
| SB60 | 60" RD Standard Material Bucket | 60 | 13.7 | 17.2 | 455 |
| SB66 | 66" RD Standard Material Bucket | 66 | 15.0 | 19.0 | 480 |
| SB72 | 72" RD Standard Material Bucket | 72 | 16.5 | 20.8 | 510 |
| SB78 | 78" RD Standard Material Bucket | 78 | 17.8 | 22.5 | 545 |
| SB84 | 84" RD Standard Material Bucket | 84 | 19.2 | 24.3 | 575 |
| SB90 | 90" RD Standard Material Bucket | 90 | 20.6 | 26.1 | 610 |
| SB96 | 96" RD Standard Material Bucket | 96 | 21.9 | 27.9 | 640 |
| 346CEB | Optional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 348CEB | Optional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 346CESB | Optional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| RTMBK | Optional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin |
Price: Call for pricing
