HLA ATTACHMENTS

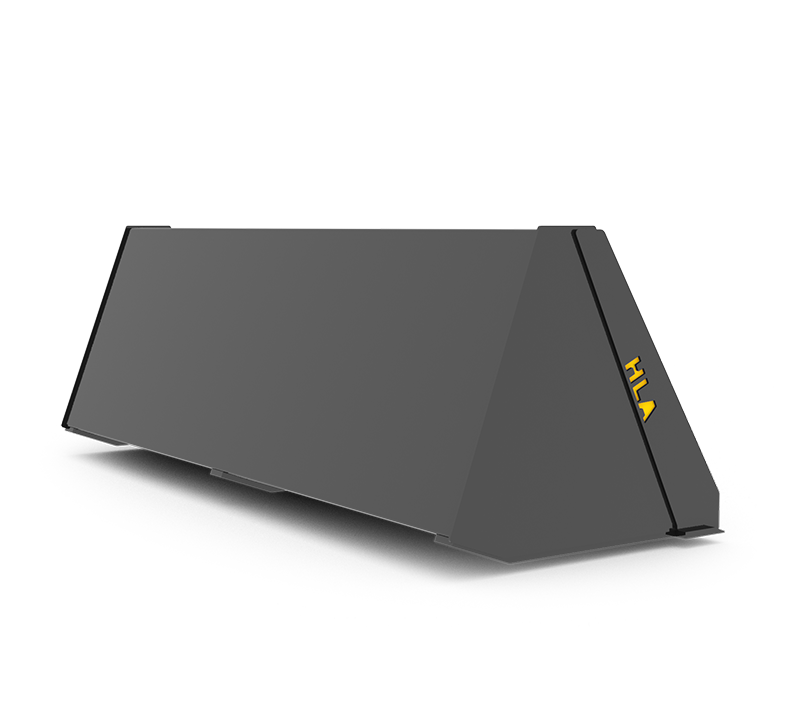

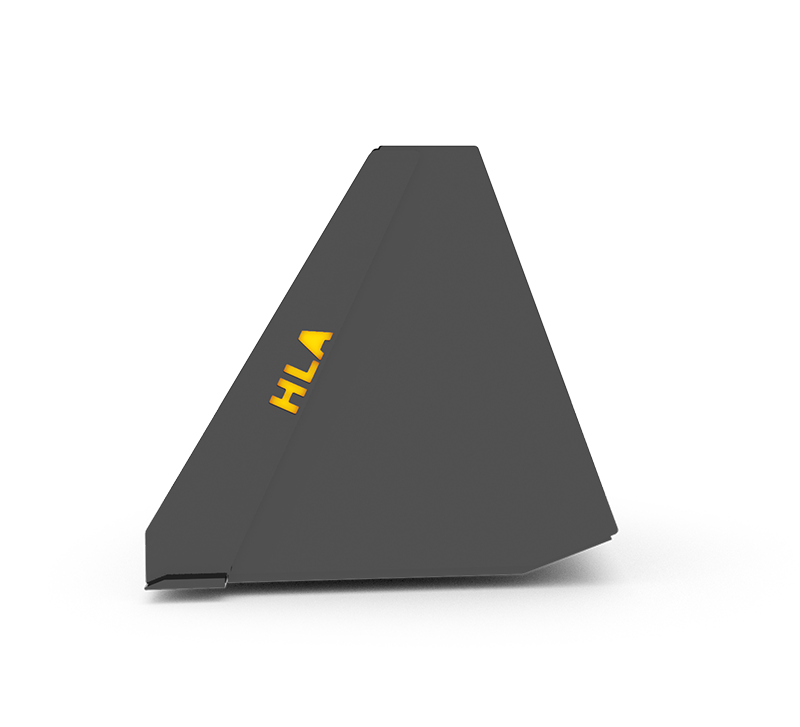

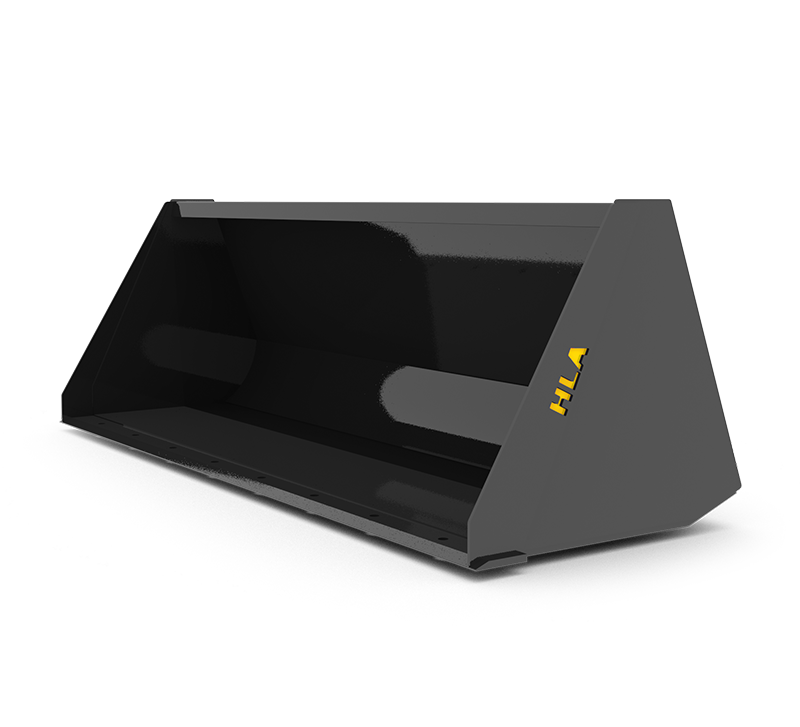

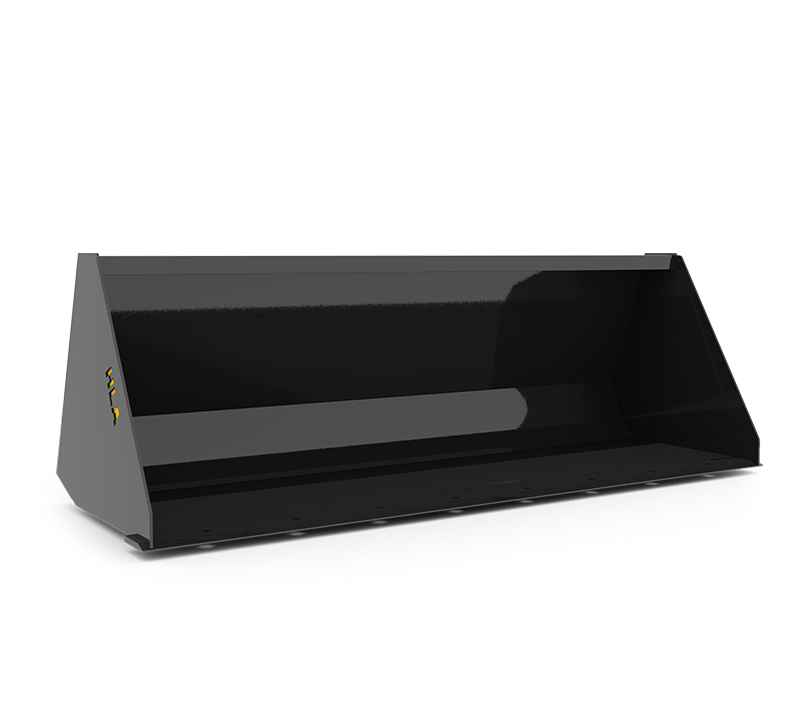

Compact Utility Bucket - Front End Loader
The HLA Compact Utility Bucket - Front End Loader is part of the HLA Buckets line, built by Horst Welding in Listowel, Ontario. The range covers 5 sizes and part numbers — see the specifications below.
About the Compact Utility Bucket - Front End Loader
Supplied new through Valtek
The Compact Utility Bucket - Front End Loader (MBC482122) is built by Horst Welding in Listowel, Ontario. It is offered in 5 part numbers, covering the sizes in the specifications table below.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Compact Utility Bucket - Front End Loader and its mount to it and price it out.
Features
- 1/8" material, 3/16" end plates
- ½ X 4 bevelled cutting edge
- 22" deep, 21" high
- 70° slope on back of bucket
- Reinforced round back and end plates for strength, easy filling & clean out
- Flat top acts as level indicator
- Drilled for standard bolt on cutting edge
- Add 2" to Inside Width column to calculate Outside Width of bucket
Specifications
Compact Utility Bucket - Front End Loader sizes and part numbers
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| MBC482122 | 48" Compact Utility Bucket | 48" | 8.0 | 9.8 | 230 |
| MBC542122 | 54" Compact Utility Bucket | 54" | 9.0 | 11.1 | 245 |
| MBC602122 | 60" Compact Utility Bucket | 60" | 10.0 | 12.3 | 260 |
| MBC662122 | 66" Compact Utility Bucket | 66" | 11.0 | 13.6 | 275 |
| MBC722122 | 72" Compact Utility Bucket | 72" | 12.0 | 14.9 | 290 |
Price: Call for pricing
Get a price on the Compact Utility Bucket - Front End Loader
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
