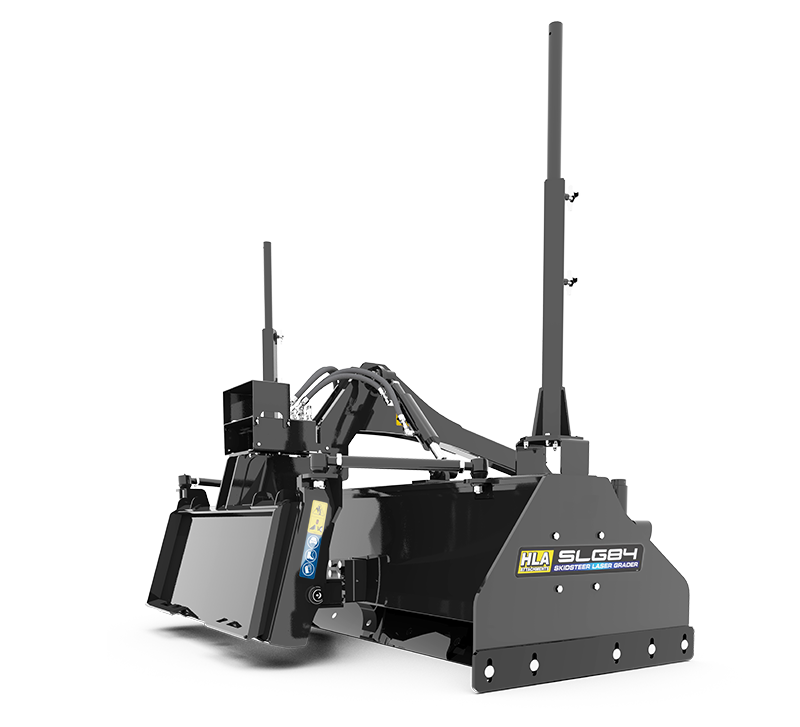

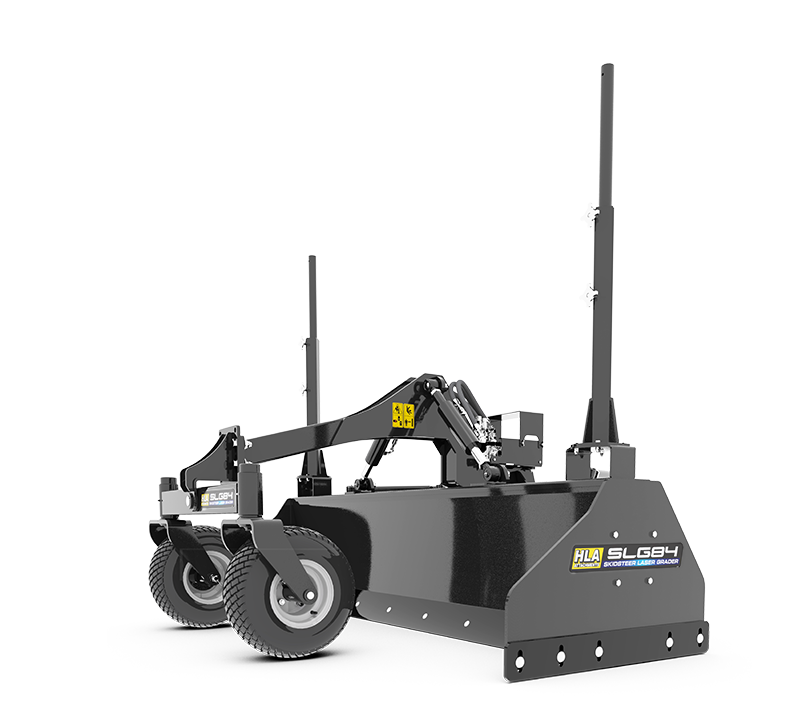

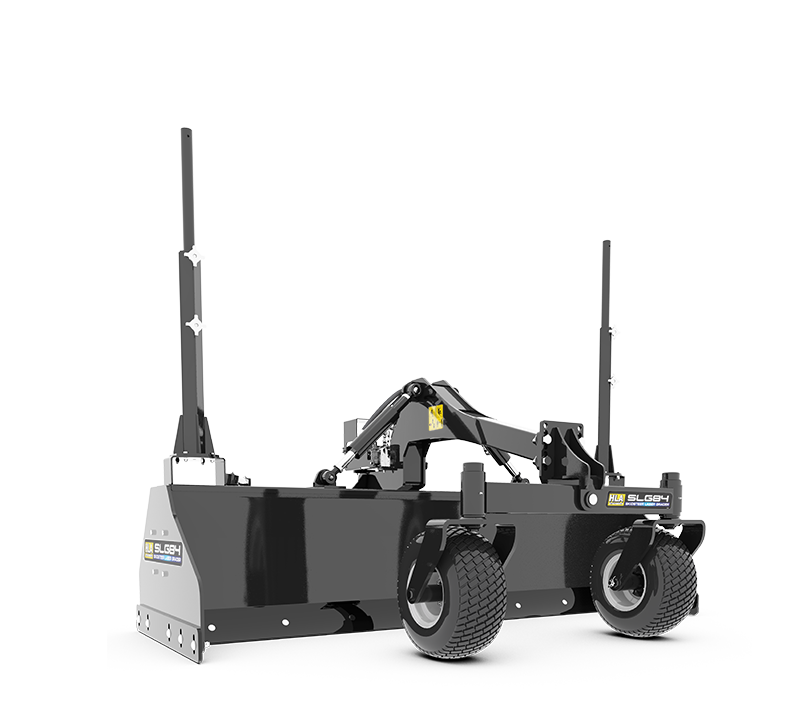

Skidsteer Laser Grader
The HLA Skidsteer Laser Grader is part of the HLA Blades line, built by Horst Welding in Listowel, Ontario. The range covers 4 sizes and part numbers — see the specifications below.
About the Skidsteer Laser Grader
Supplied new through Valtek
The Skidsteer Laser Grader (SLG84) is built by Horst Welding in Listowel, Ontario. It is offered in 4 part numbers, covering the sizes in the specifications table below. Factory options are listed in the table as well.
New HLA attachments are supplied through Valtek. Tell us the machine you run and we will match the Skidsteer Laser Grader and its mount to it and price it out.
Features
- Push-pull design for grading in forward or reverse
- Pneumatic swivel wheels with tapered roller bearings on king pins, on oscillating front axle
- Tapered roller bearings on axle oscillation pivot
- Removable shims on main oscillation pivot to keep wear joint tight
- Two 2-1/2" x 6" cylinders provide cross-slope operation
- Reversible cutting edges
- Universal laser mast mount
- Levels consistently within 1/4" of target grade
- Control valve included, does not include laser or grade control electronics
Specifications
Skidsteer Laser Grader sizes and part numbers
| Part Number | Description | APPROX. WEIGHT LBS. |
|---|---|---|
| SLG84 | Skidsteer Laser Grader | 1,610 |
| SLG96 | Skidsteer Laser Grader | 2,095 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers | |
| SHMK | Optional Spring Hose Mount Kit |
Price: Call for pricing

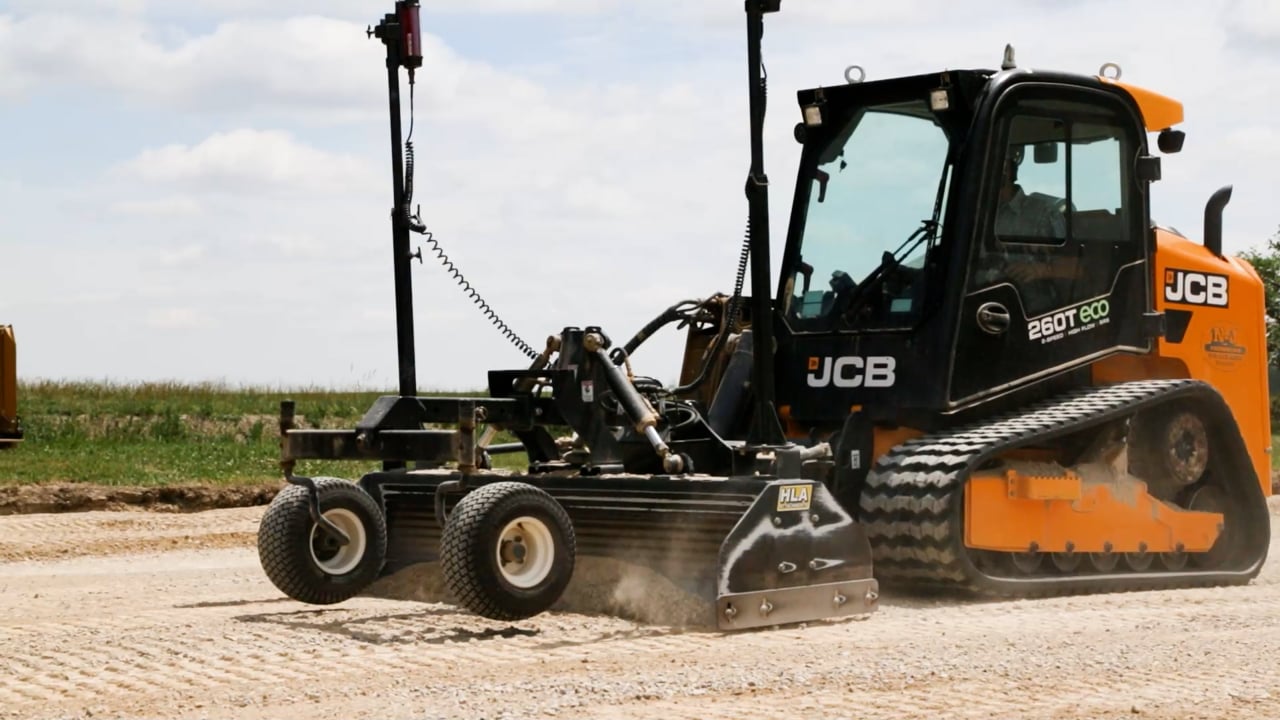

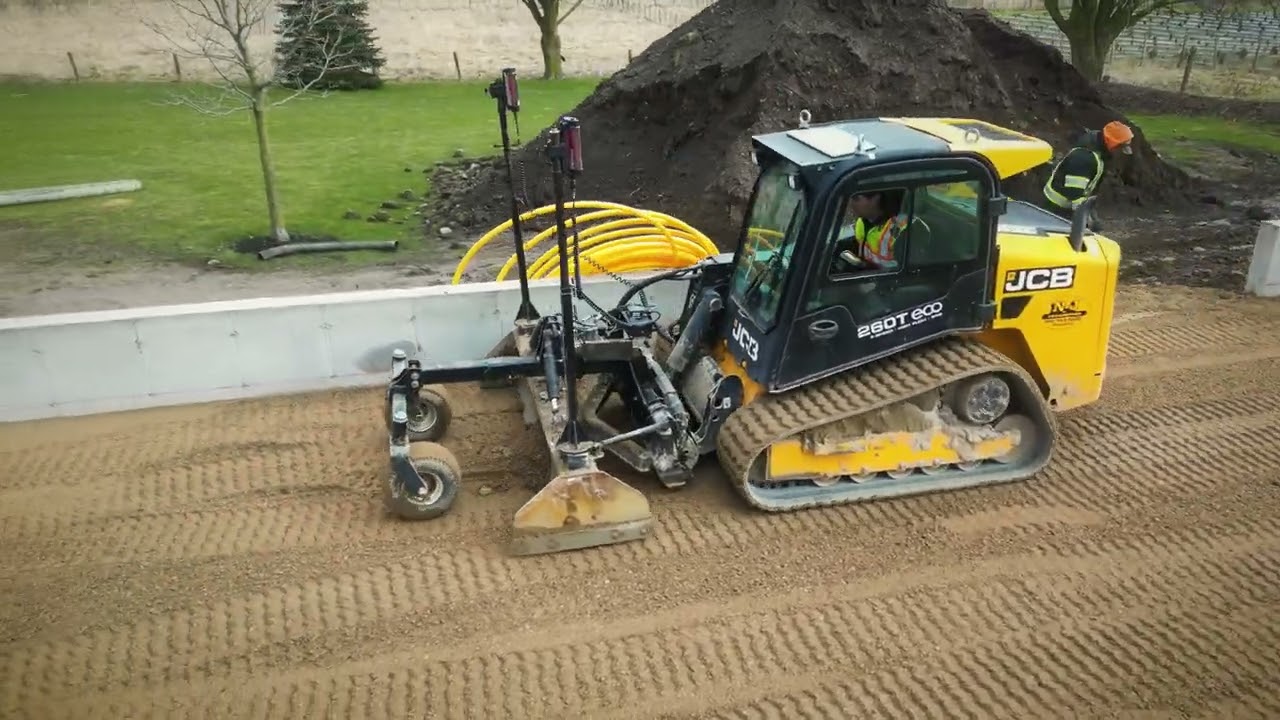

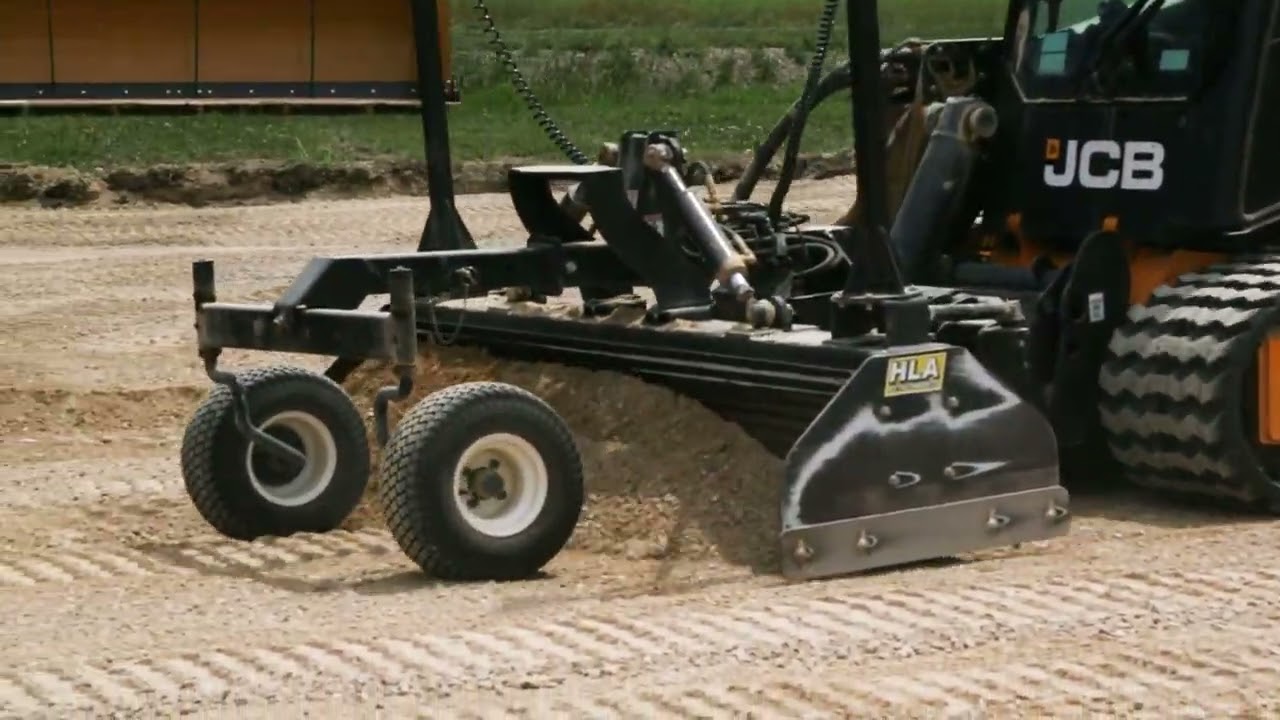

See the Skidsteer Laser Grader at Work
HLA videos
Get a price on the Skidsteer Laser Grader
New HLA attachments supplied through Valtek. Tell us what machine you run and we will match the attachment and mount to it. Call for pricing.
