Snow Blades

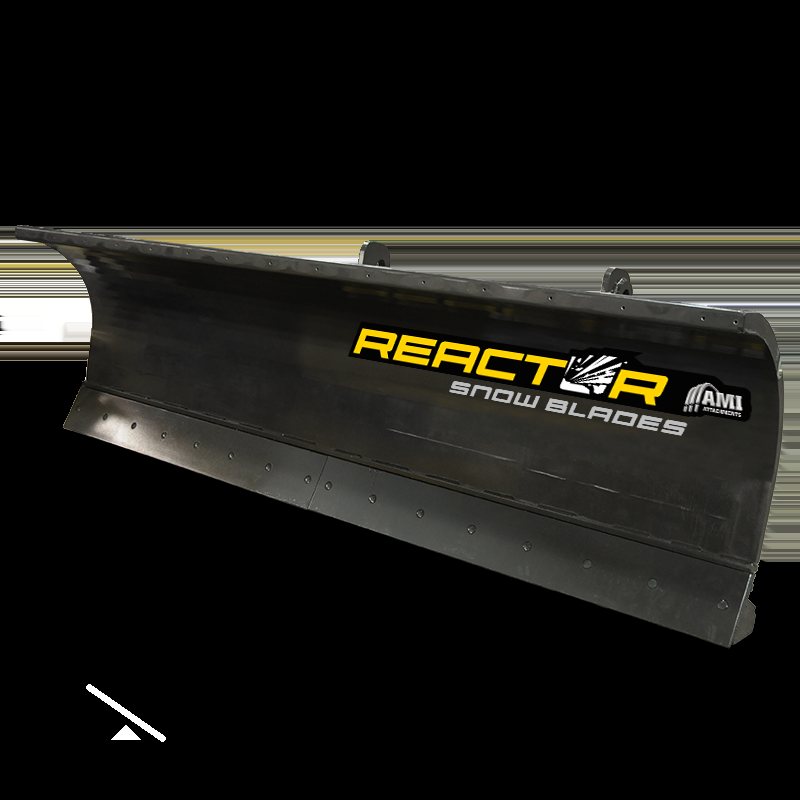

AMI Reactor snow blades are built to clear large lots and yards with wheel loaders, loader backhoes and skid steers. The Angle Blade with FluidEdge is a high volume plow, and AMI rates it at over double the plowing width of a truck blade. The 4-in-1 blade adds hydraulically controlled endplates.
About the Snow Blades

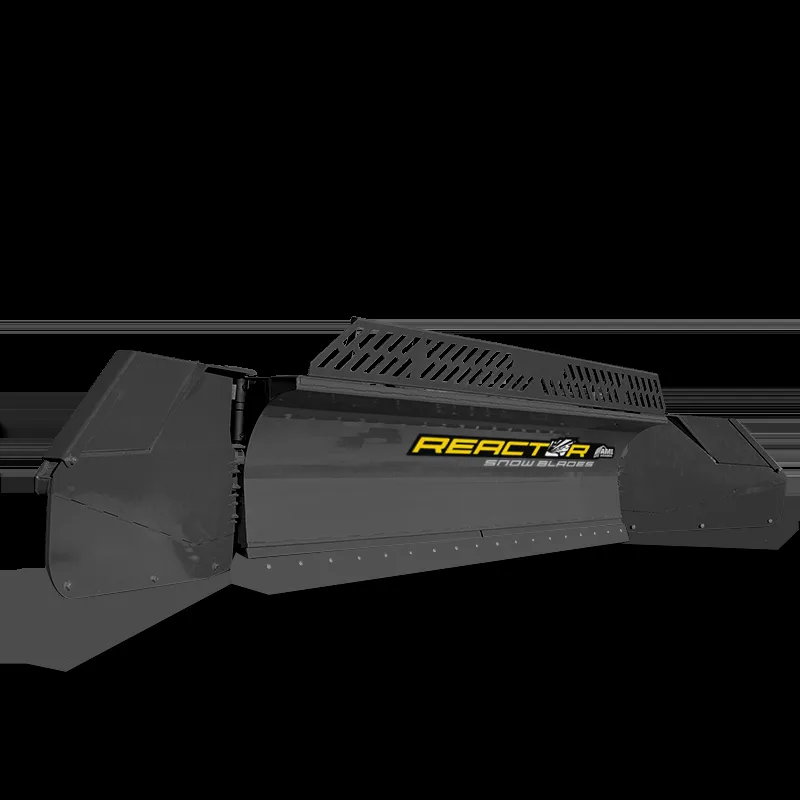

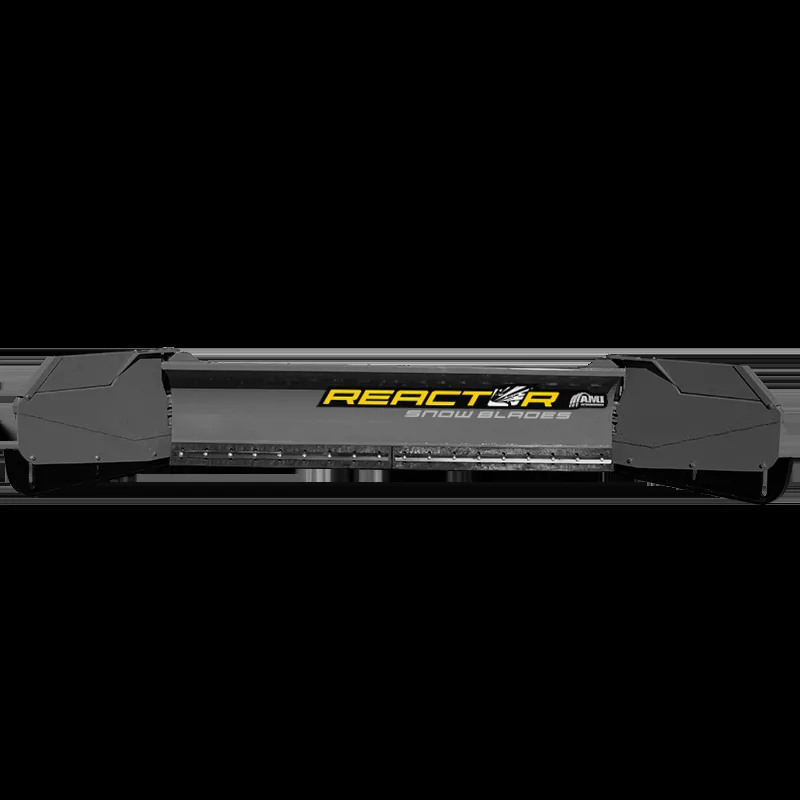

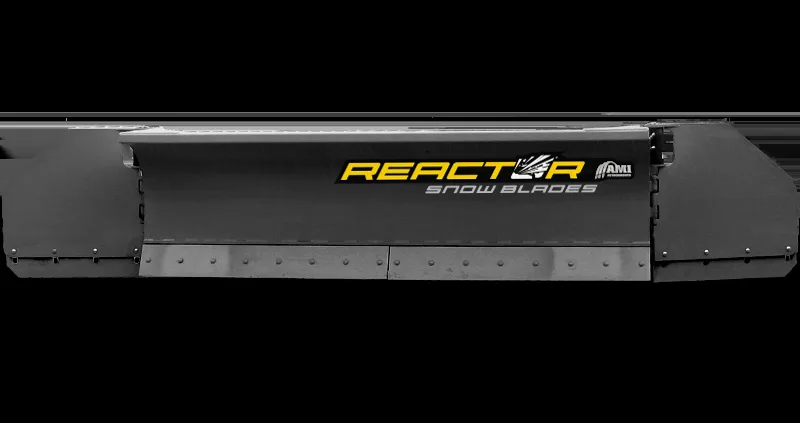

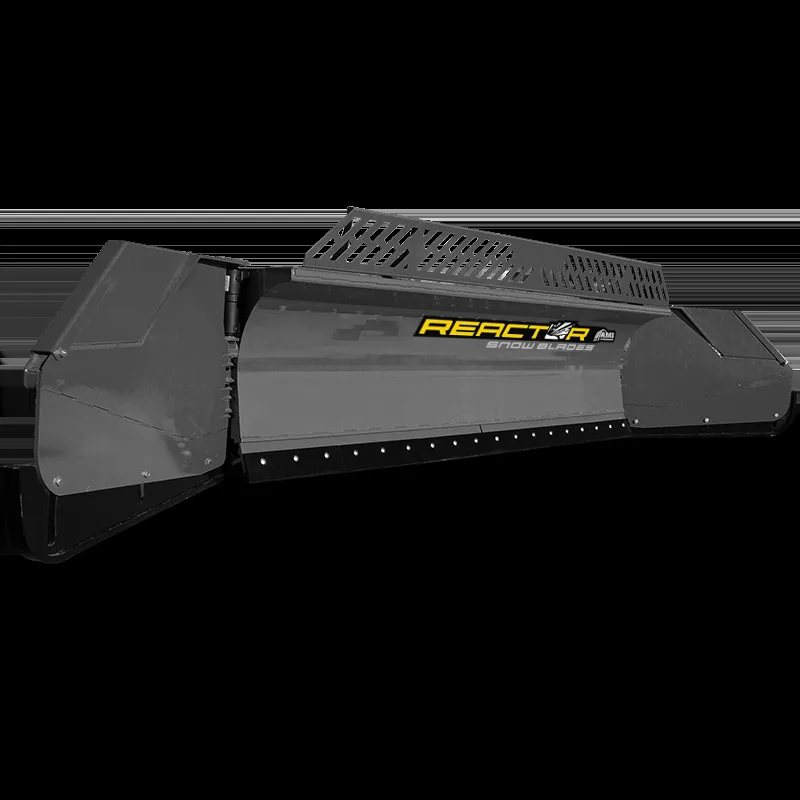

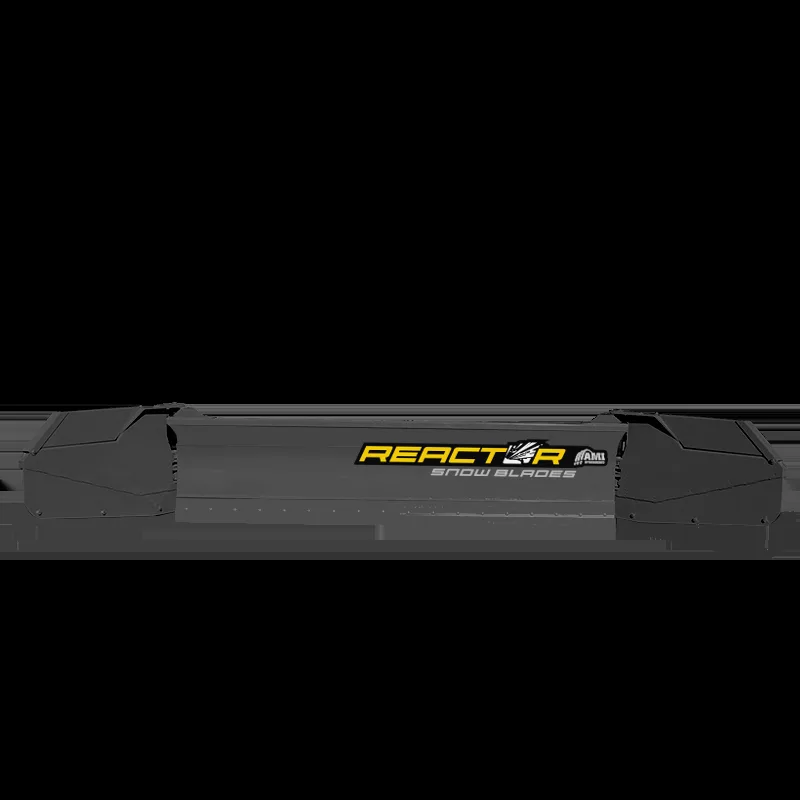

AMI Reactor snow blades are built to clear large lots and yards with wheel loaders, loader backhoes and skid steers. The Angle Blade with FluidEdge is a high volume plow, and AMI rates it at over double the plowing width of a truck blade. The 4-in-1 blade adds hydraulically controlled endplates on rotary actuators, so one blade works in four positions: box blade, reverse box blade, angle blade and straight blade, with a 180 degree pivot range.

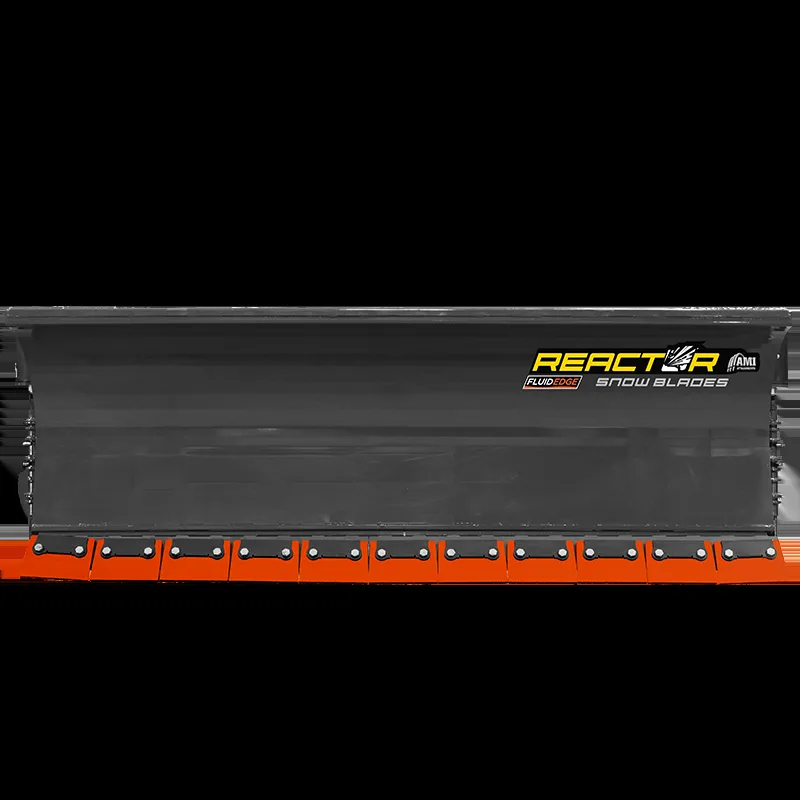

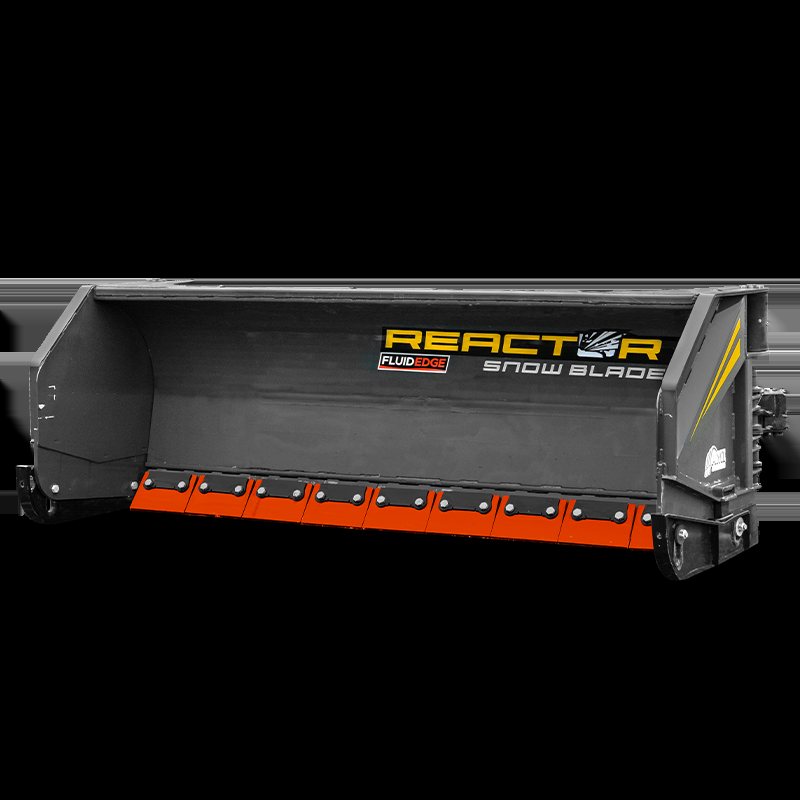

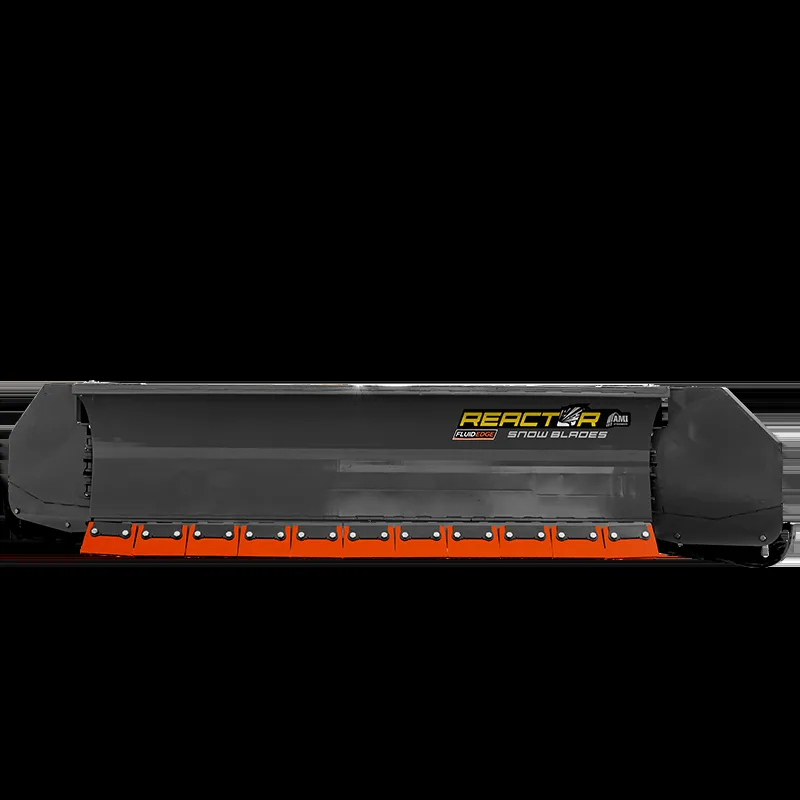

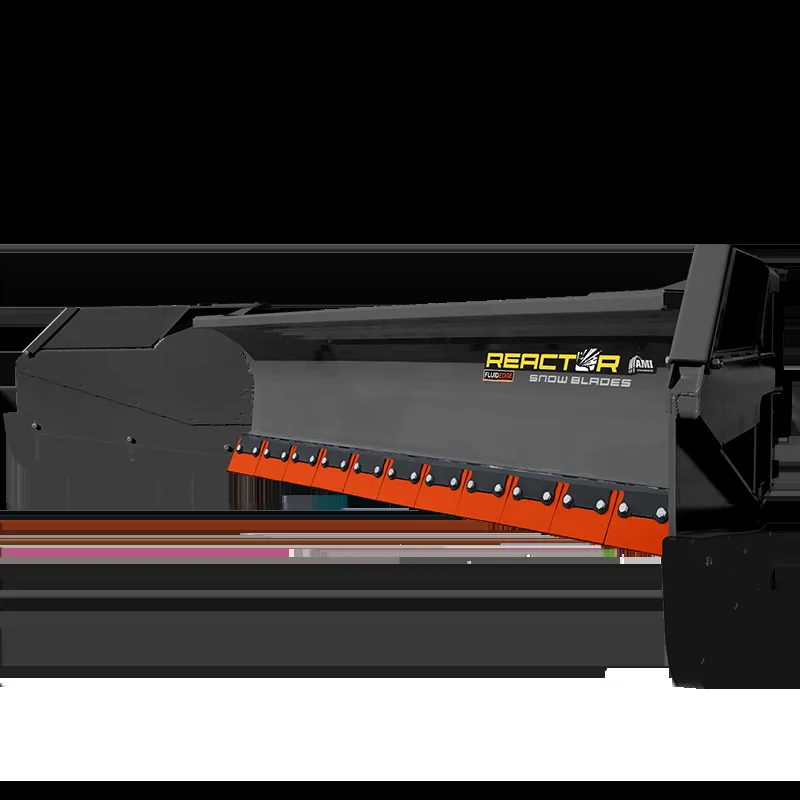

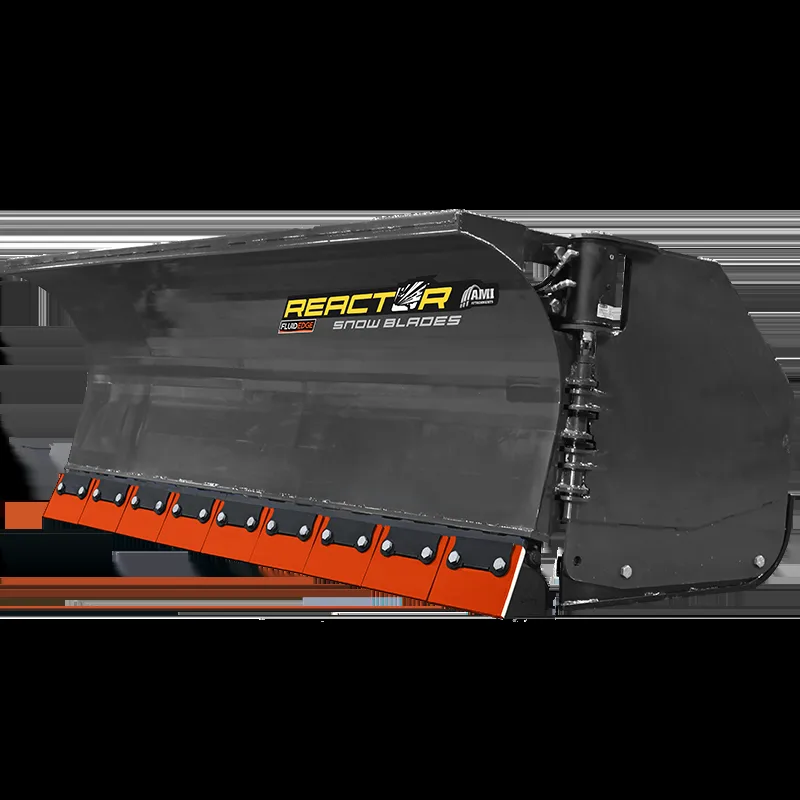

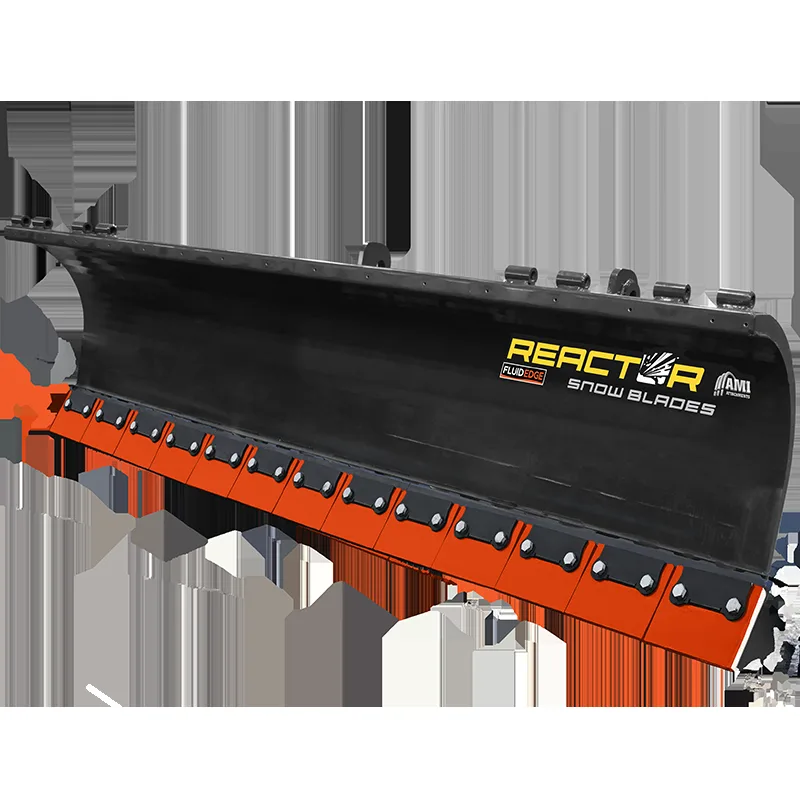

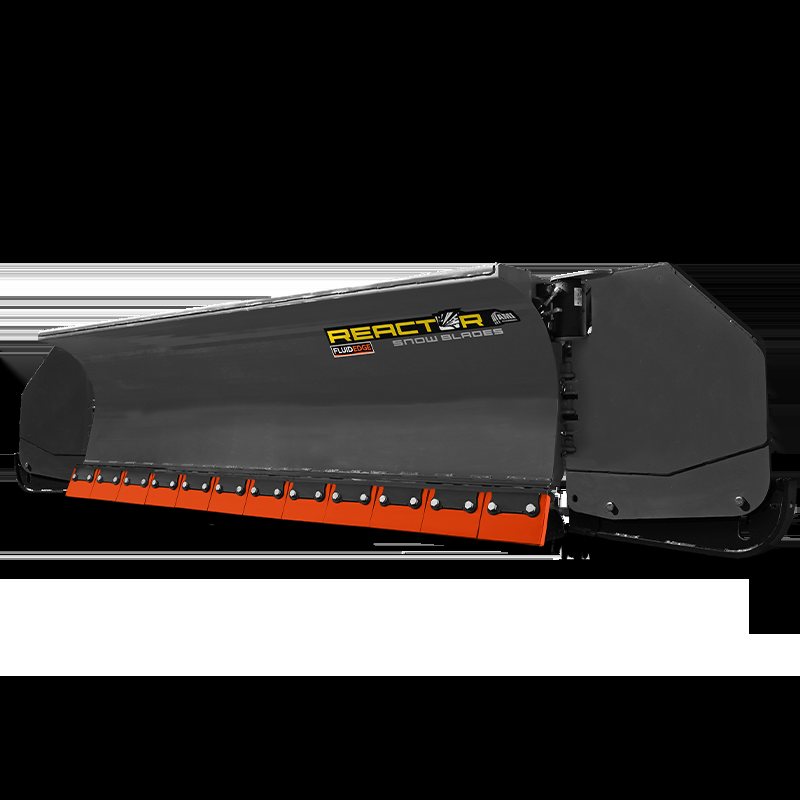

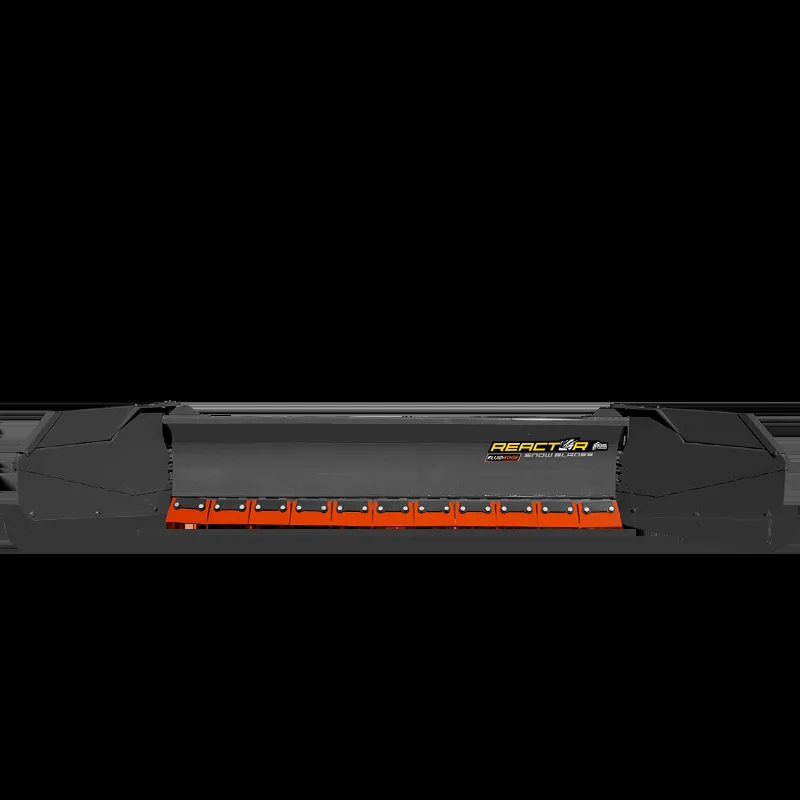

The FluidEdge option is a segmented cutting edge made of individual 12 inch Hardox 500 segments on rubber suspension blocks. Each segment follows uneven ground, with 5 degrees of tilt and 1.5 inches of vertical travel. A worn segment is replaced on its own with two bolts and two nuts, so the full edge does not need to be changed.

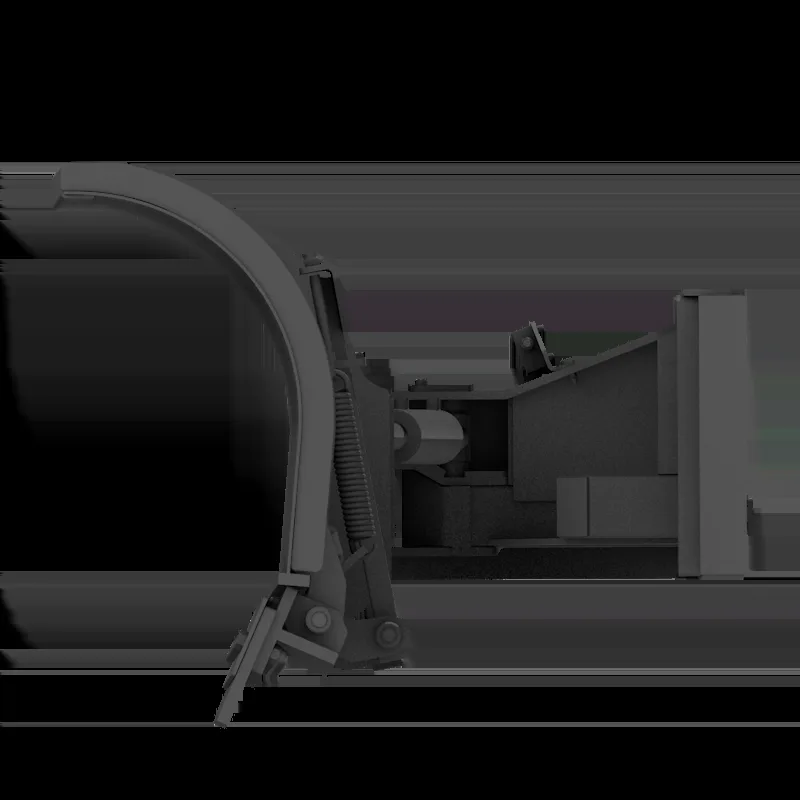

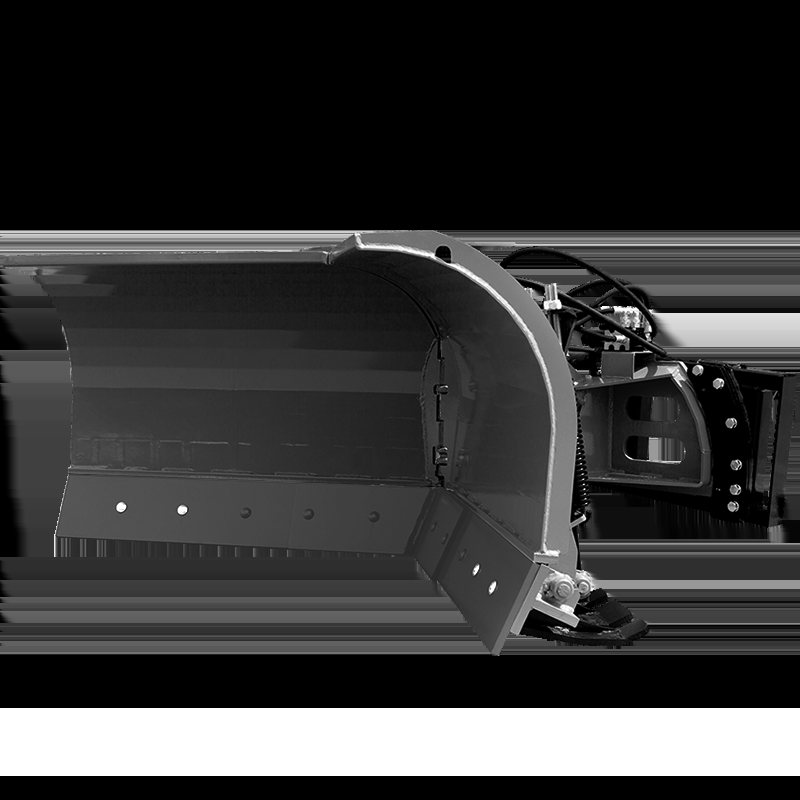

For tighter work, the 6-Way blade suits skid steers and sidewalk clearing. Both sides adjust to form an angle blade, a scoop or a V-blade. Its spring-trip cutting edge springs back when it strikes an obstacle, and the cutting edges are replaceable and reversible.
Features
- FluidEdge segmented cutting edge with individual 12 inch segments
- Hardox 500 cutting edge segments on rubber suspension blocks
- Forward float and lateral float on Reactor angle blades
- Spring-trip cutting edge and crossover relief valve
- 4-in-1 positions: box, reverse box, angle and straight blade
- Hydraulic endplates with rotary actuators and 180 degree pivot range on the 4-in-1
- 6-Way blade forms angle, scoop or V-blade shapes for skid steer work
Models: AMI Reactor Angle Blade, Reactor Angle Blade with FluidEdge, Reactor 4-in-1 Angle Blade (including FluidEdge and 5 ft Wing versions), and Reactor 6-Way Blade for skid steers
Specifications
| FluidEdge segment size | 12 in. |
| FluidEdge vertical travel | 1.5 in. |
| FluidEdge tilt | 5 degrees |
| 4-in-1 blade width, retracted (wheel loader) | 6-14 ft depending on model |
| 4-in-1 blade width, extended (wheel loader) | 11-20 ft depending on model |
| 6-Way blade width (skid steer) | 54-96 in. |
| 6-Way blade height (skid steer) | 30 in. |
