Grapples and Graptor Buckets

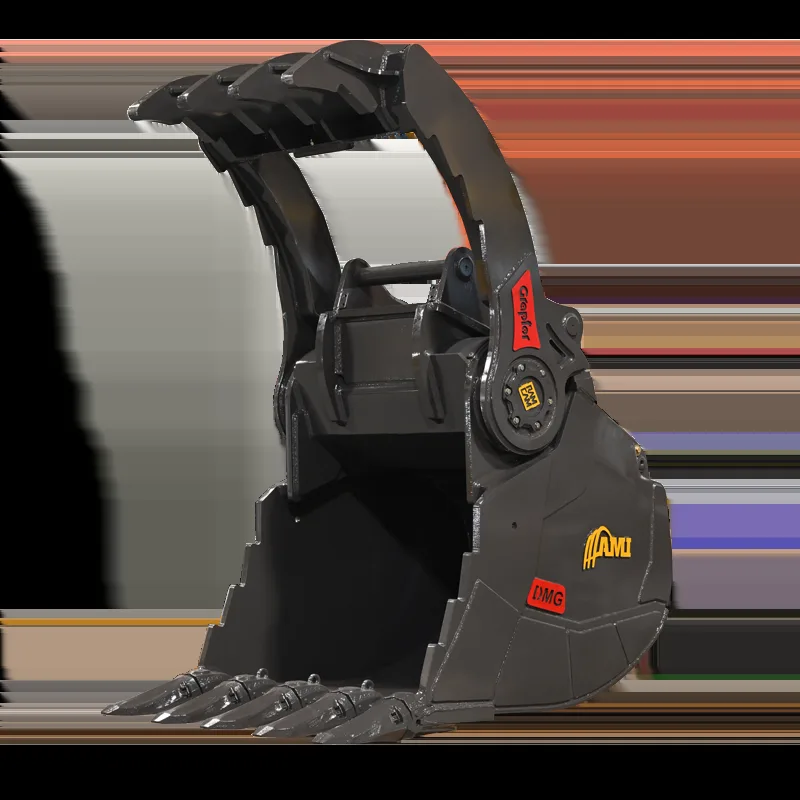

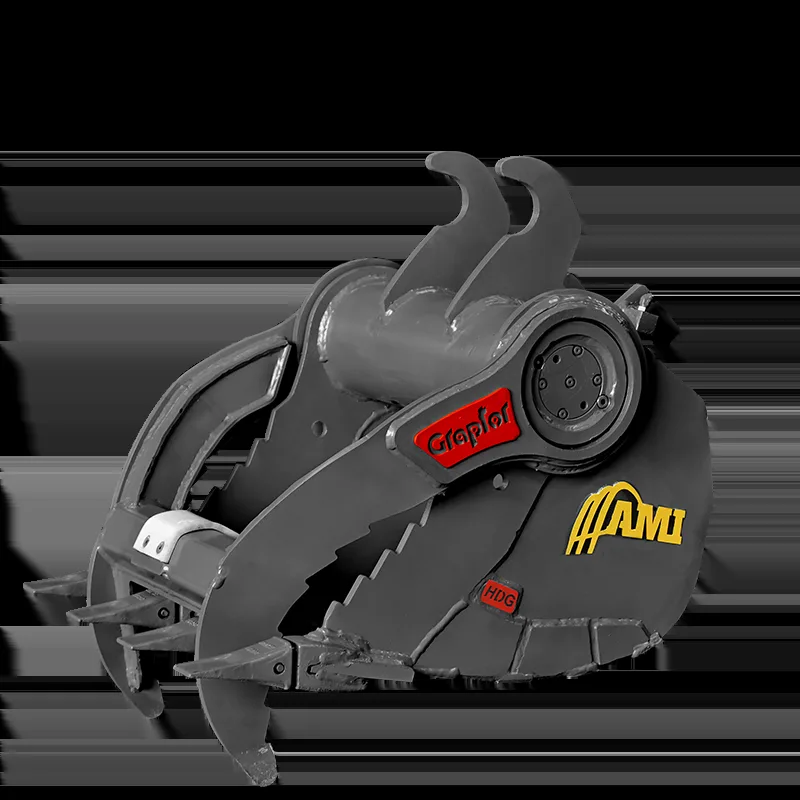

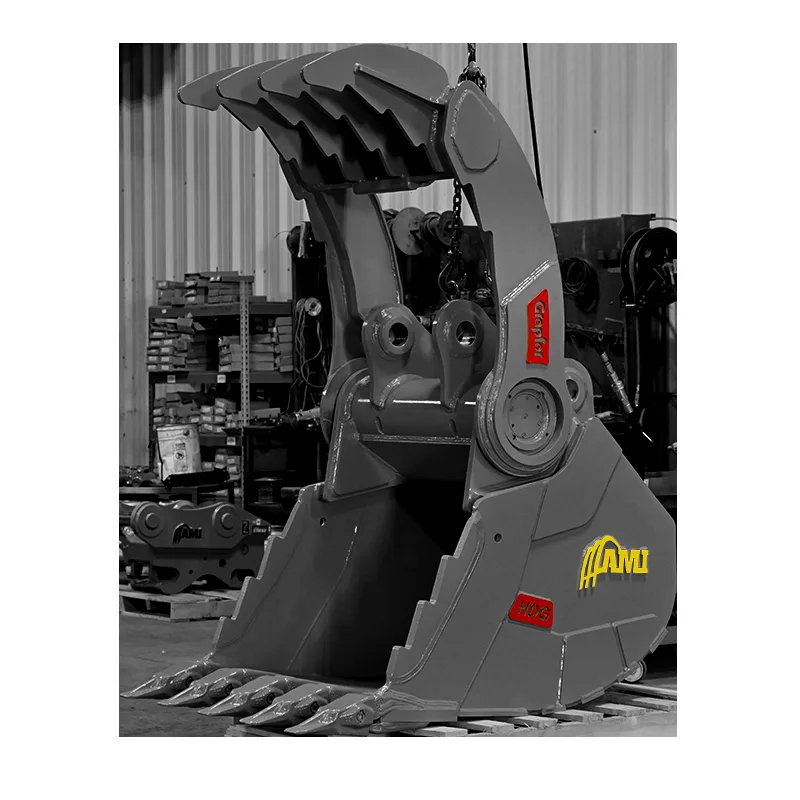

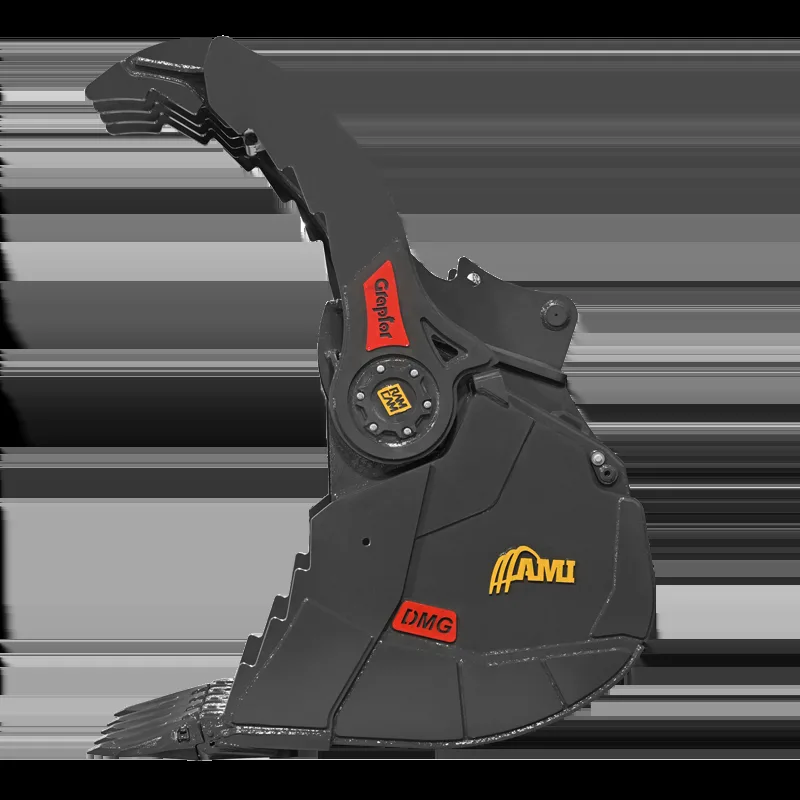

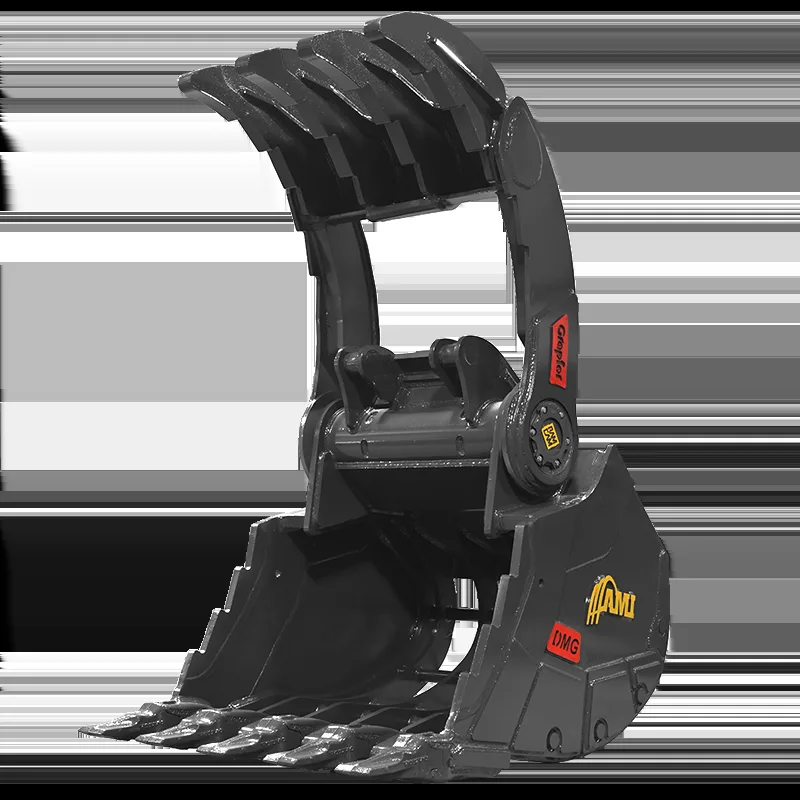

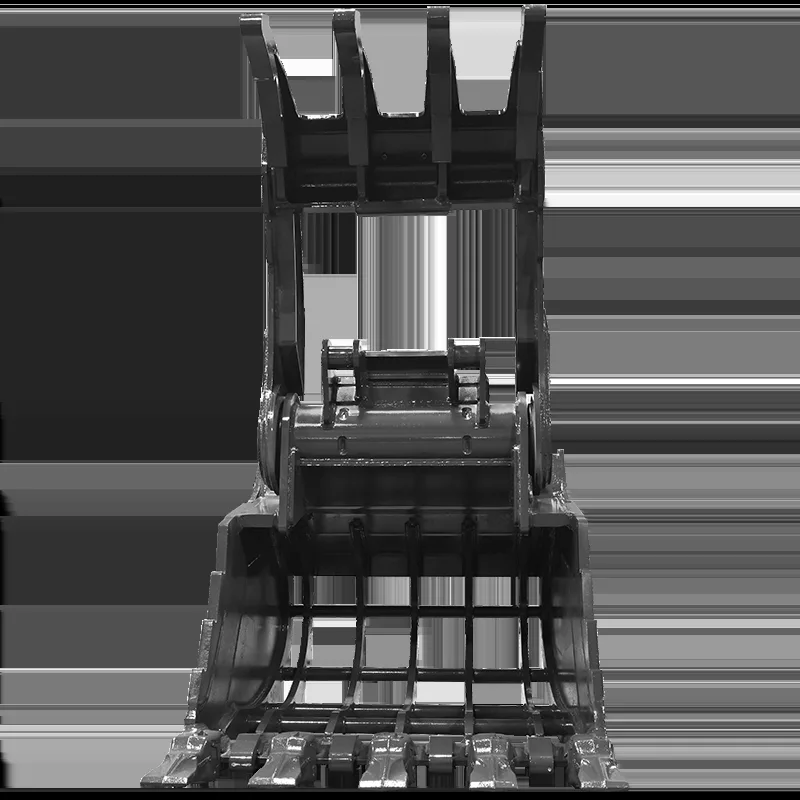

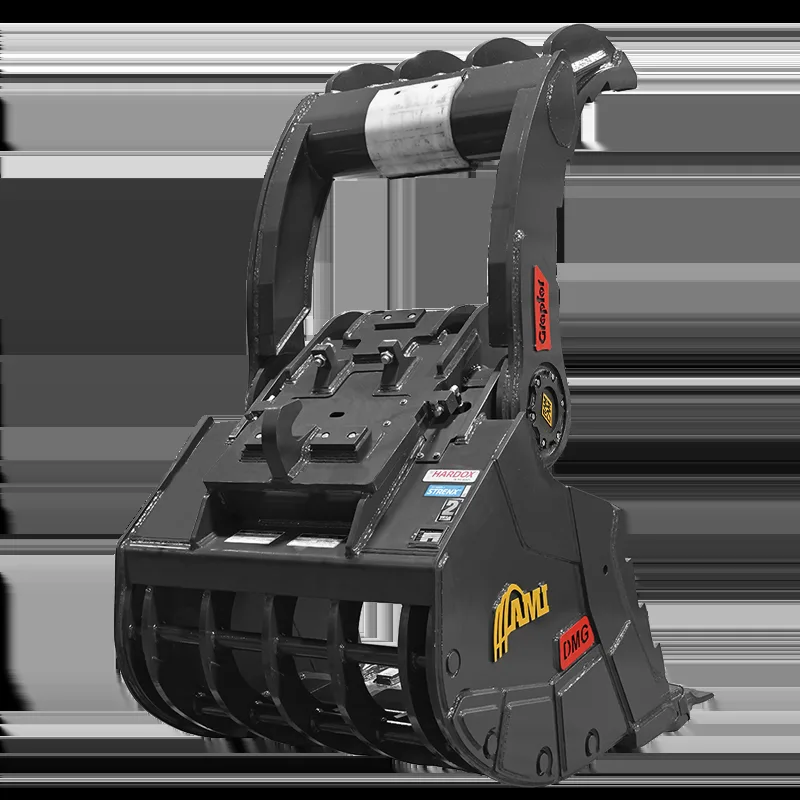

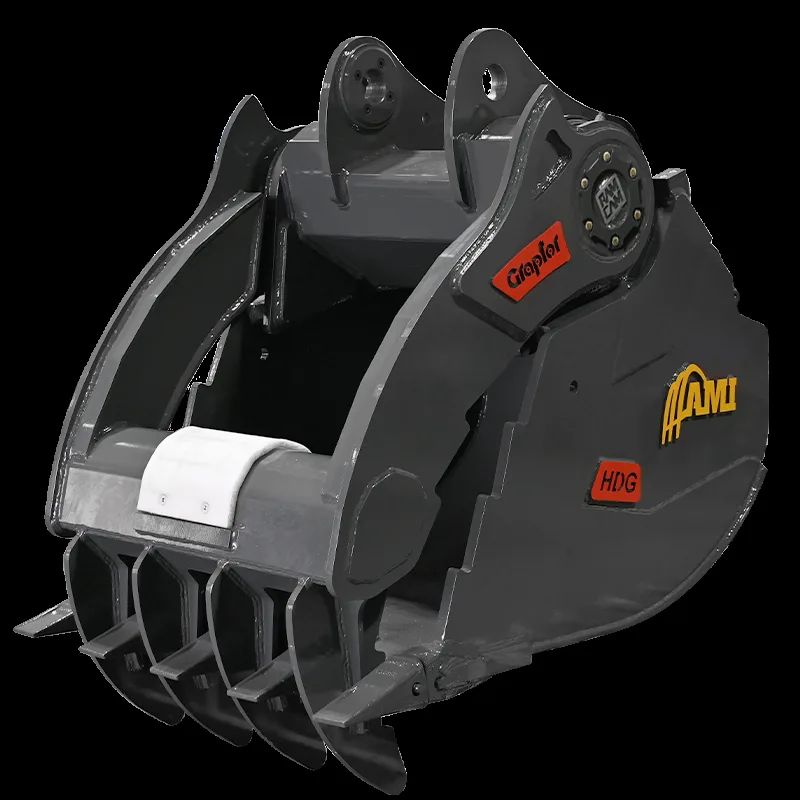

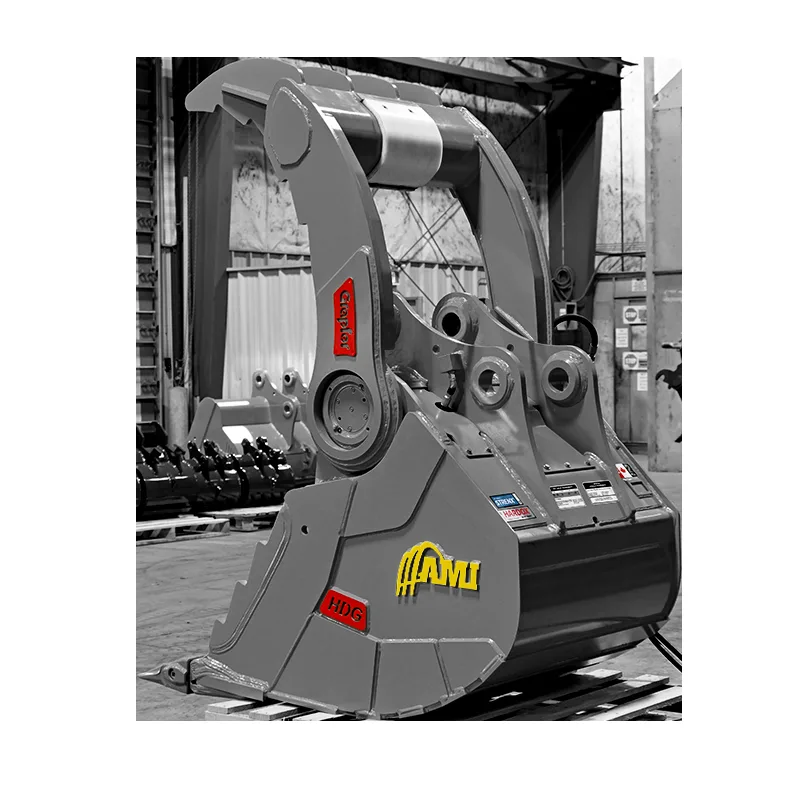

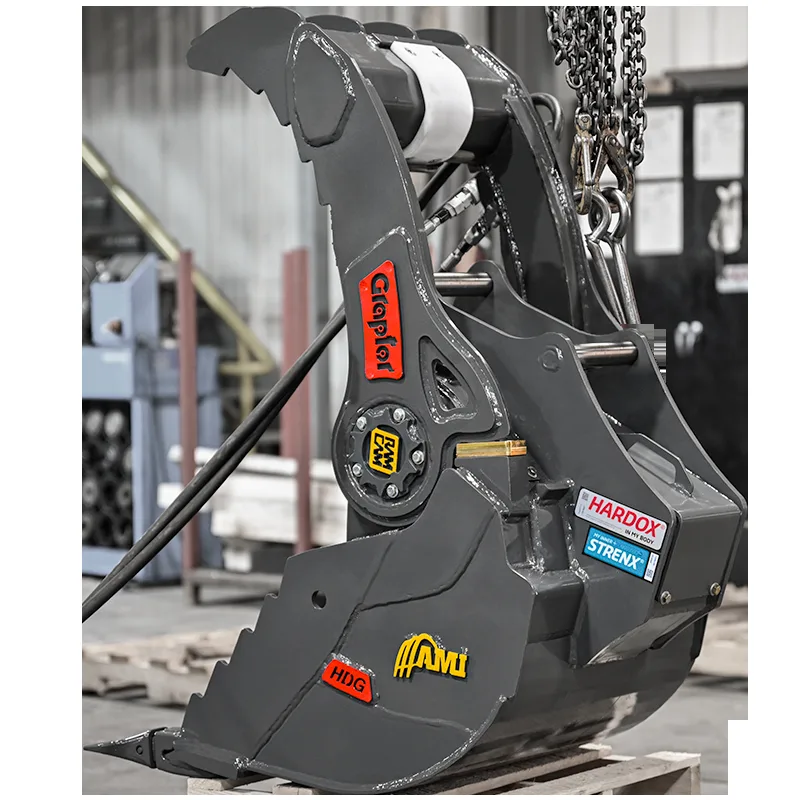

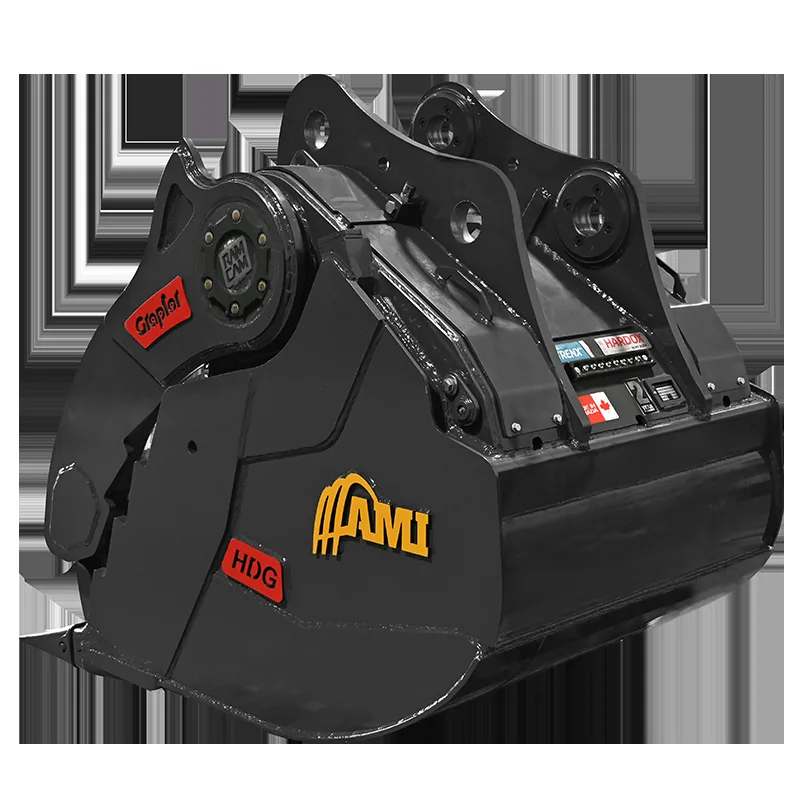

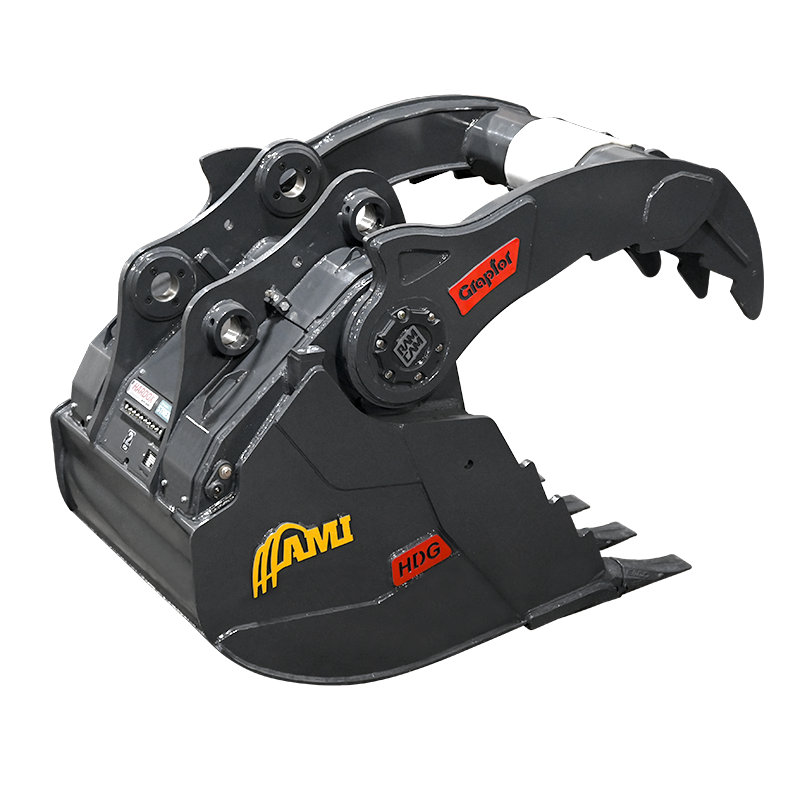

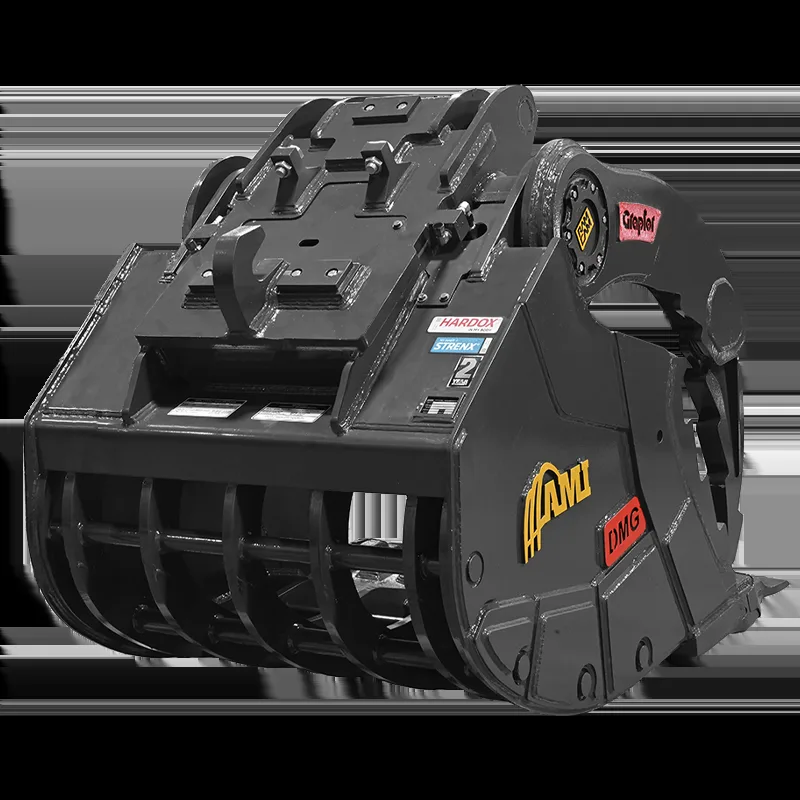

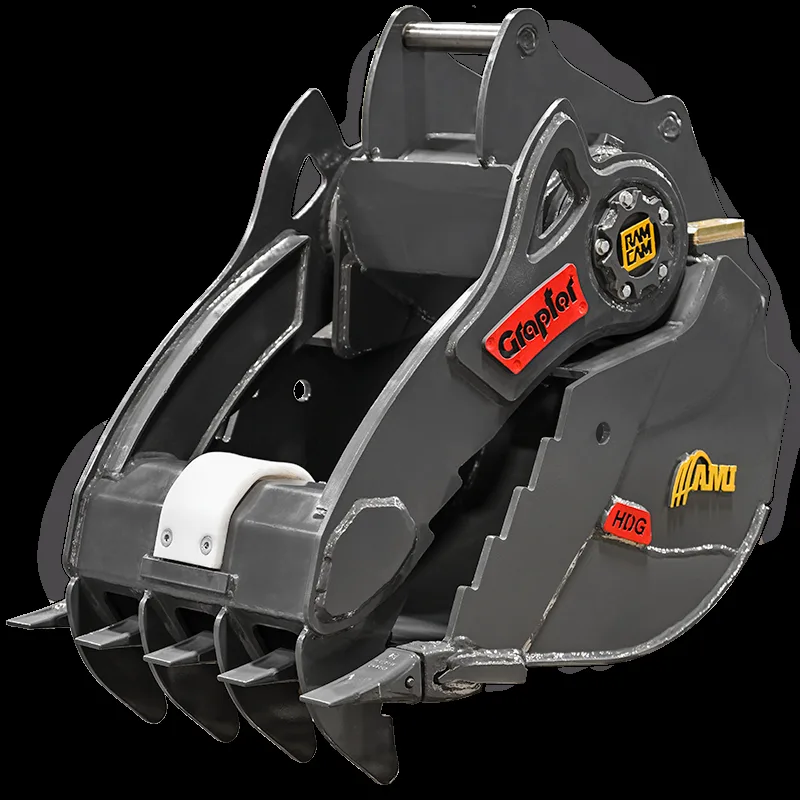

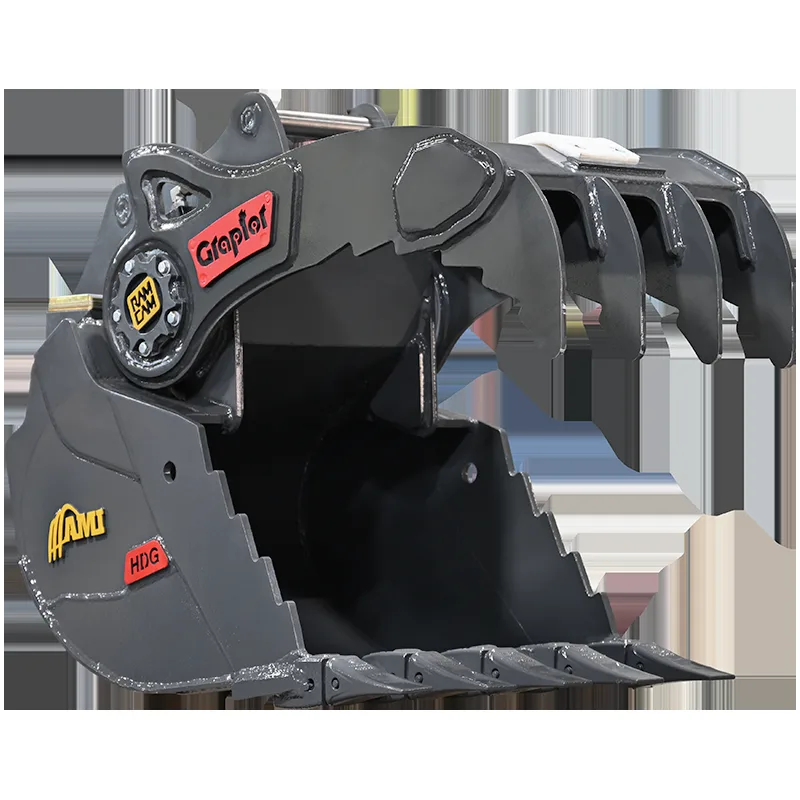

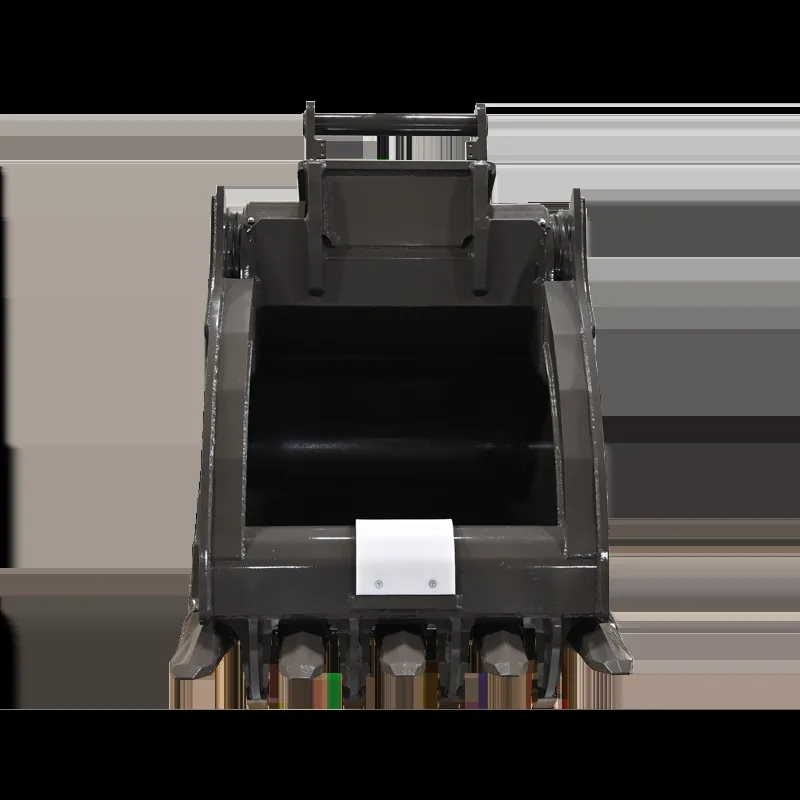

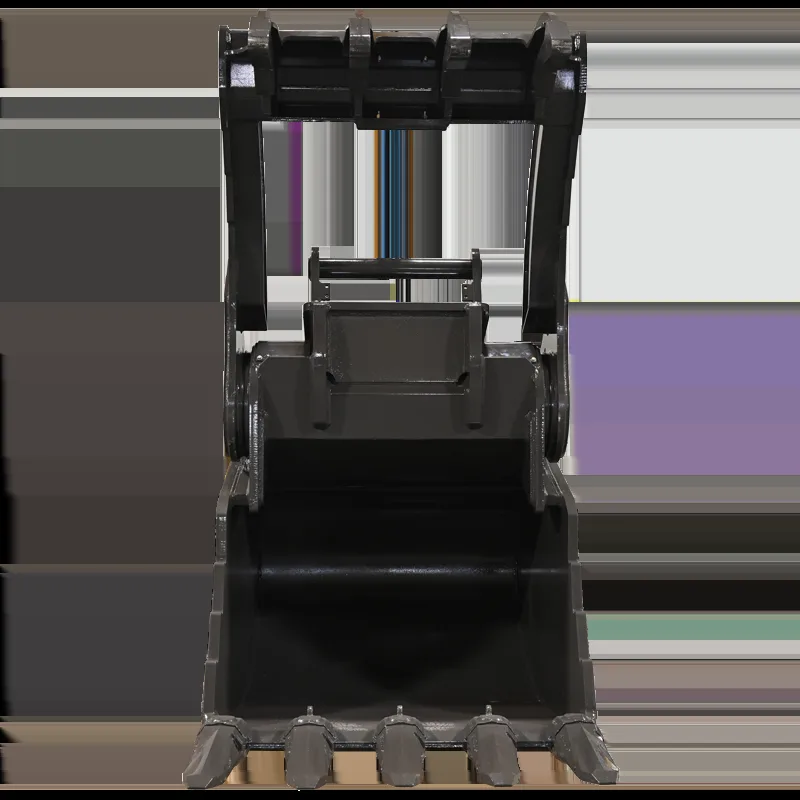

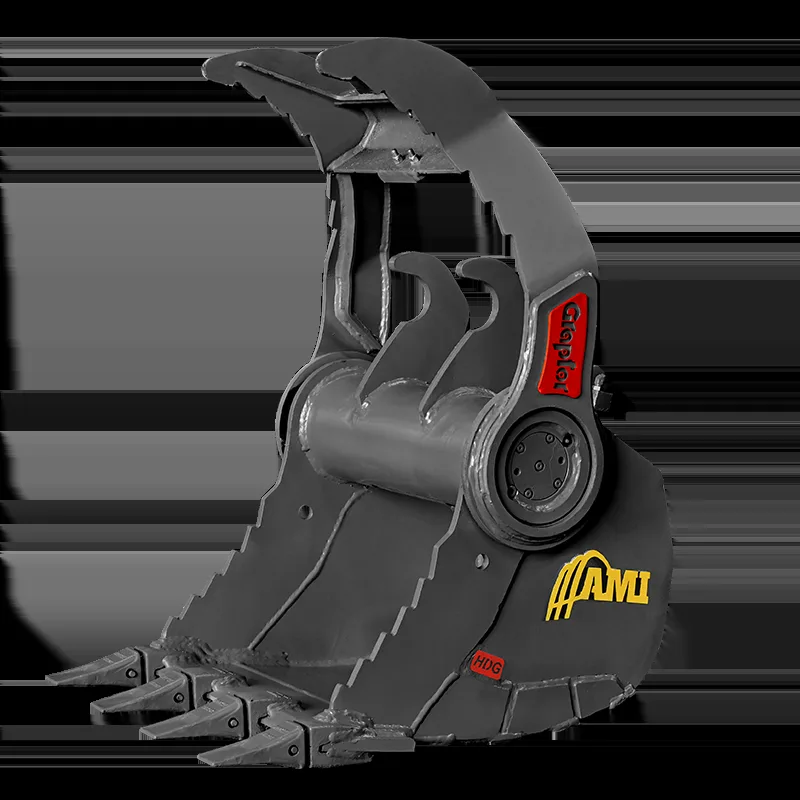

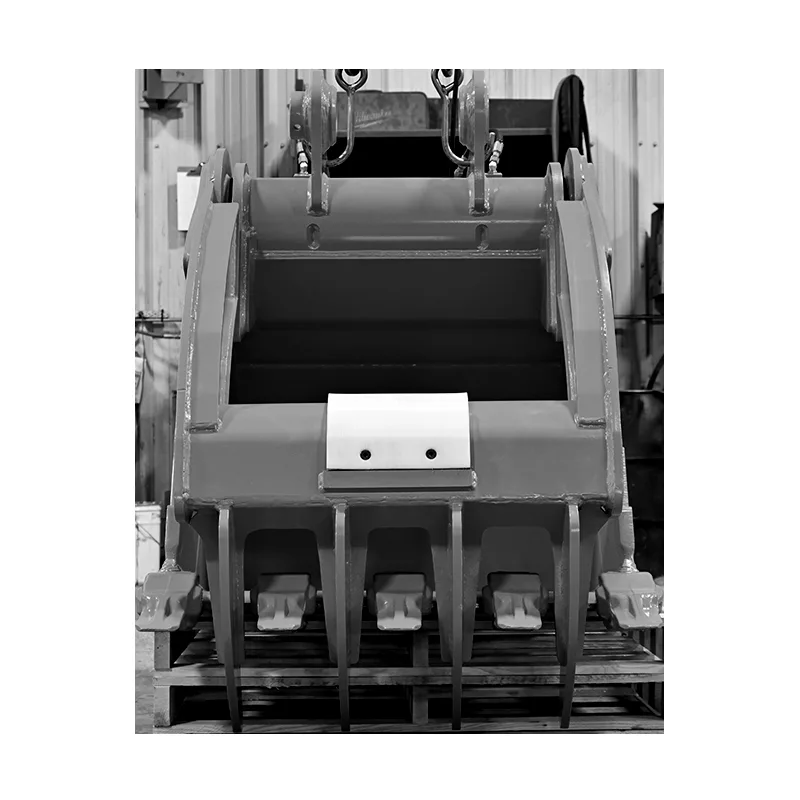

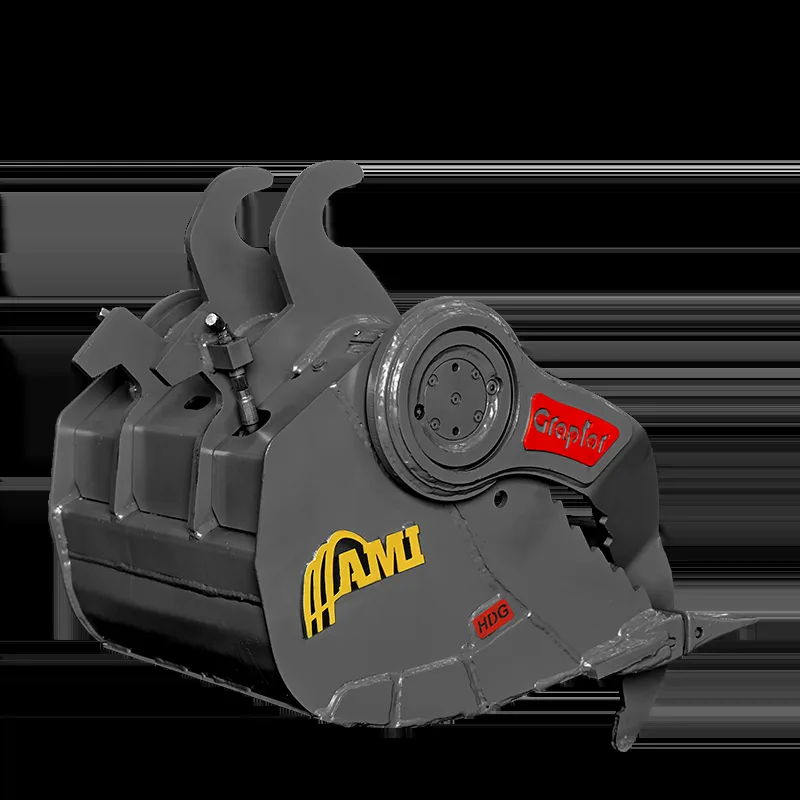

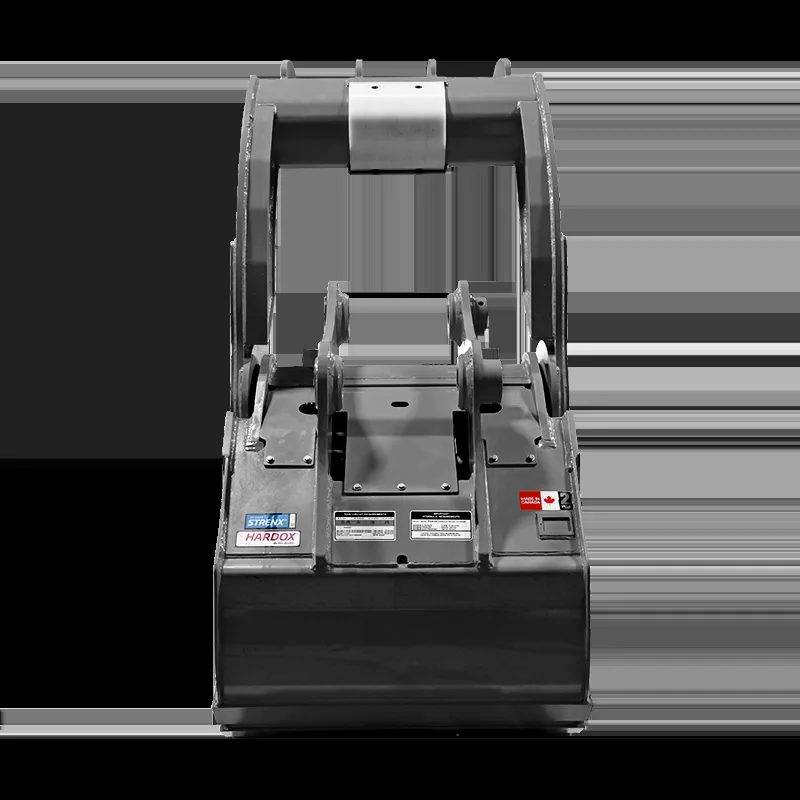

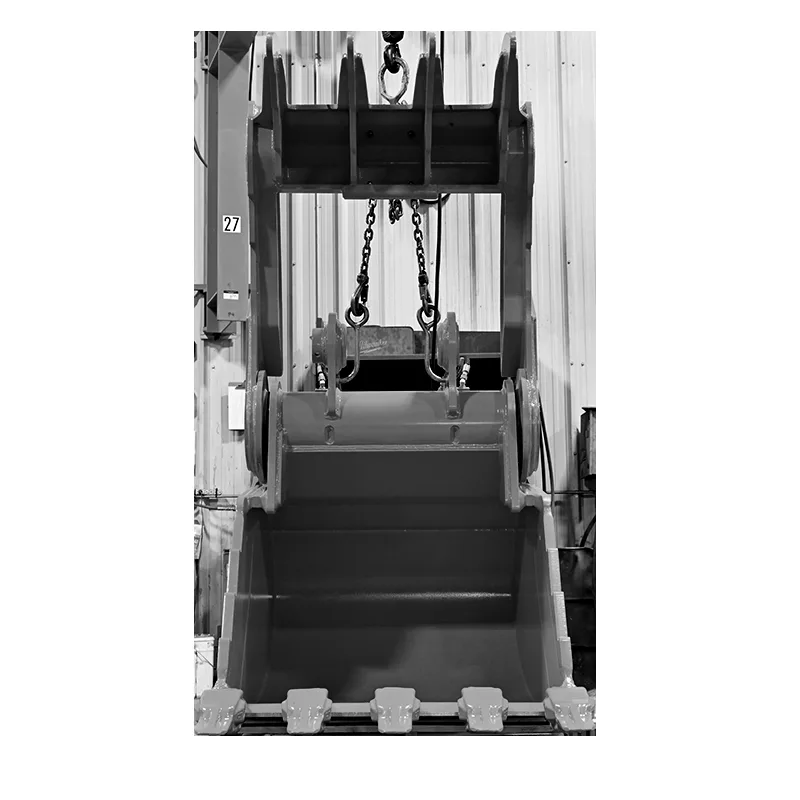

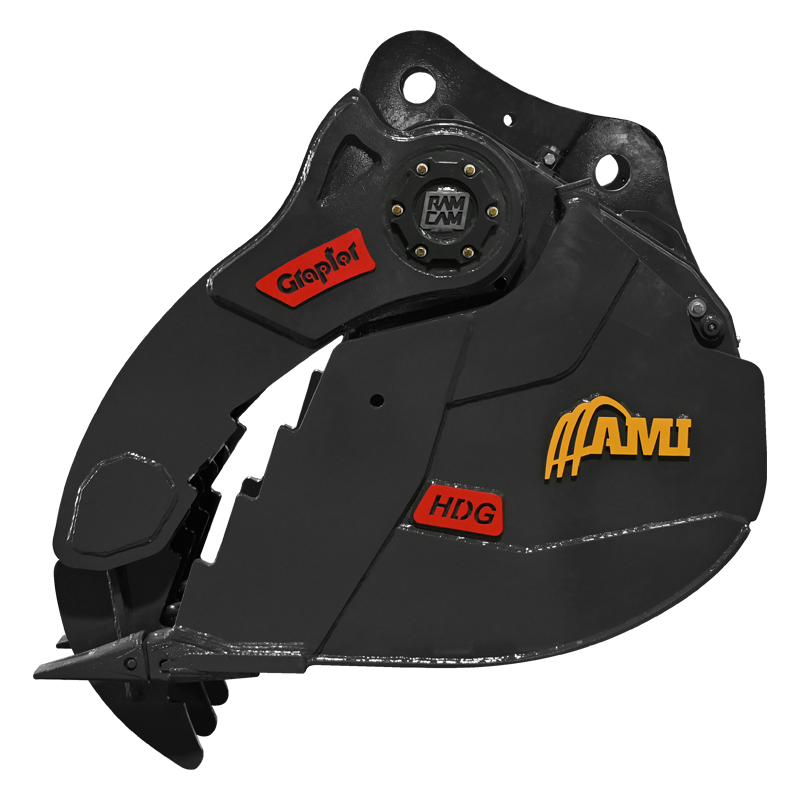

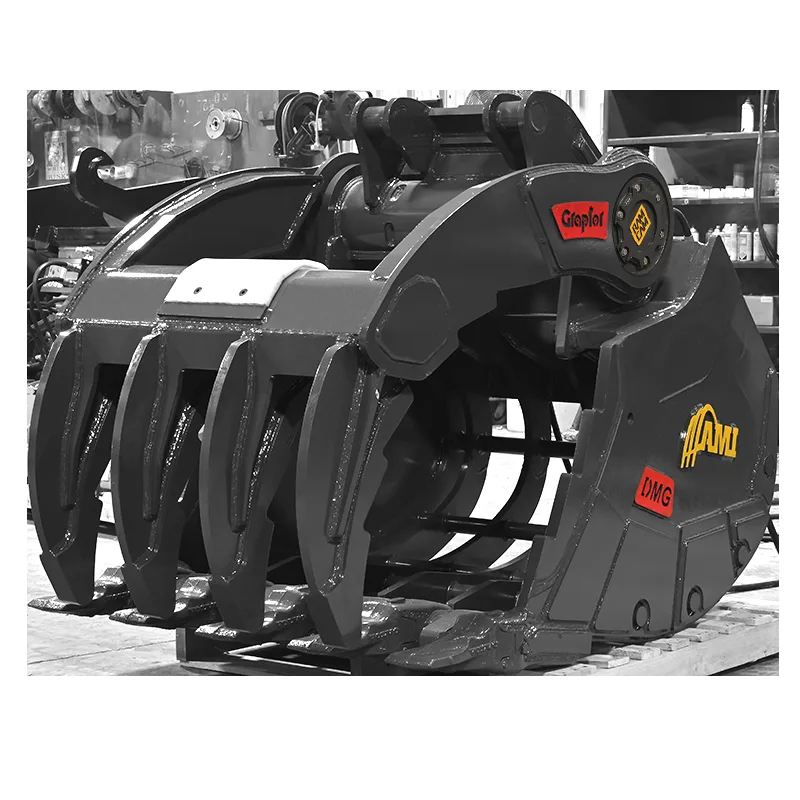

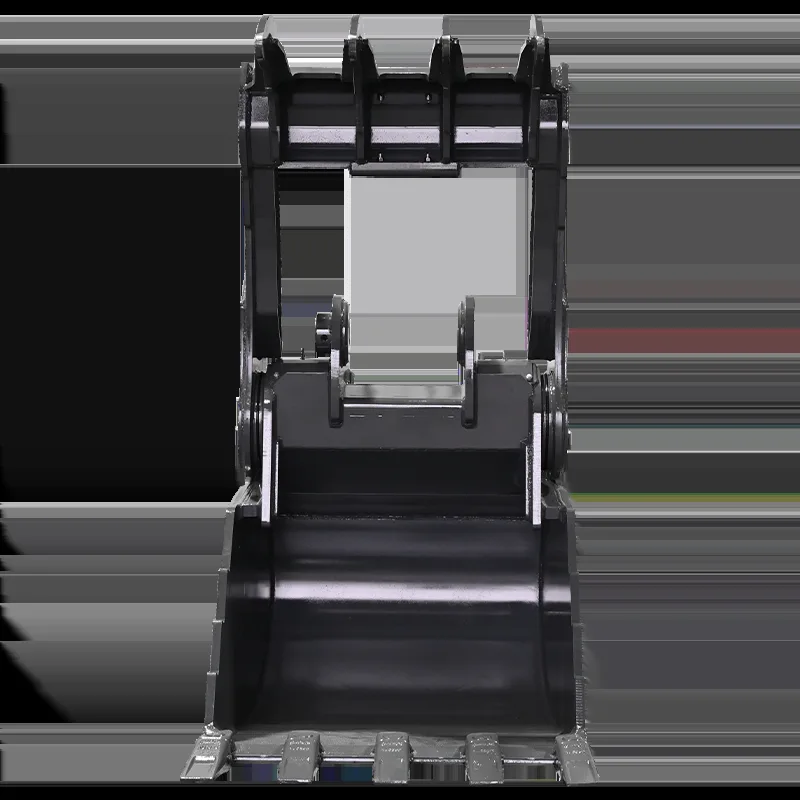

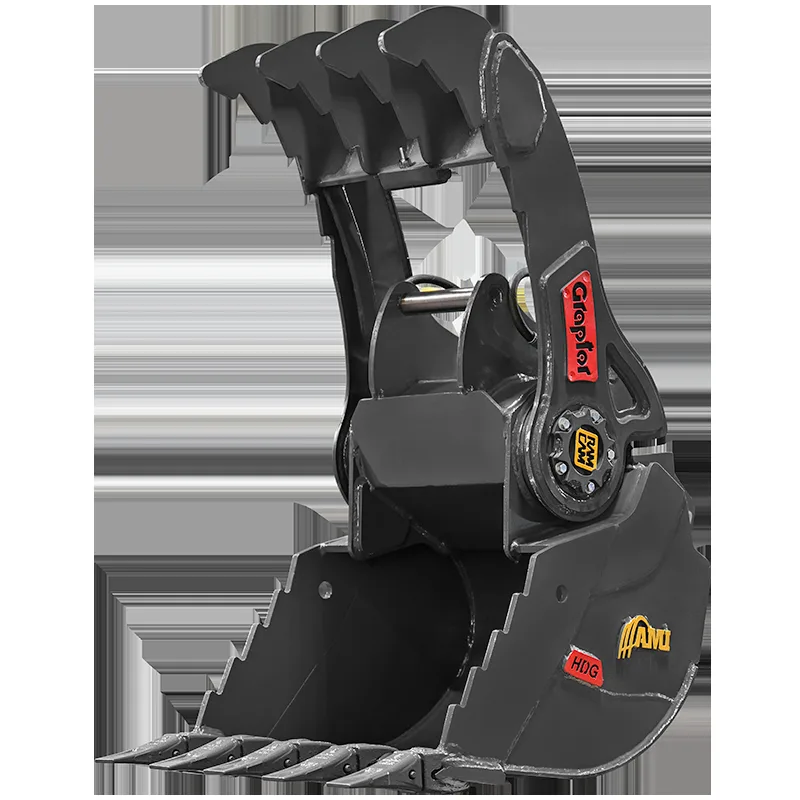

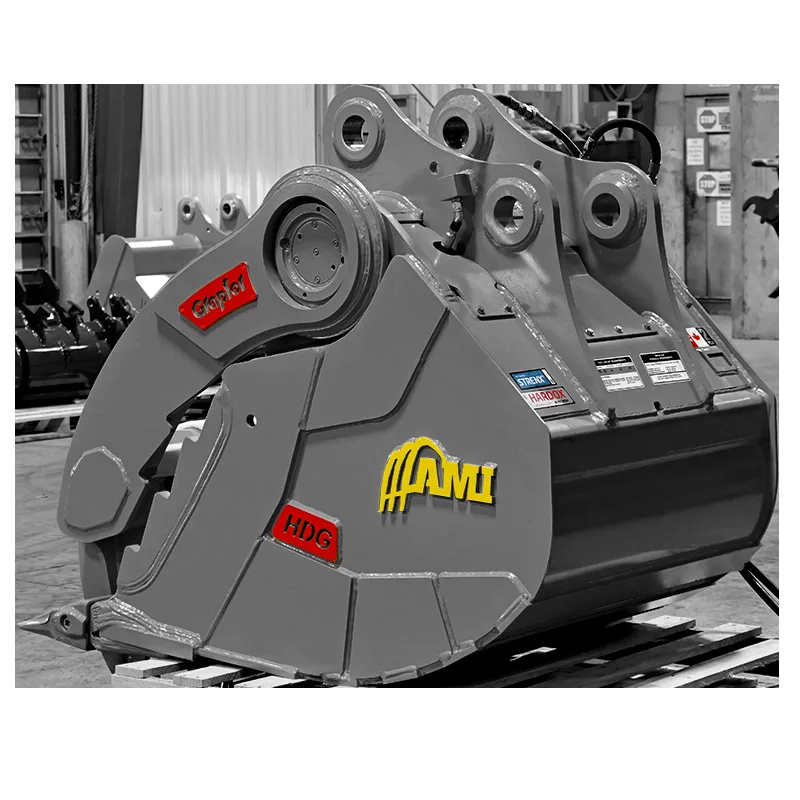

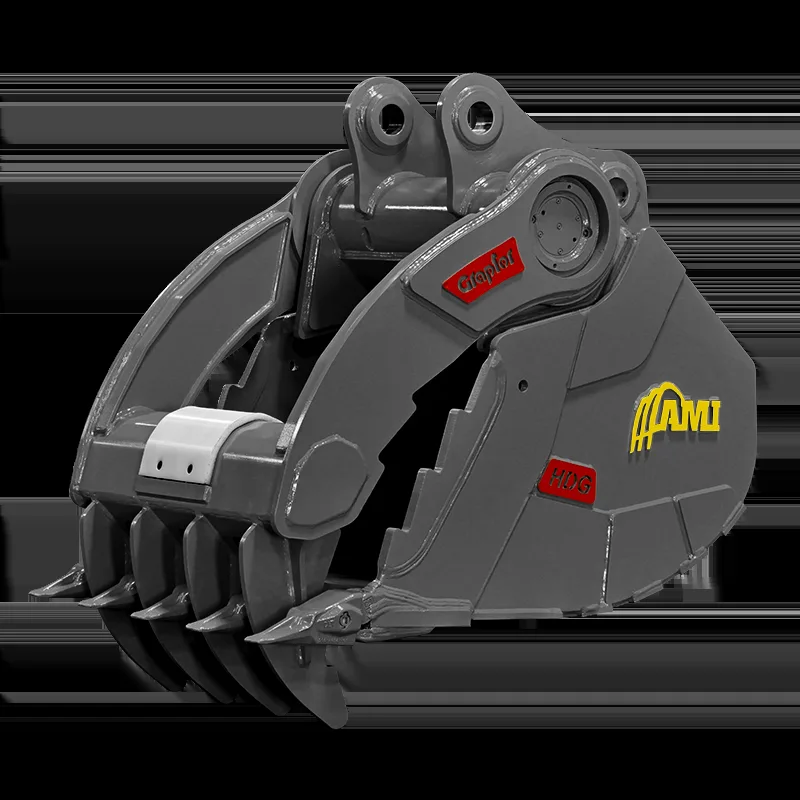

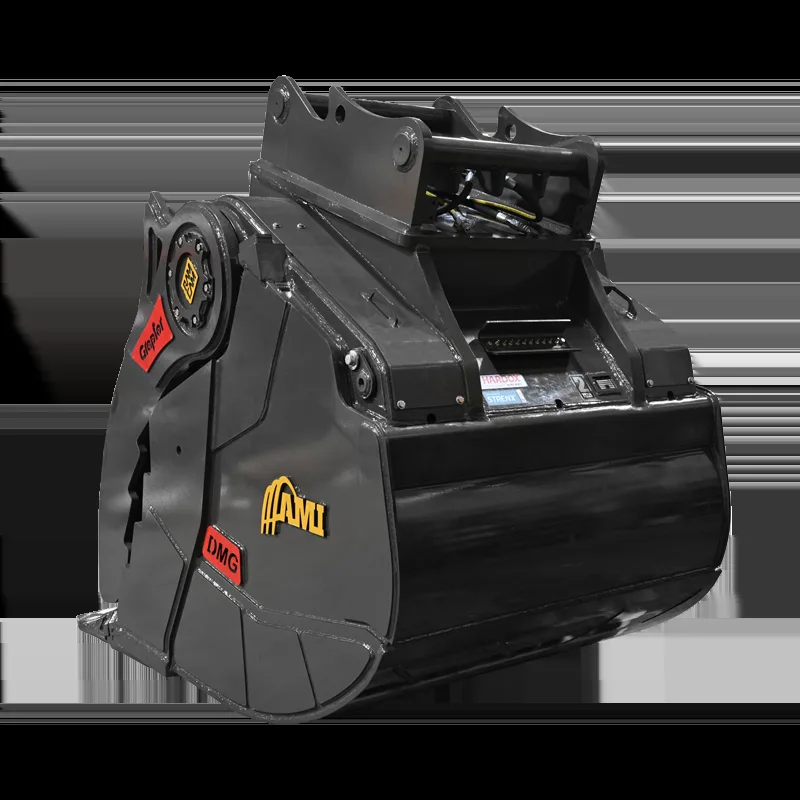

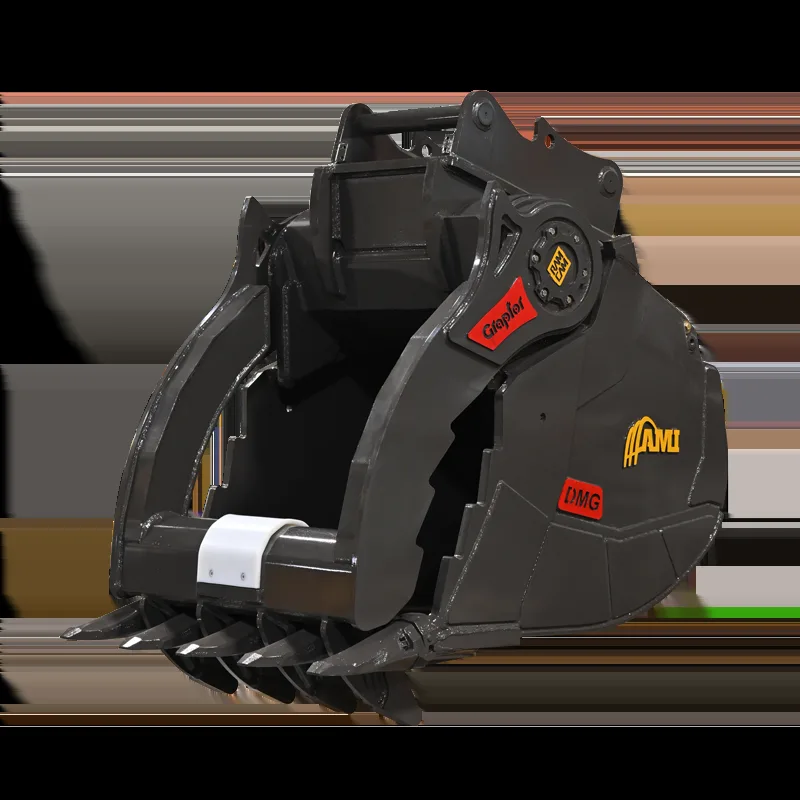

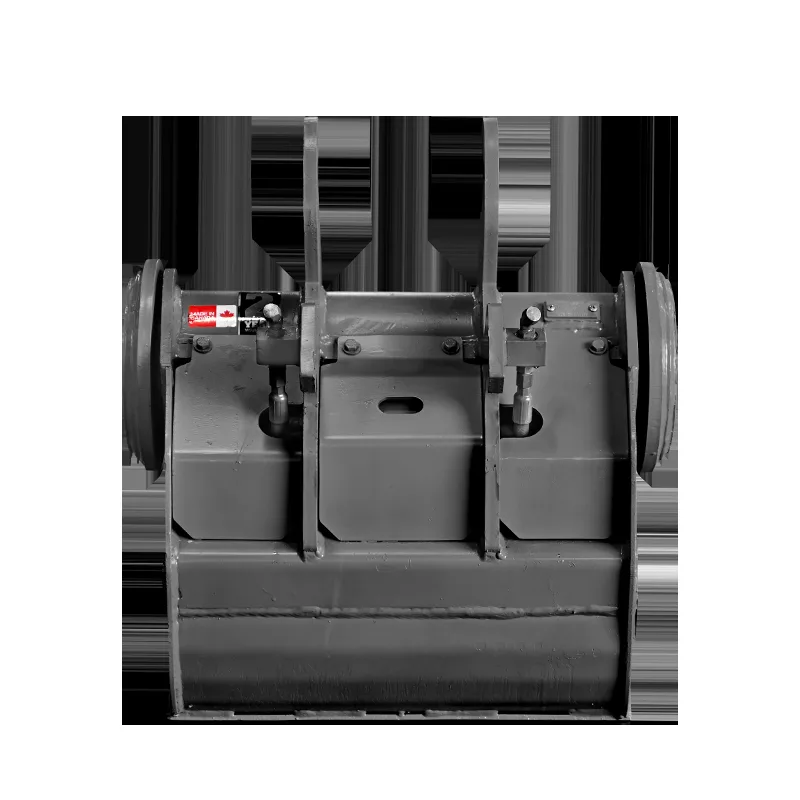

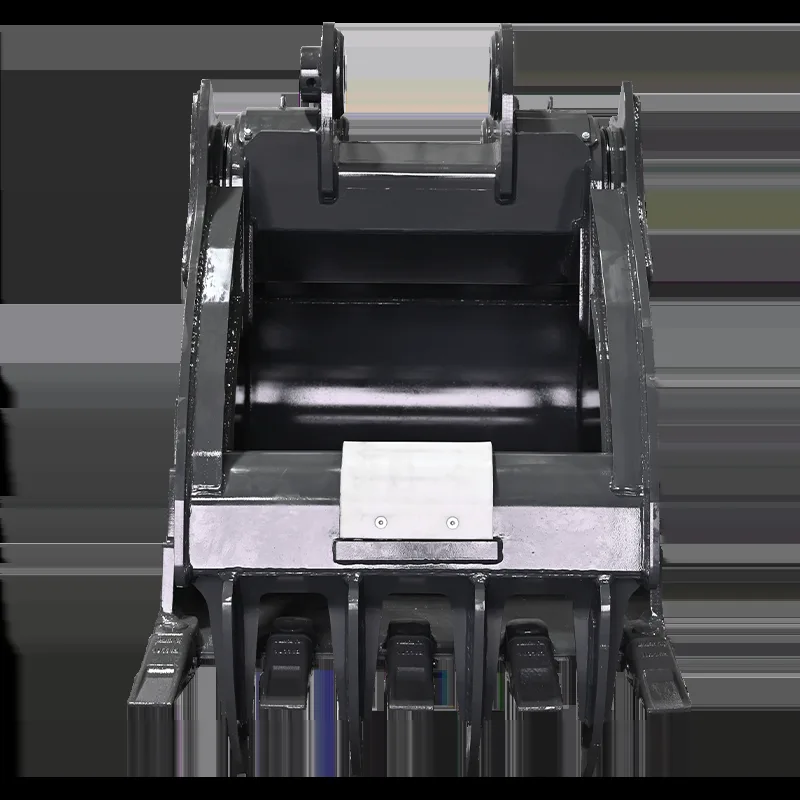

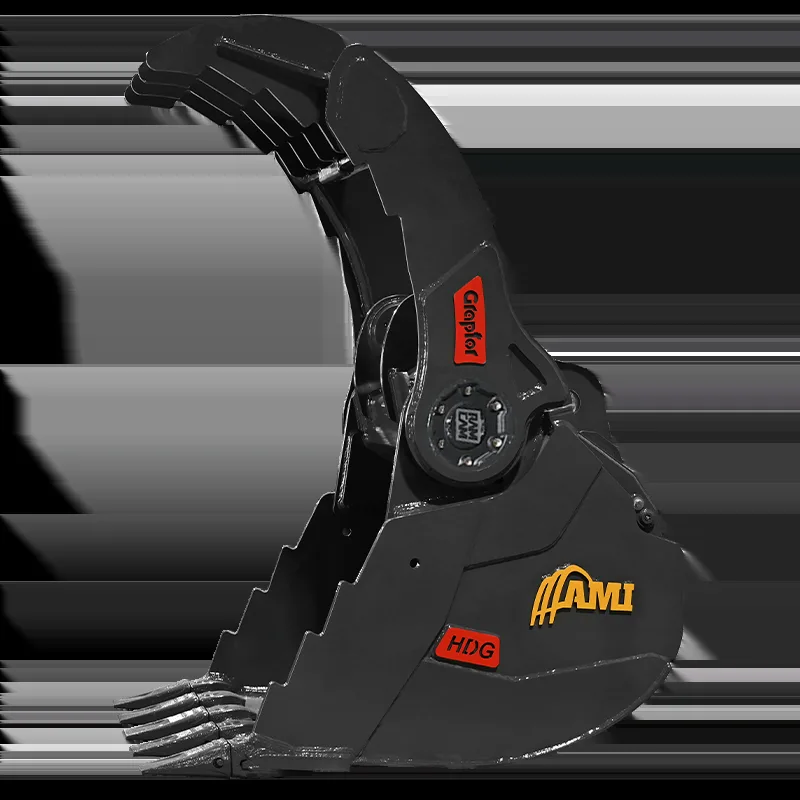

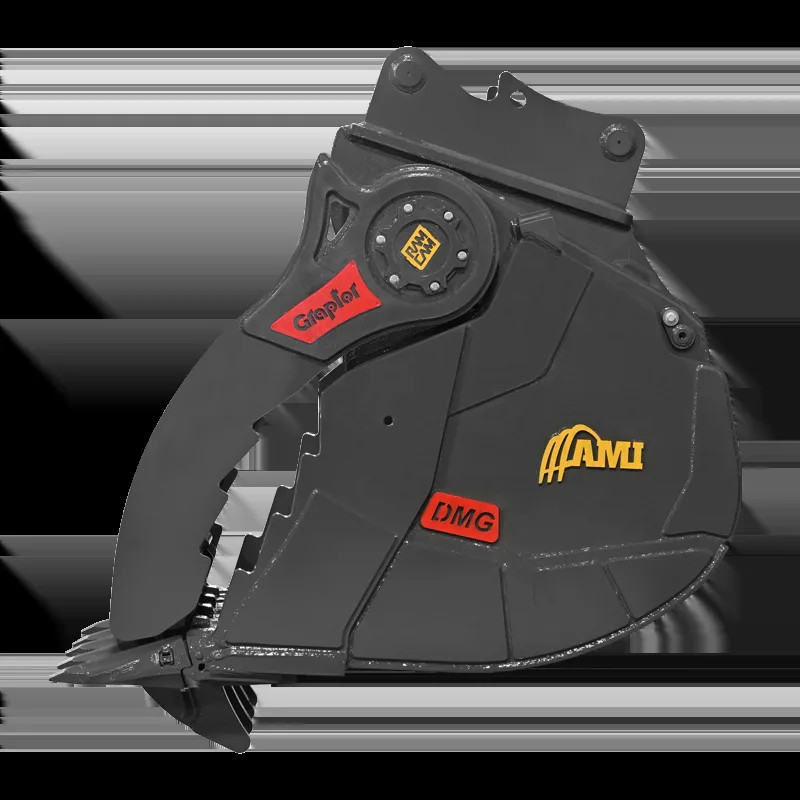

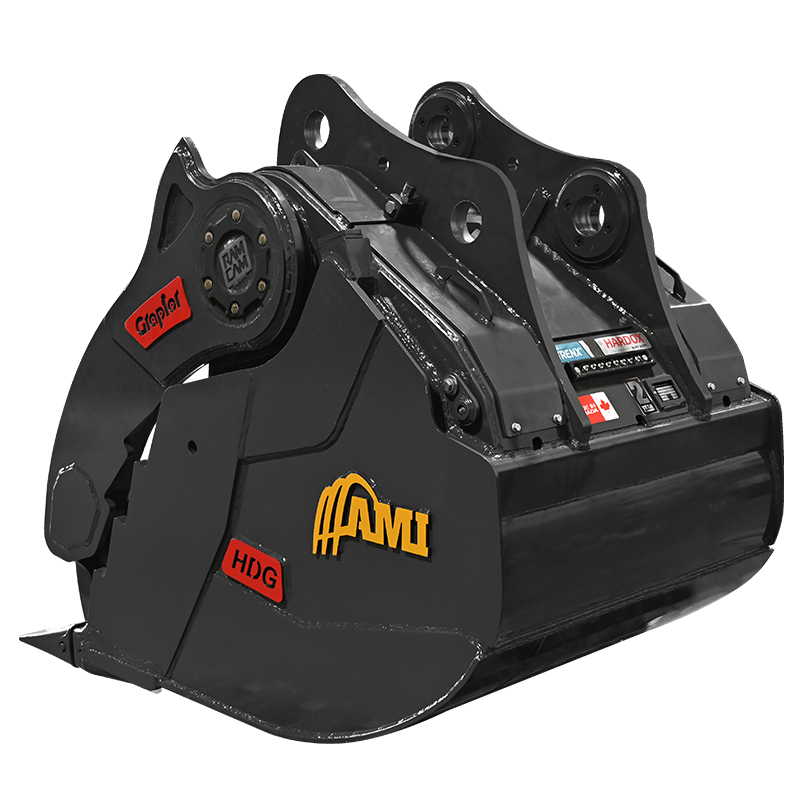

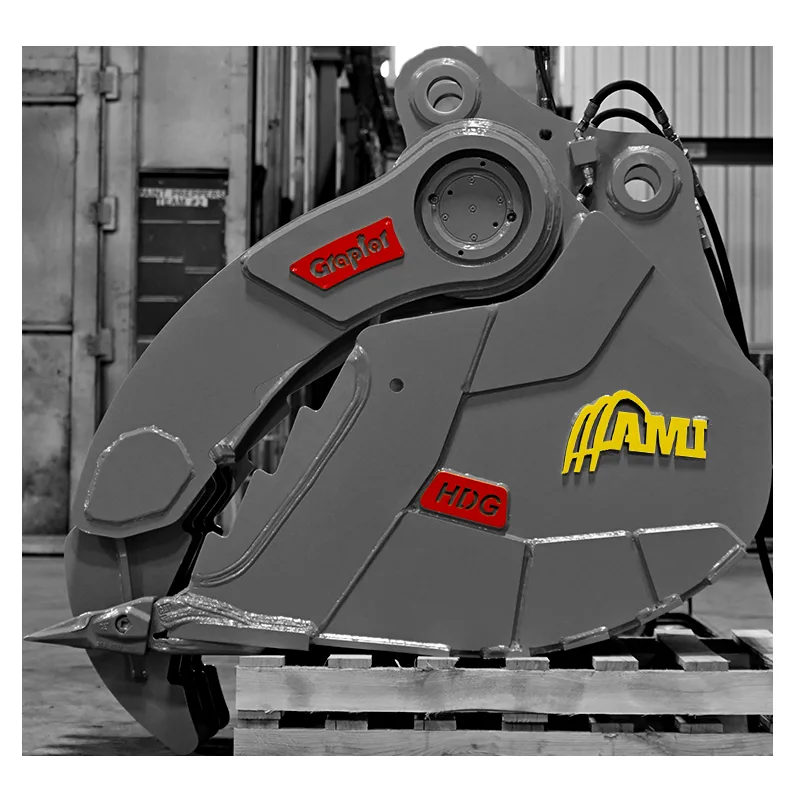

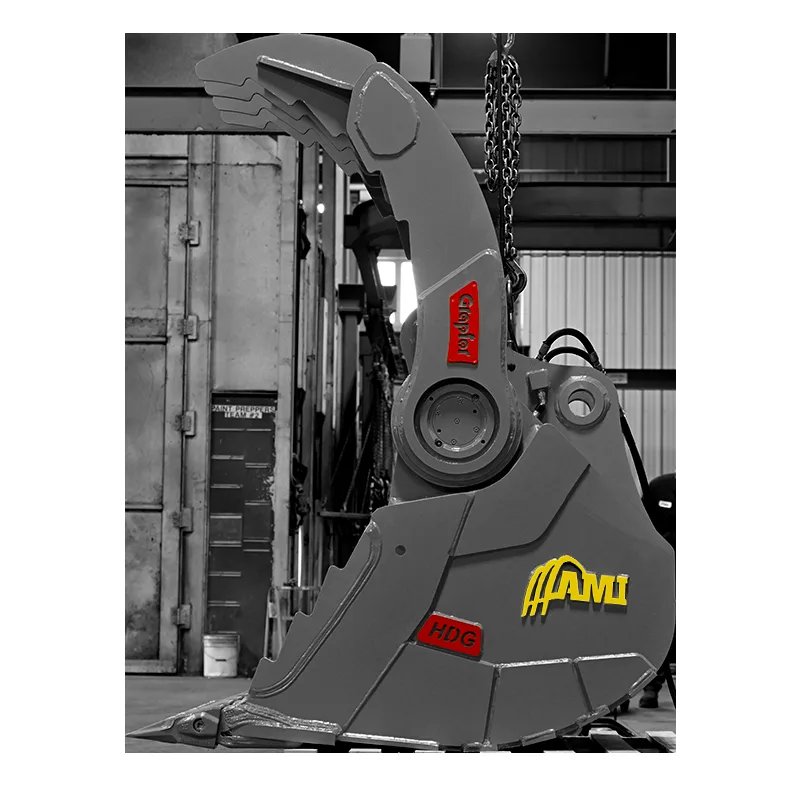

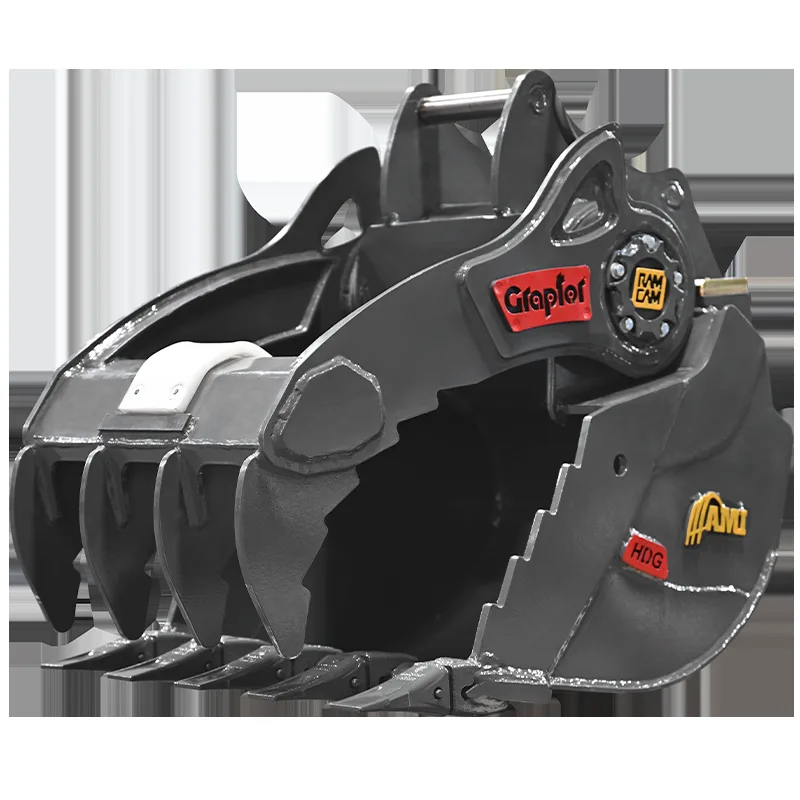

The Graptor Bucket Powered by RAMCAM is a digging bucket with a built-in rotary thumb. It is made to dig, grab, hold and demolish in one tool. The thumb keeps a constant grip on the load through the full bucket rotation, which suits demolition, sorting debris, and handling large heavy objects.
About the Grapples and Graptor Buckets
The Graptor Bucket Powered by RAMCAM is a digging bucket with a built-in rotary thumb. It is made to dig, grab, hold and demolish in one tool. The thumb keeps a constant grip on the load through the full bucket rotation, which suits demolition, sorting debris, and handling large heavy objects.

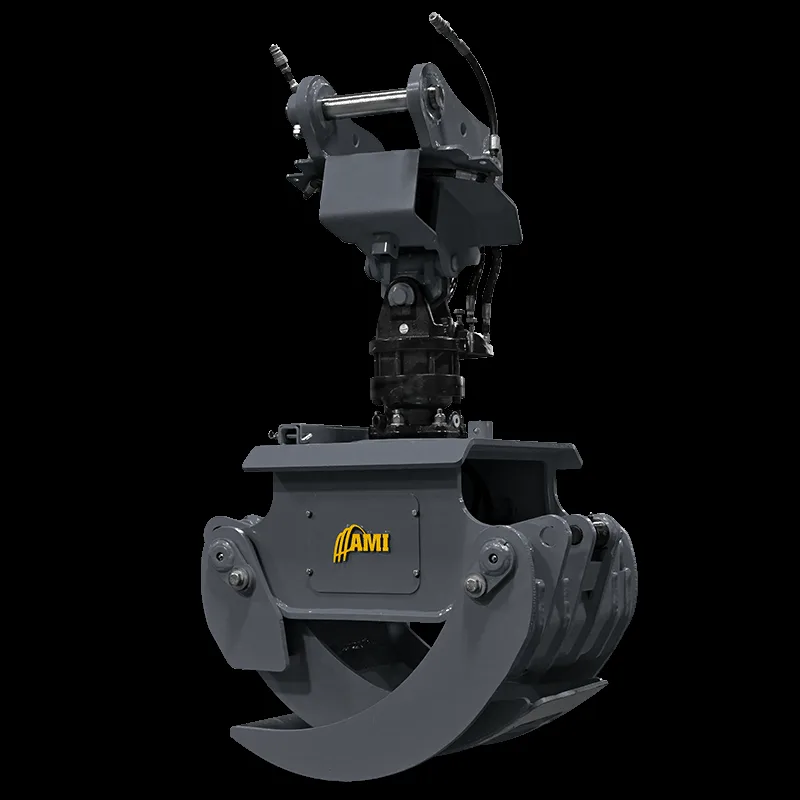

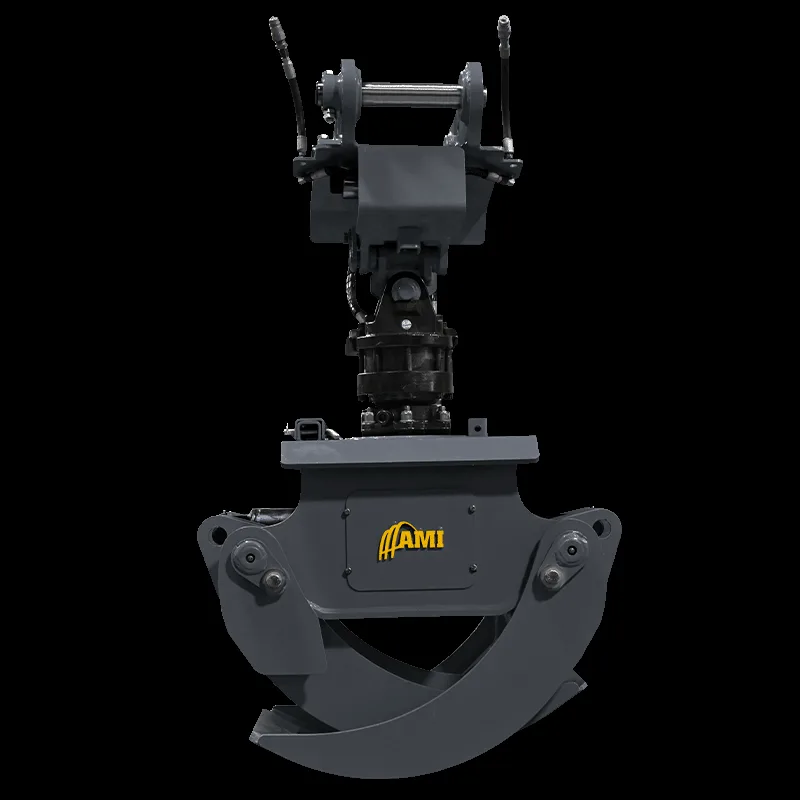

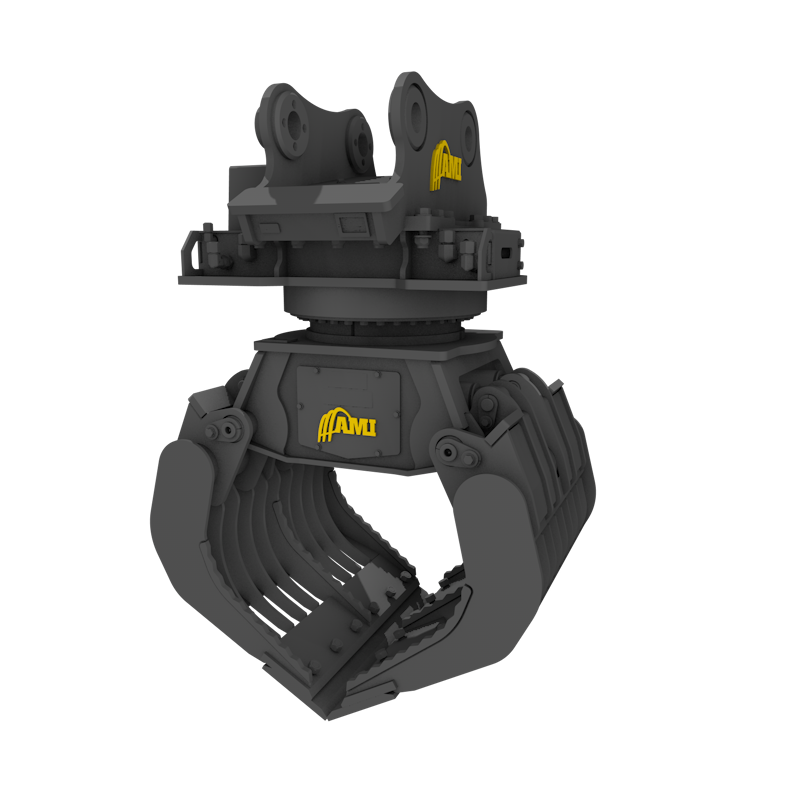

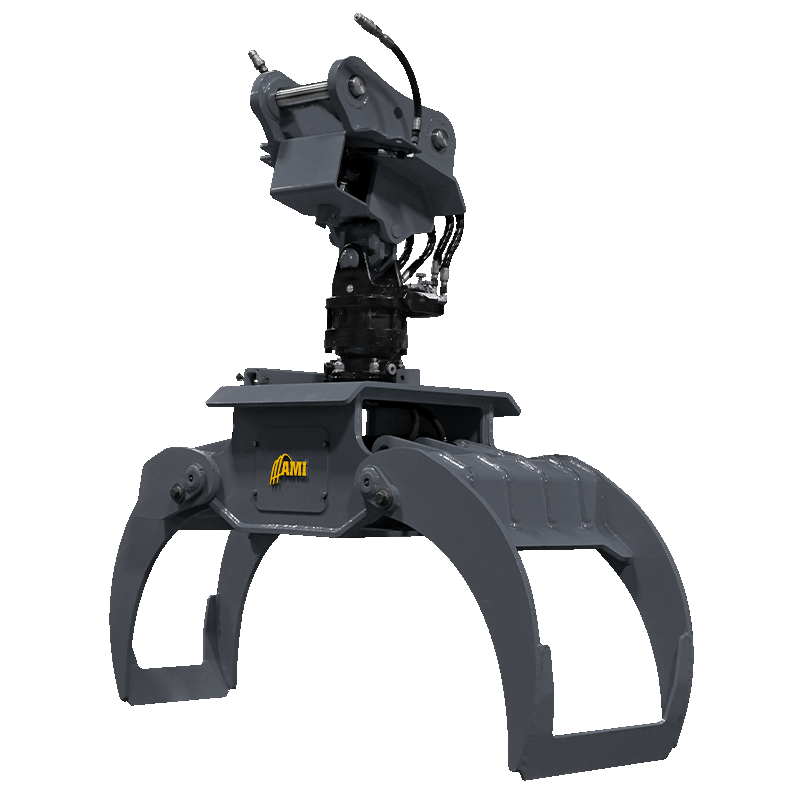

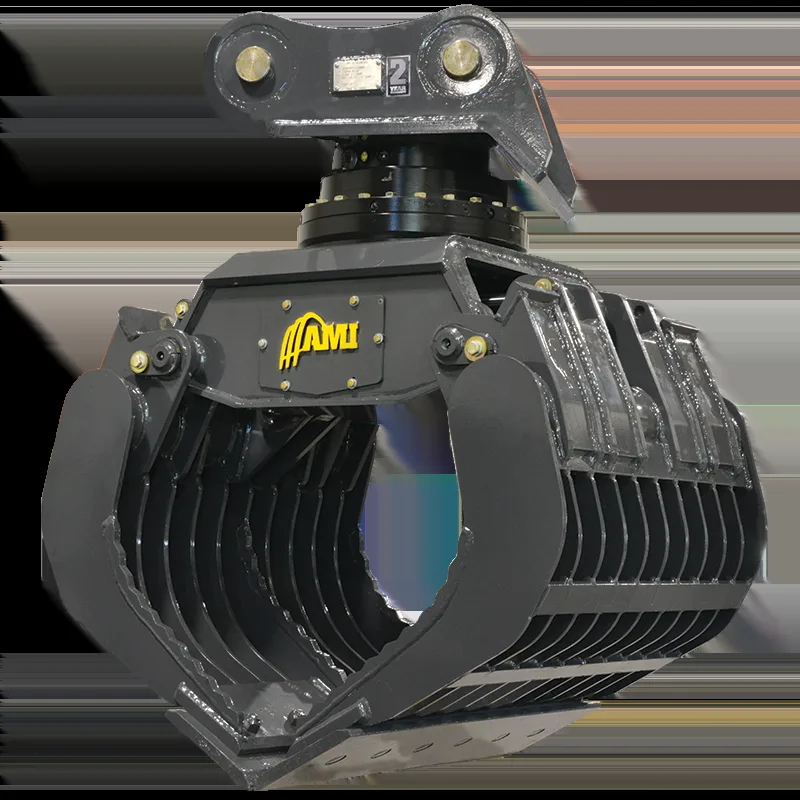

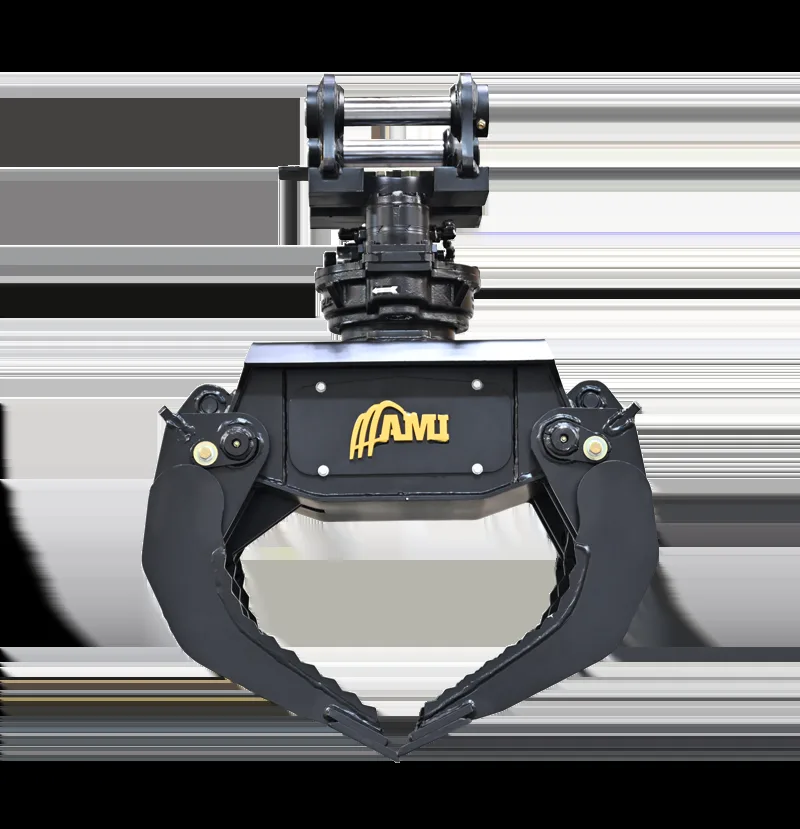

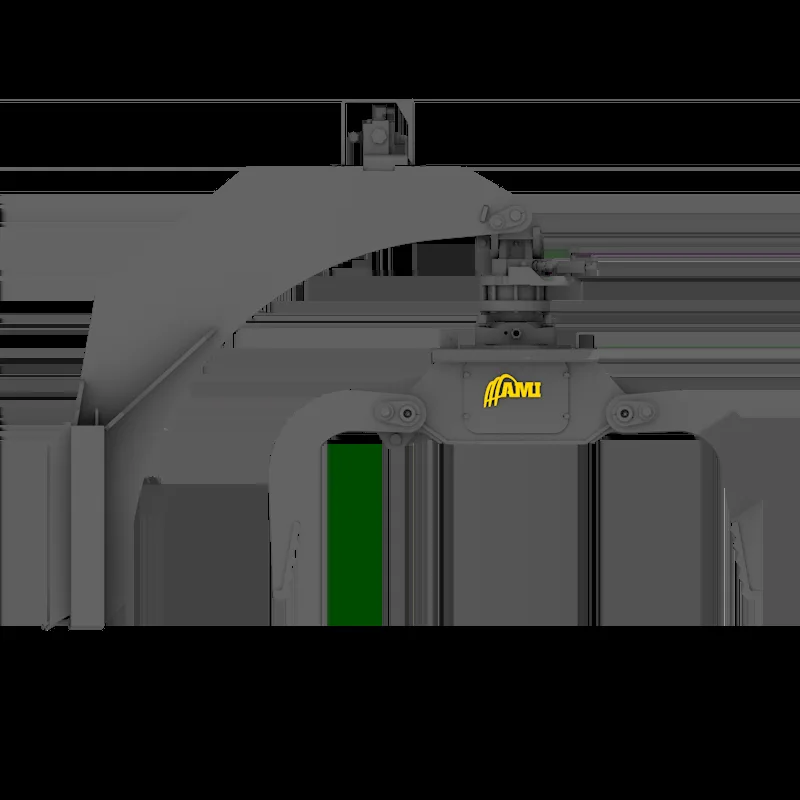

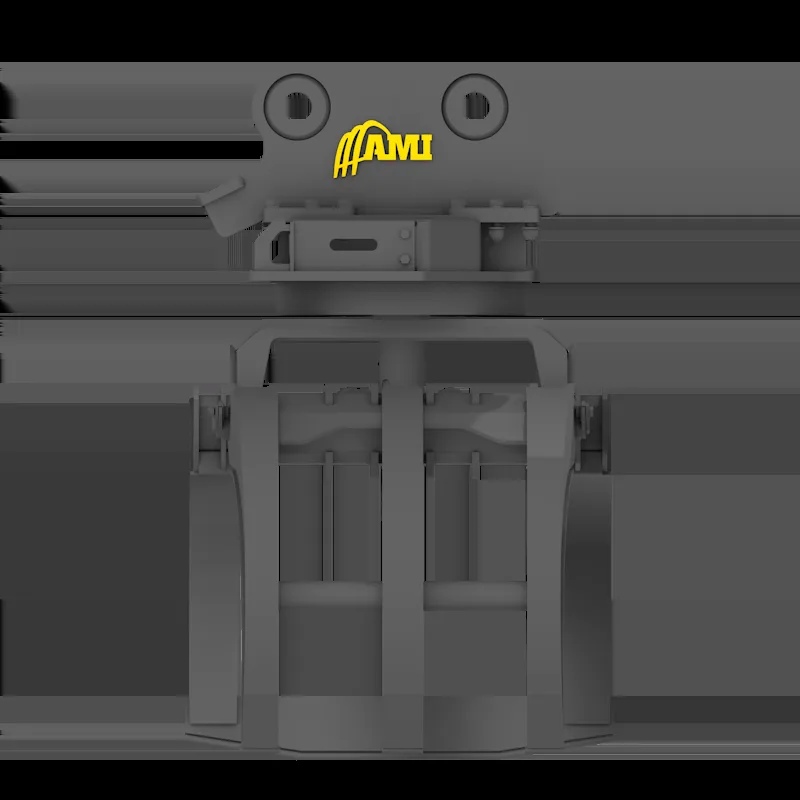

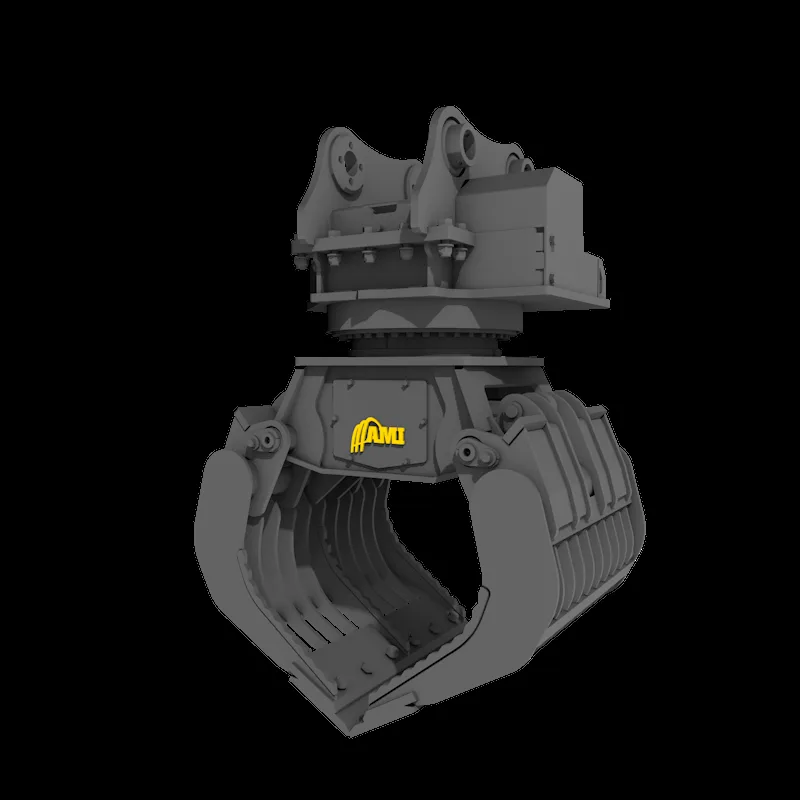

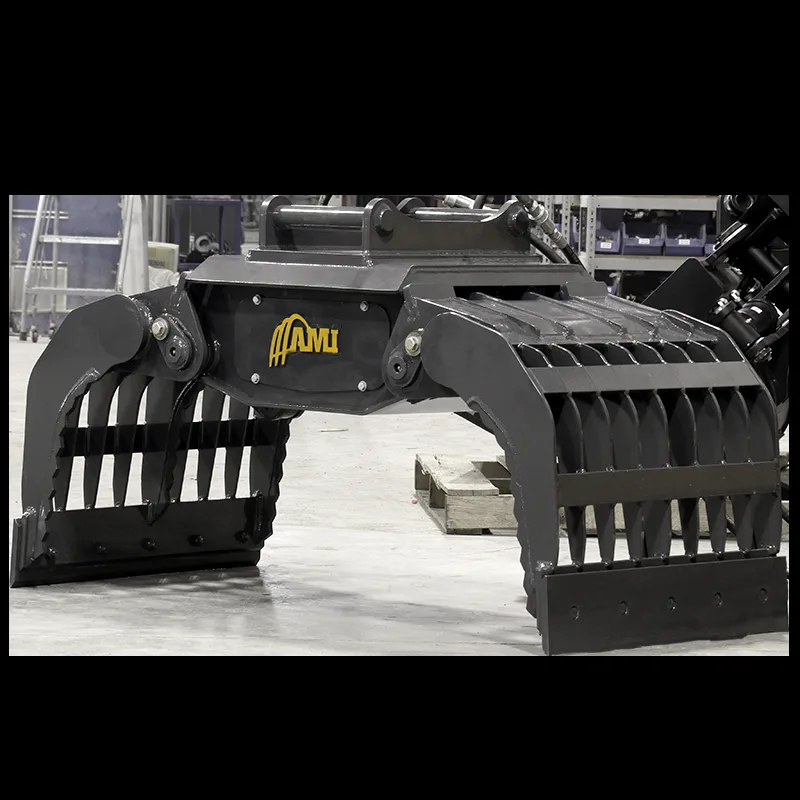

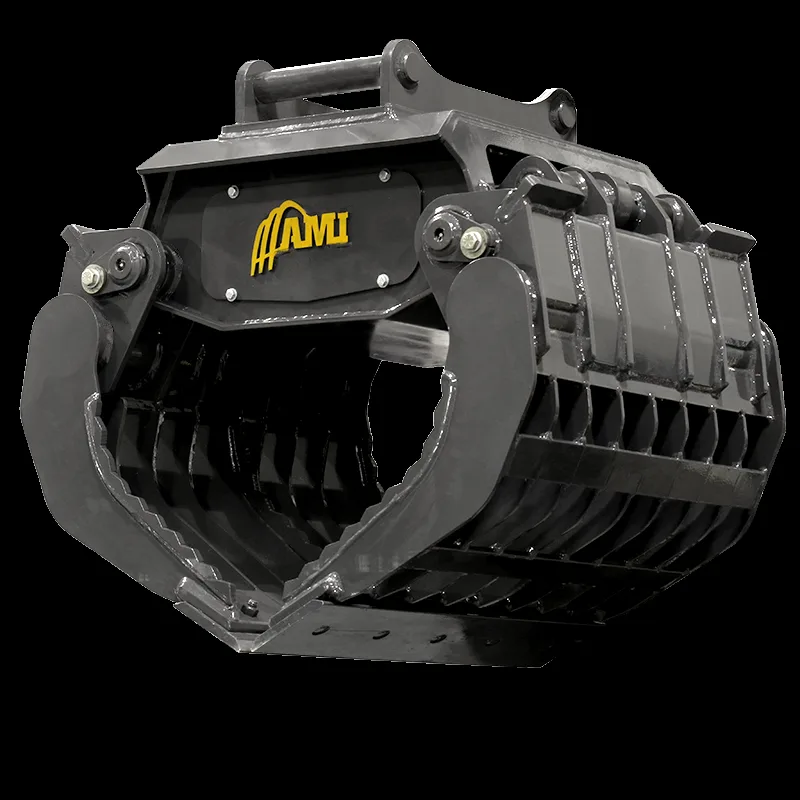

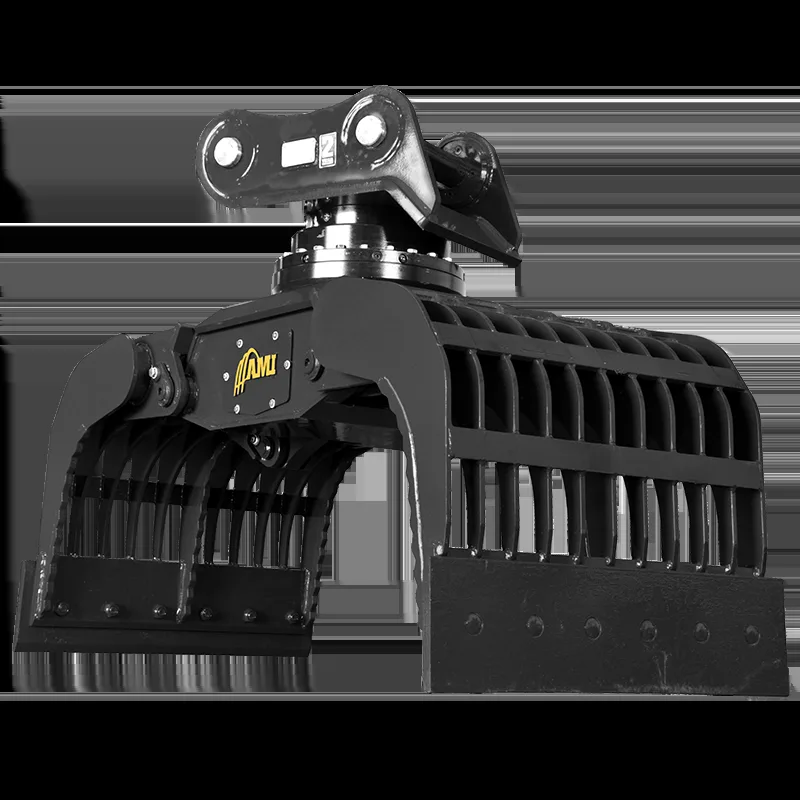

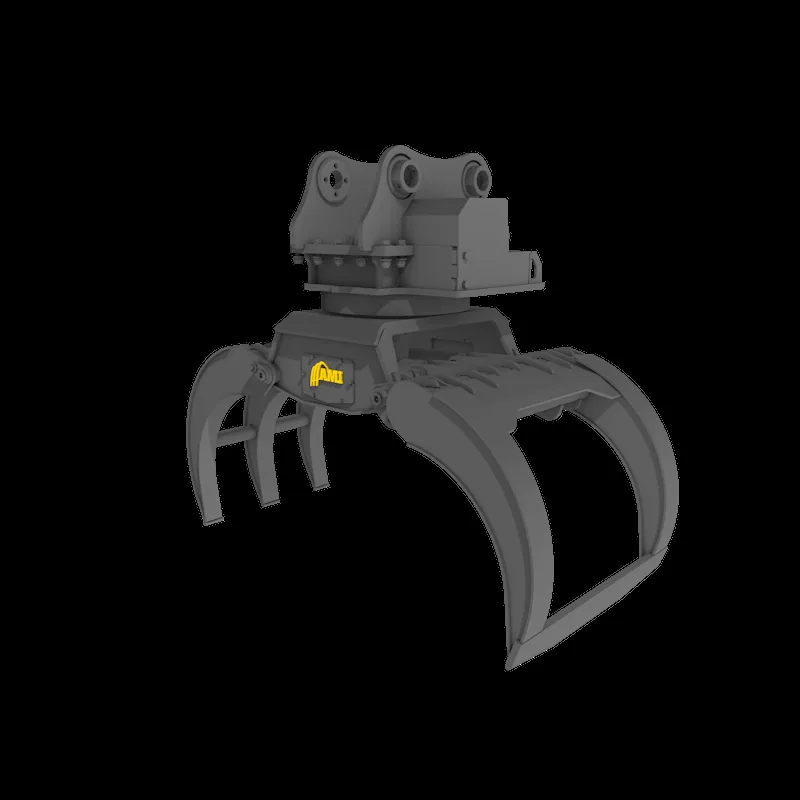

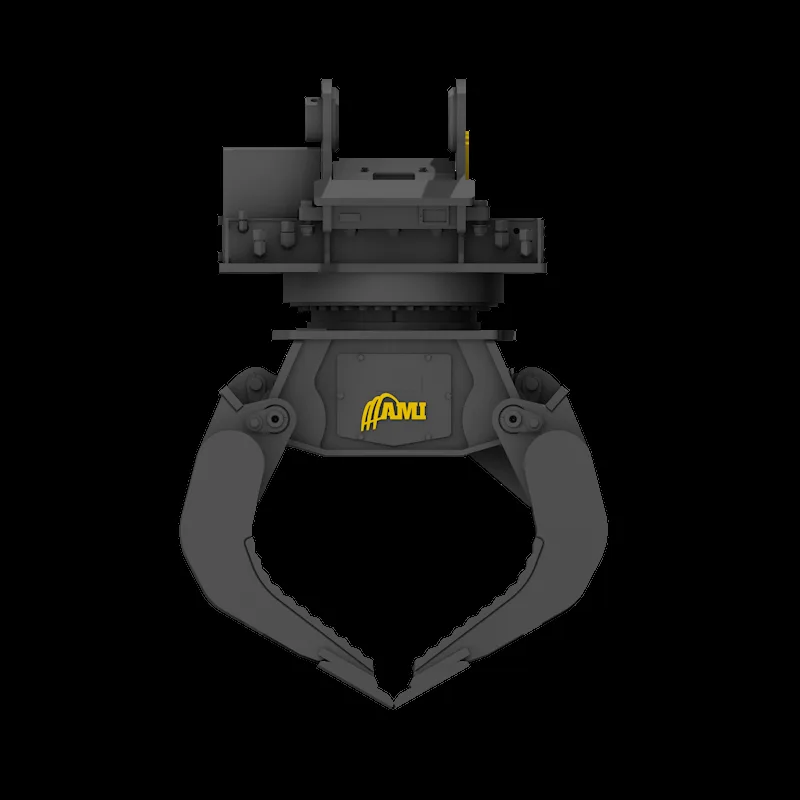

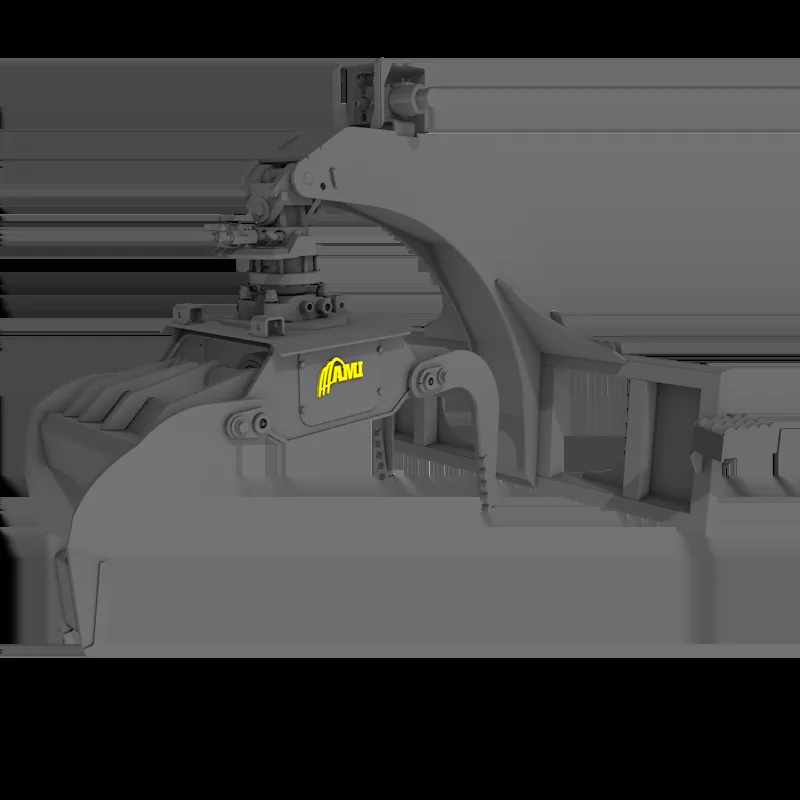

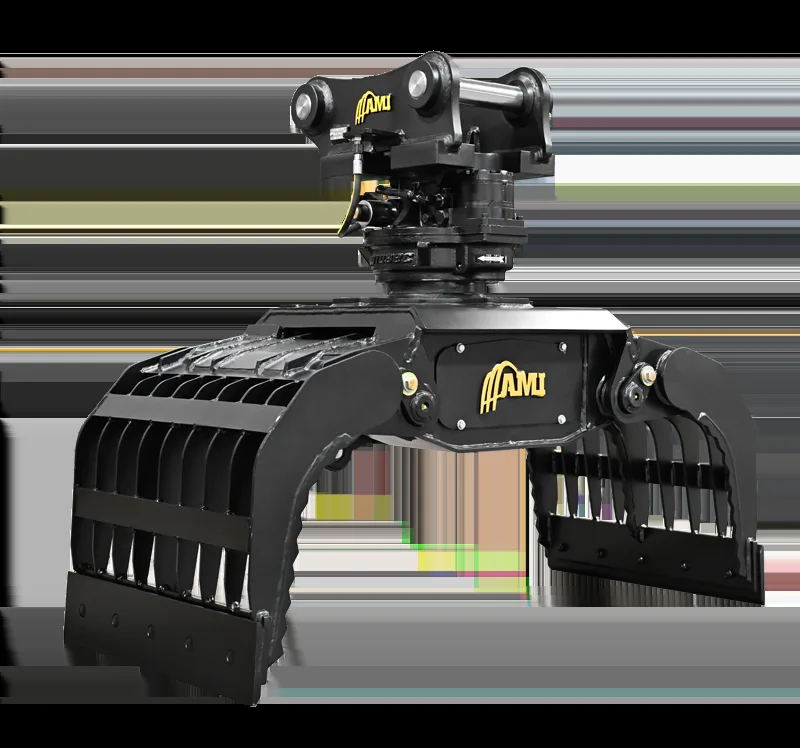

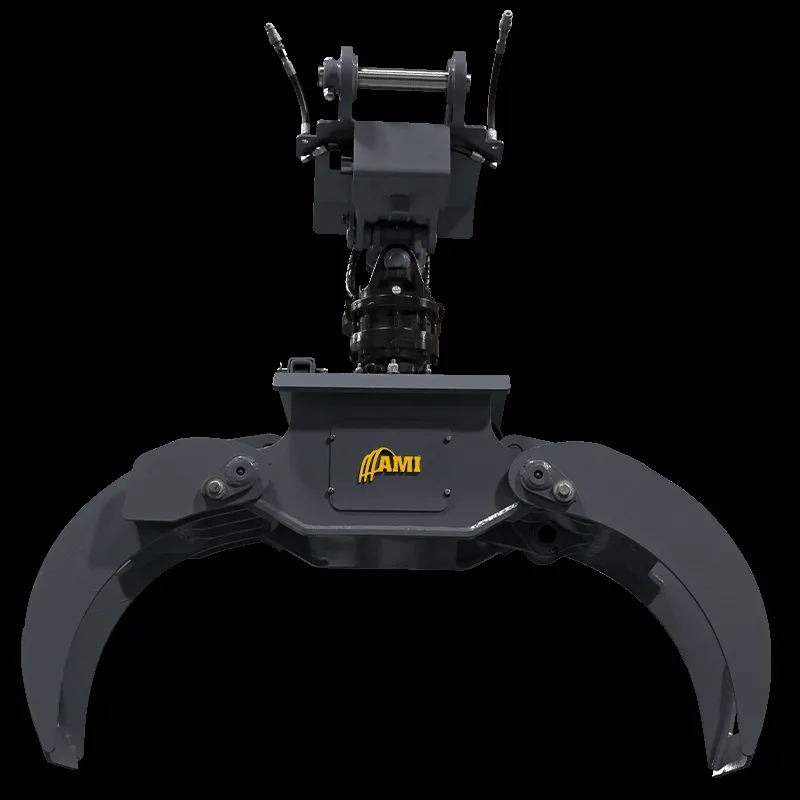

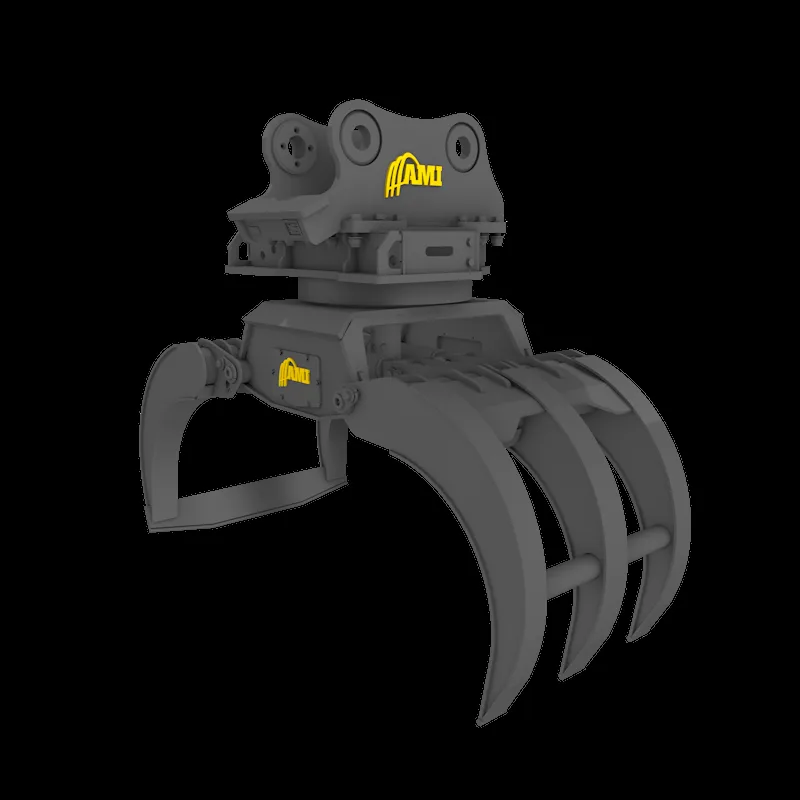

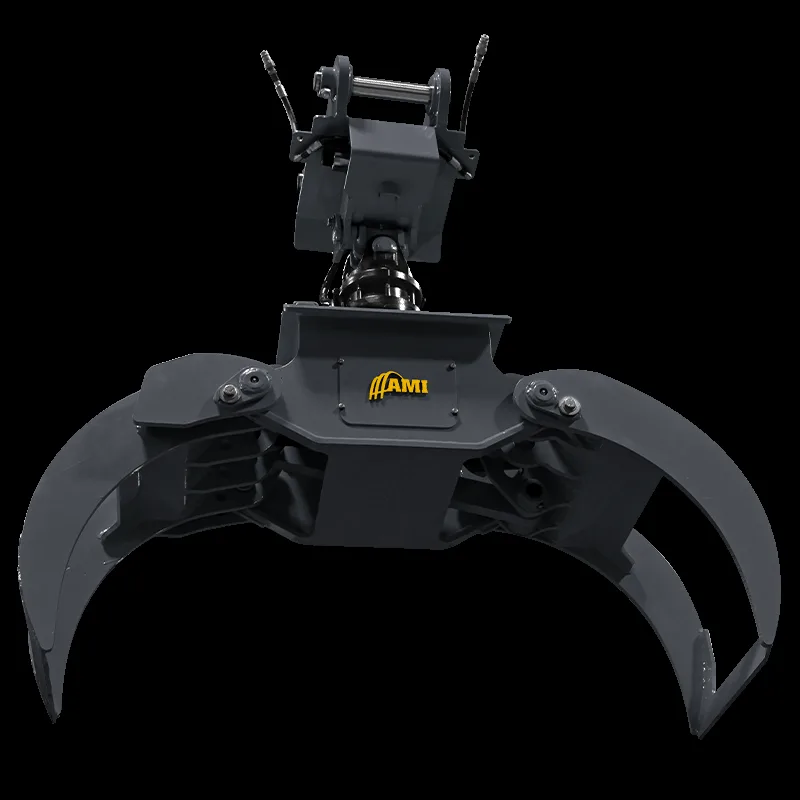

The line also includes the Extractor demolition and sorting grapple, a 360-degree rotating grapple for taking down structures and sorting material, the rotating log bunching grapple for grabbing multiple logs at once, and the dangling rotating utility grapple for landscaping and lumber yard work like placing rocks, logs and armour stone. Together they cover demolition, recycling, forestry and site work on excavators from 6,000 to 160,000 lbs.

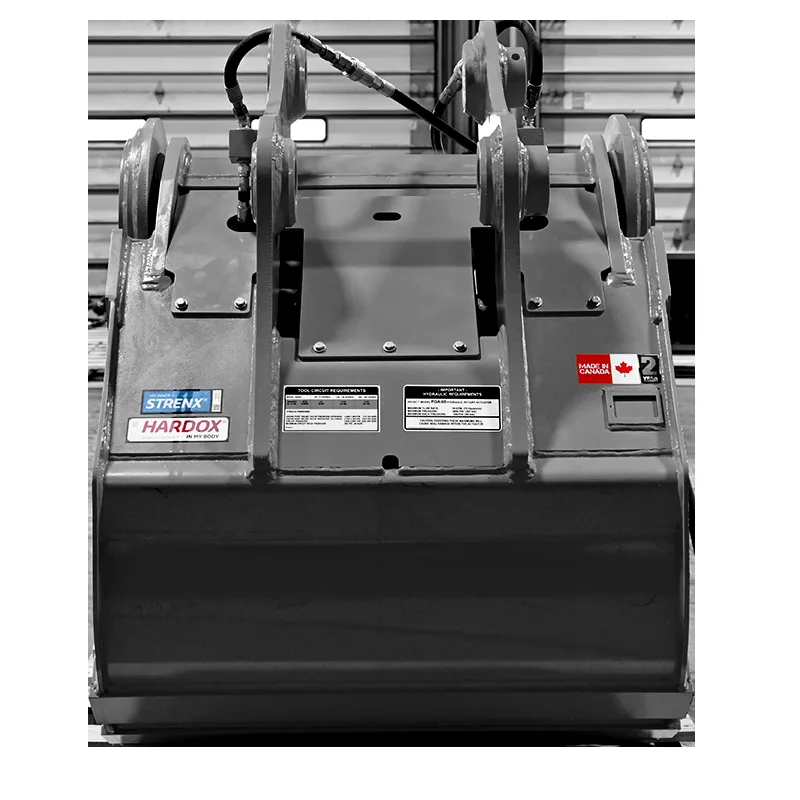

Construction uses Hardox wear plate and Strenx steel throughout the line. The Graptor Bucket's outer shell is Hardox 500 Tuf and its side bars are Hardox 450, with fully enclosed hydraulic cylinders protected from the elements and a grease bank for routine maintenance.
Features
- Built-in rotary thumb holds the load through the full bucket rotation
- RAMCAM drivetrain transfers cylinder force through an enclosed, splined camshaft
- Fully enclosed hydraulic cylinders stay protected from debris and weather
- Up to 84% more crushing force than the previous Graptor design
- Aggressive serrated side bars made from Hardox 450 wear plate

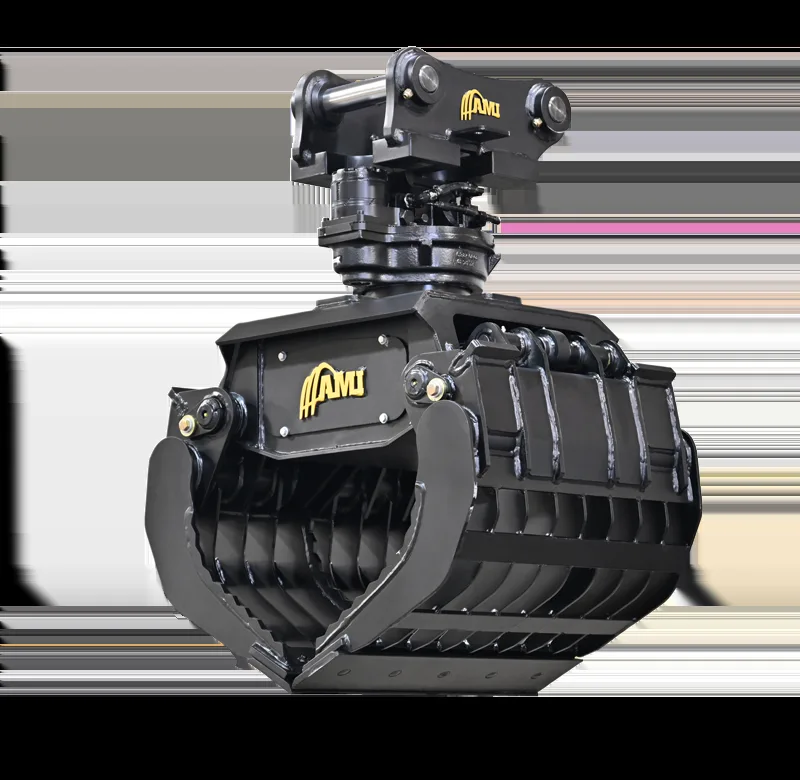

- Extractor models rotate 360 degrees with edge-to-edge jaw contact

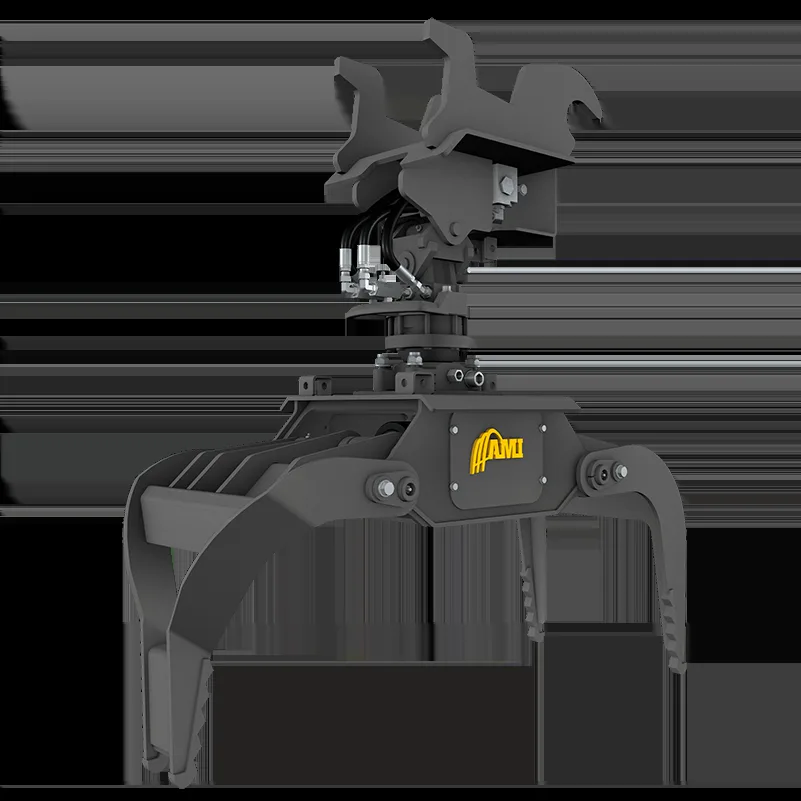

- Utility grapple opens up to 60 inches and hangs plumb through the tilt range
Models: Graptor Bucket Powered by RAMCAM: GRHDRC2433E38 through GRHDRC120140E72. Extractor demolition and sorting grapple: GR0610SGJF through GR80100SGJF (compact and excavator). Rotating log bunching grapple: GR0610LBG through GR80100LGJF. Dangling rotating utility grapple: GR2433UGRH through GR4560UGRH. Select models are listed under AMI's Fast Track Program for faster manufacture and shipping at no extra charge.
Specifications
| Machine class (excavator) | 24,000 - 160,000 lbs |
| Bucket widths | 38 in - 72 in |
| Bucket capacities | 0.690 - 4.733 yd3 |
| Bucket teeth / grapple tines | 5 - 6 teeth, 4 - 5 tines |
| Bucket weights | 2,498 - 13,979 lbs |
| Utility grapple jaw opening | Up to 60 in |
| Log grapple jaw openings | 54 in - 89 in |
