Digging Buckets

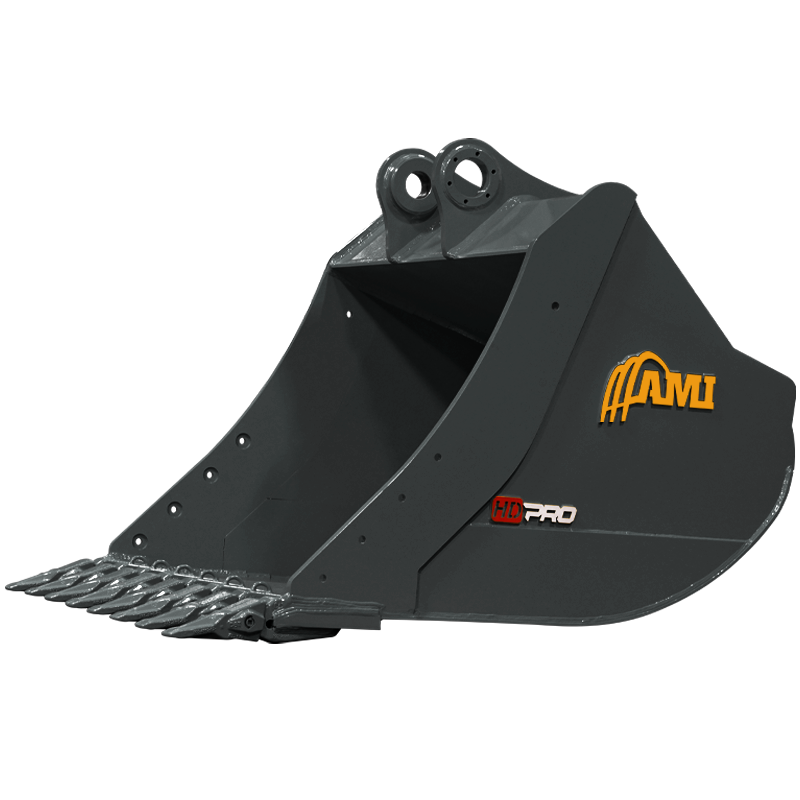

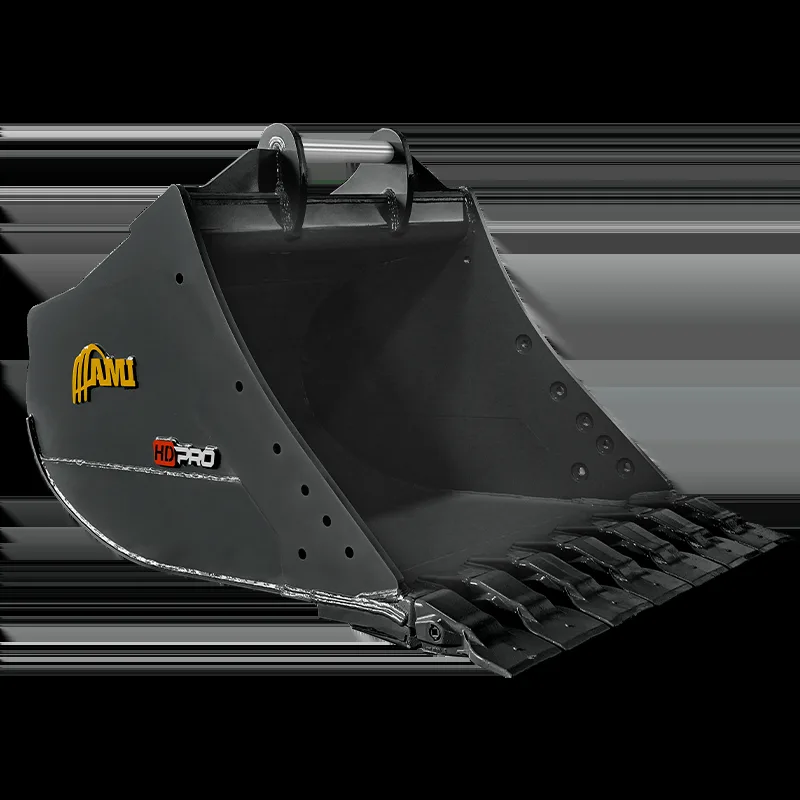

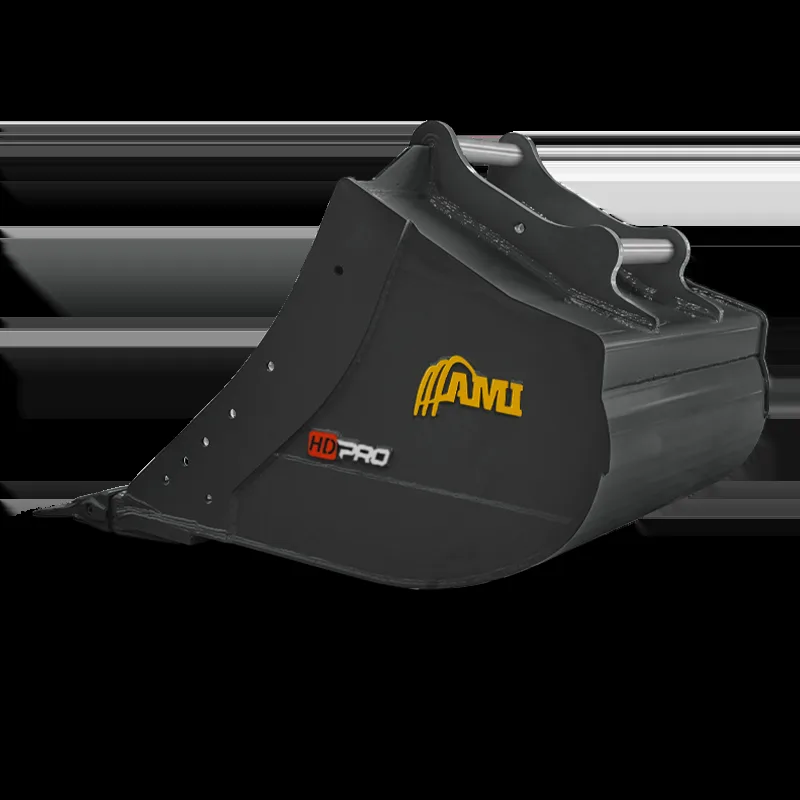

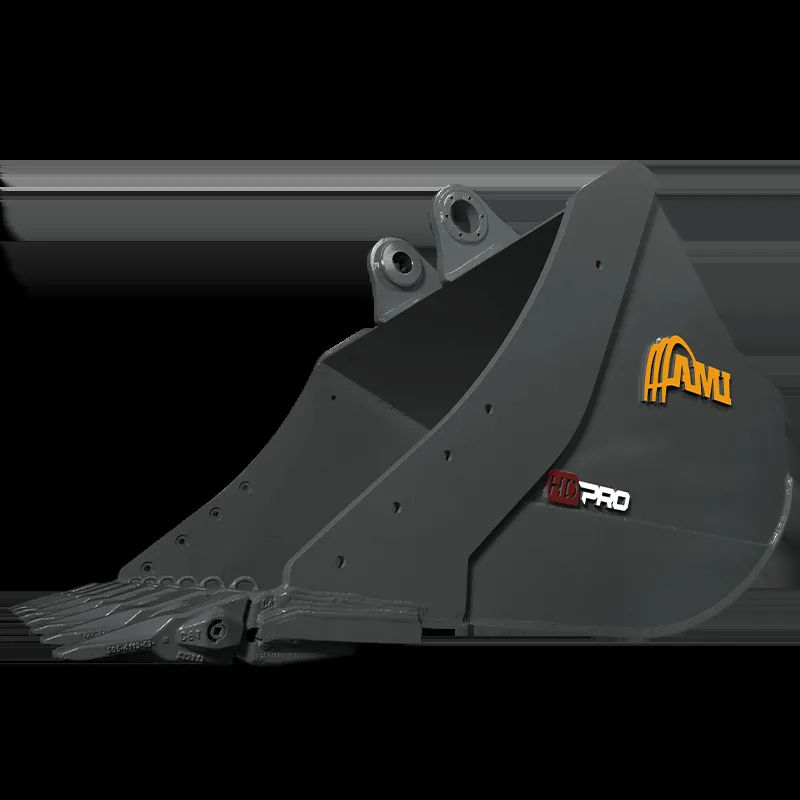

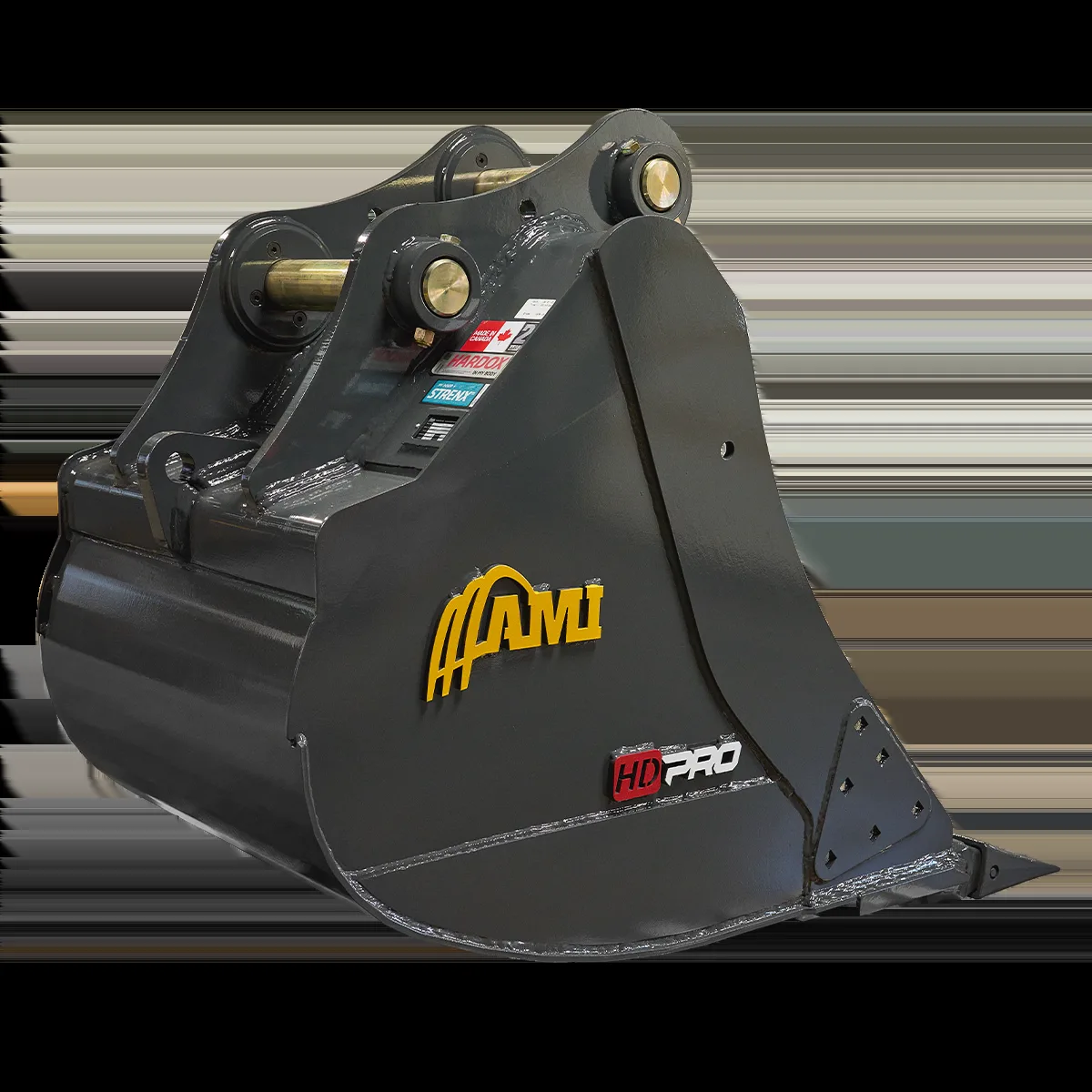

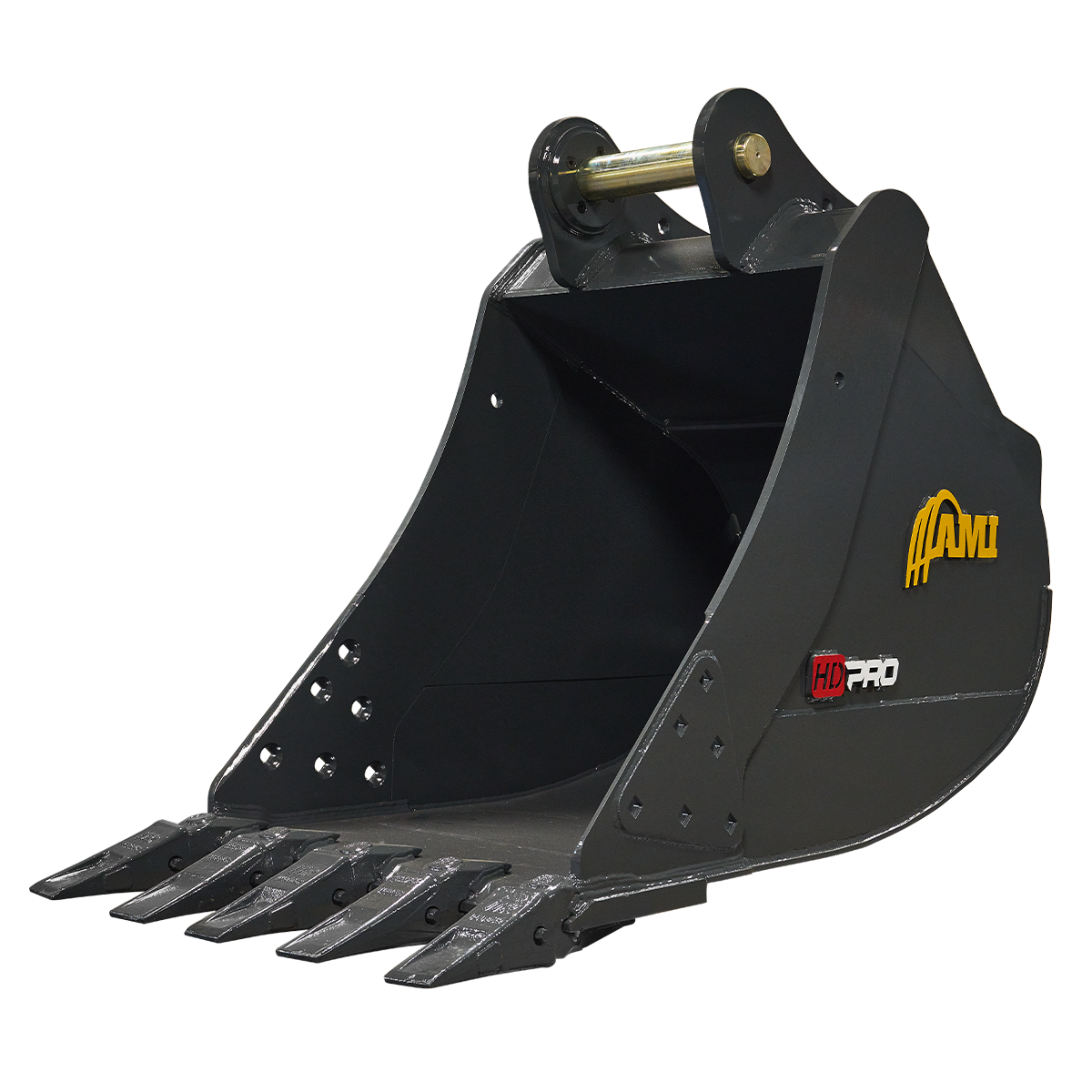

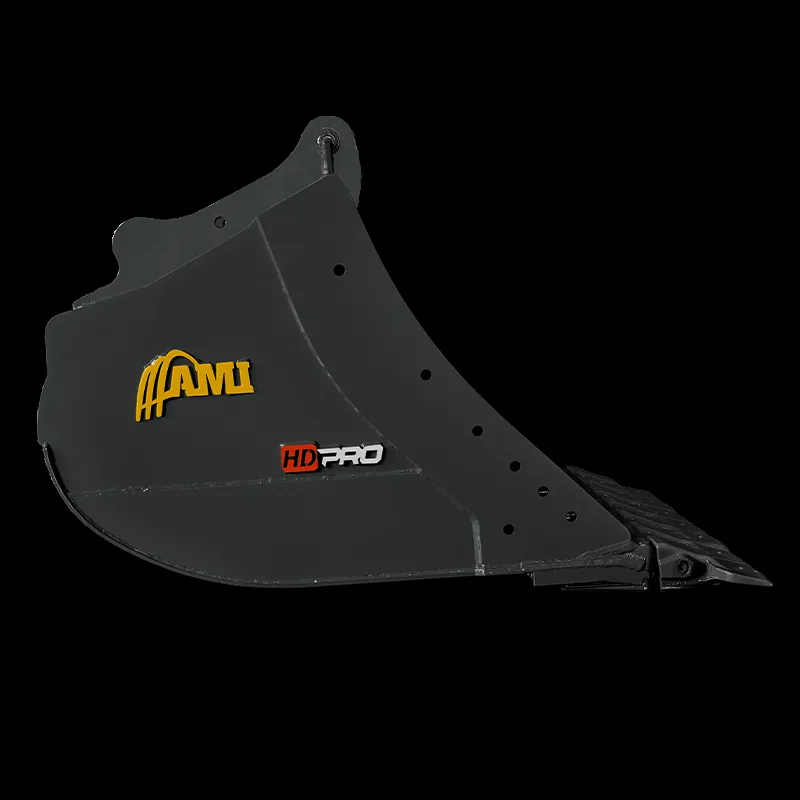

AMI's main digging bucket line for excavators is the PRO Series. The HD Pro is built to move more material per pass without upsizing the excavator. AMI lists 10 percent more payload from a lighter bucket. The HD Pro Plus (HD Pro+) goes further, with higher capacity for mass material moving and.
About the Digging Buckets

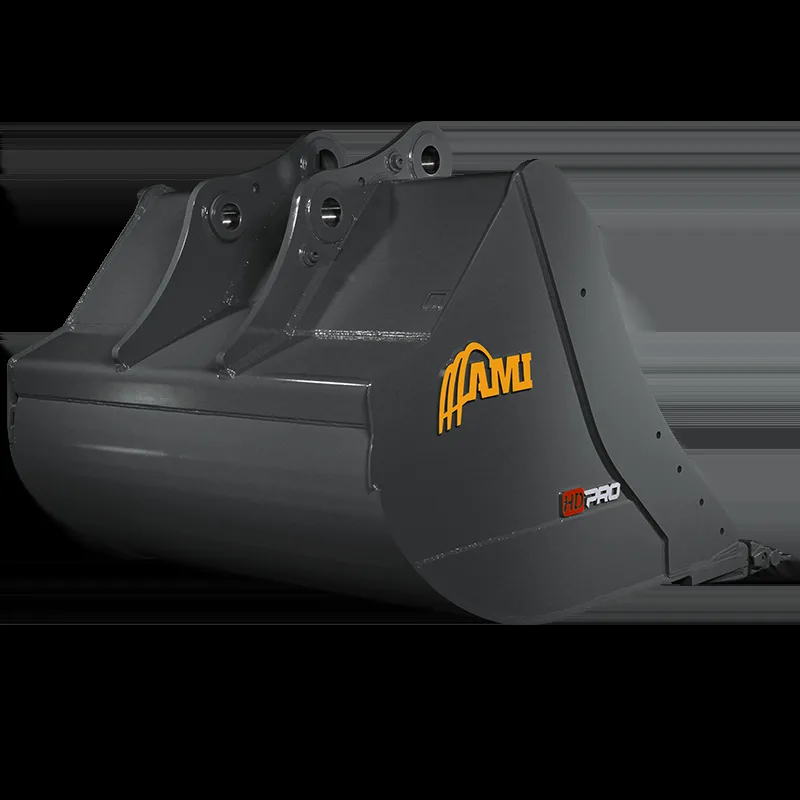

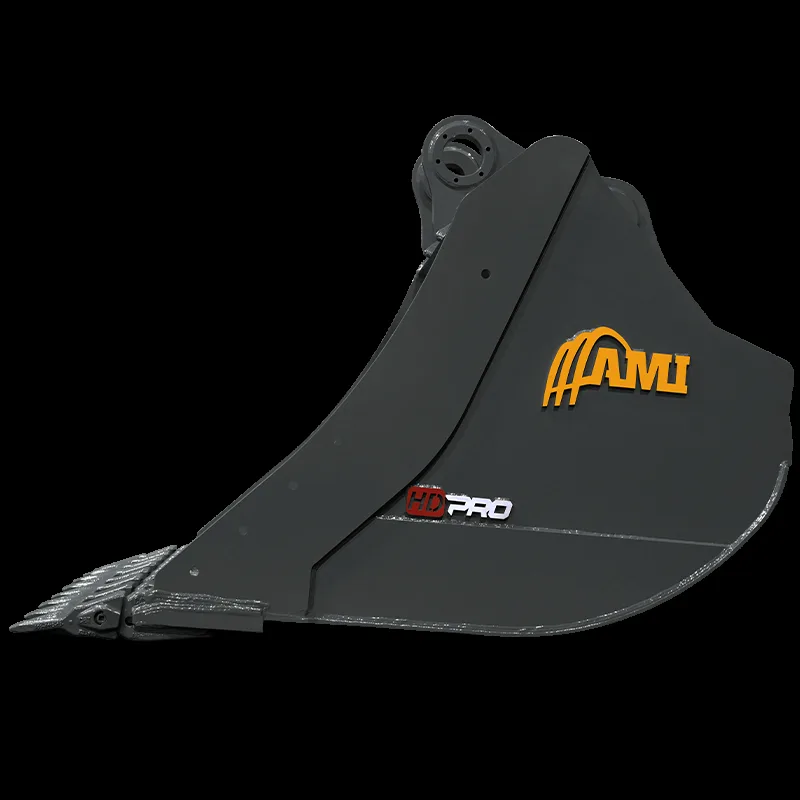

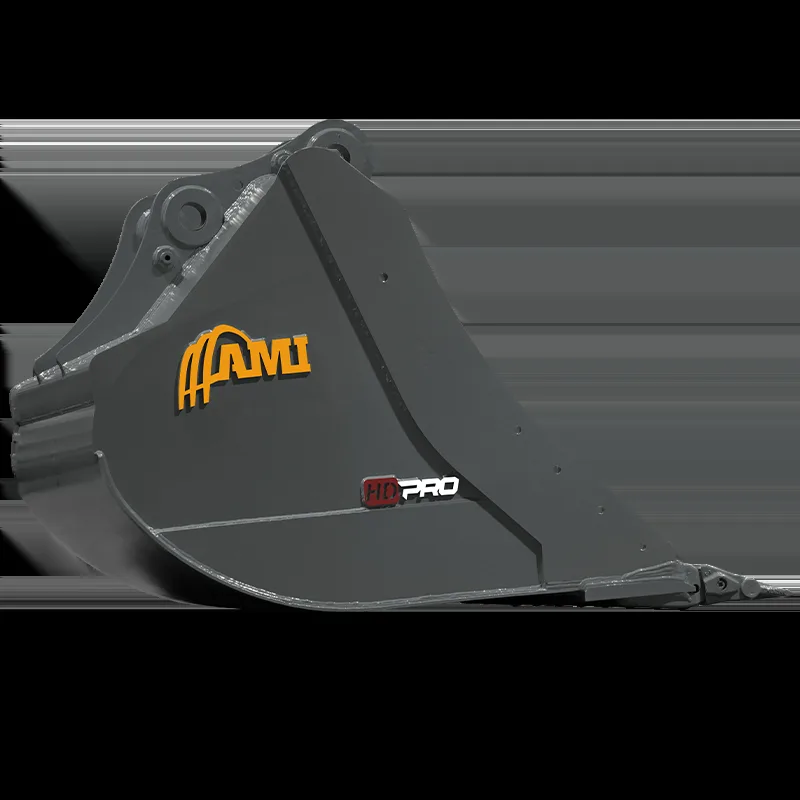

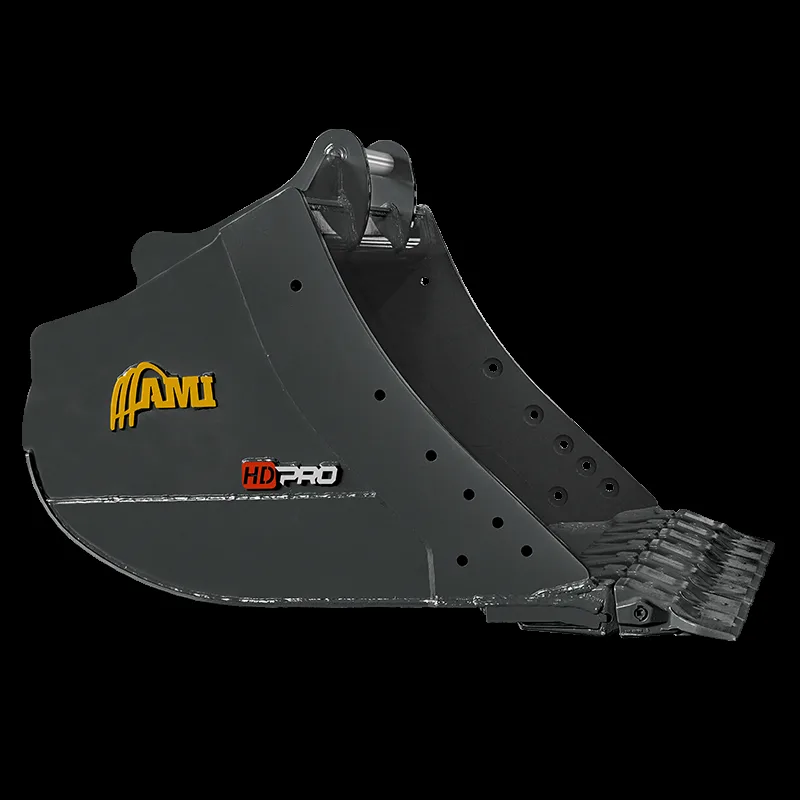

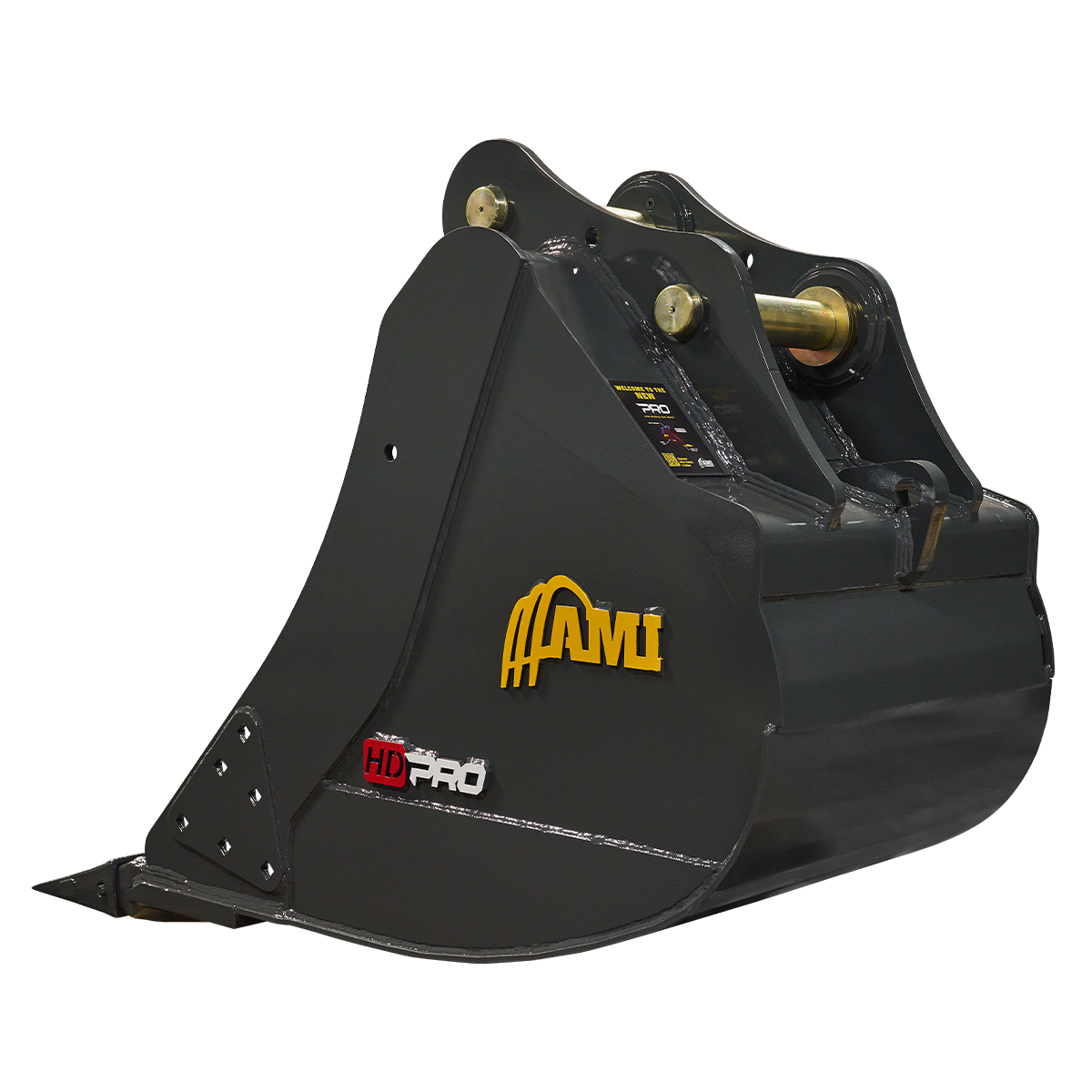

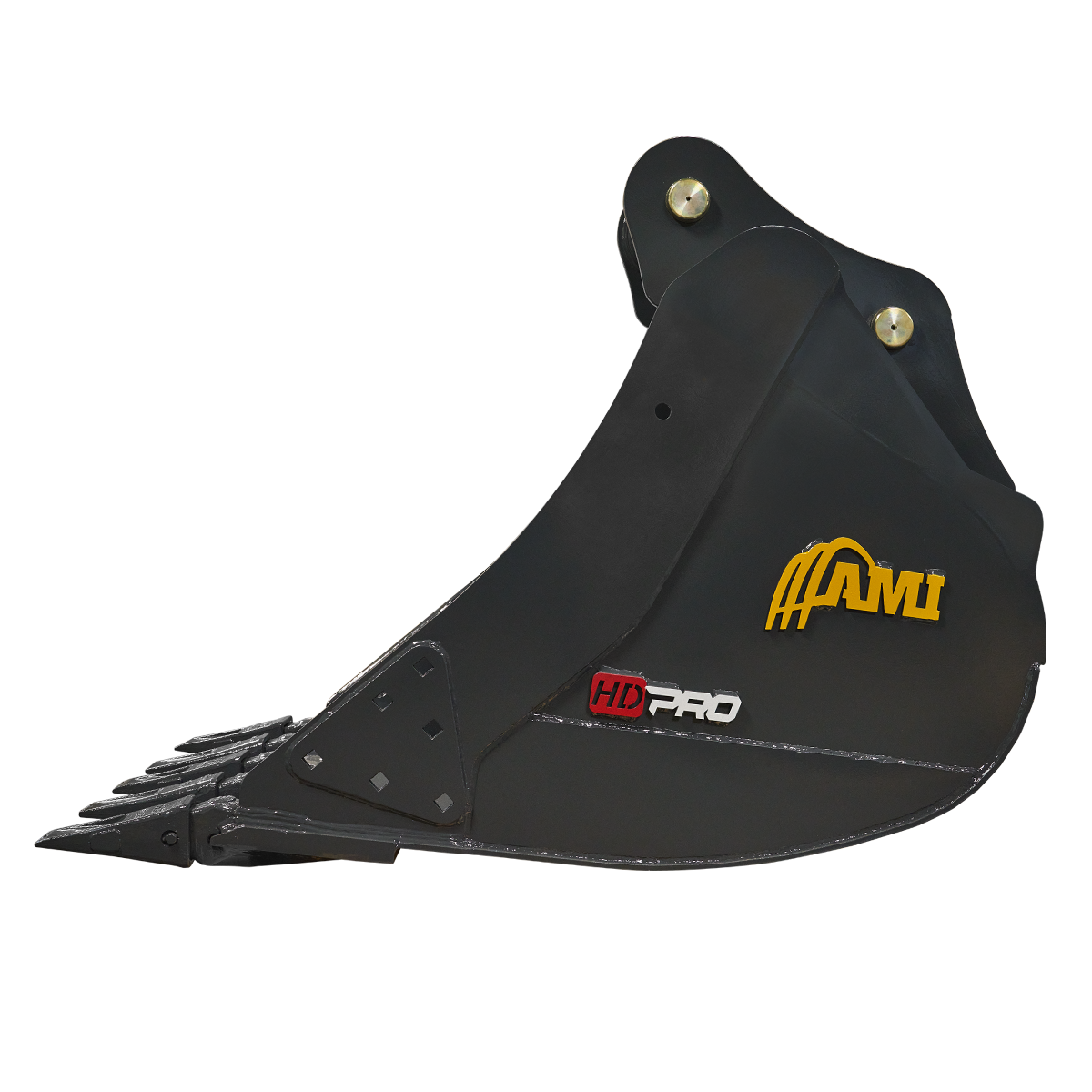

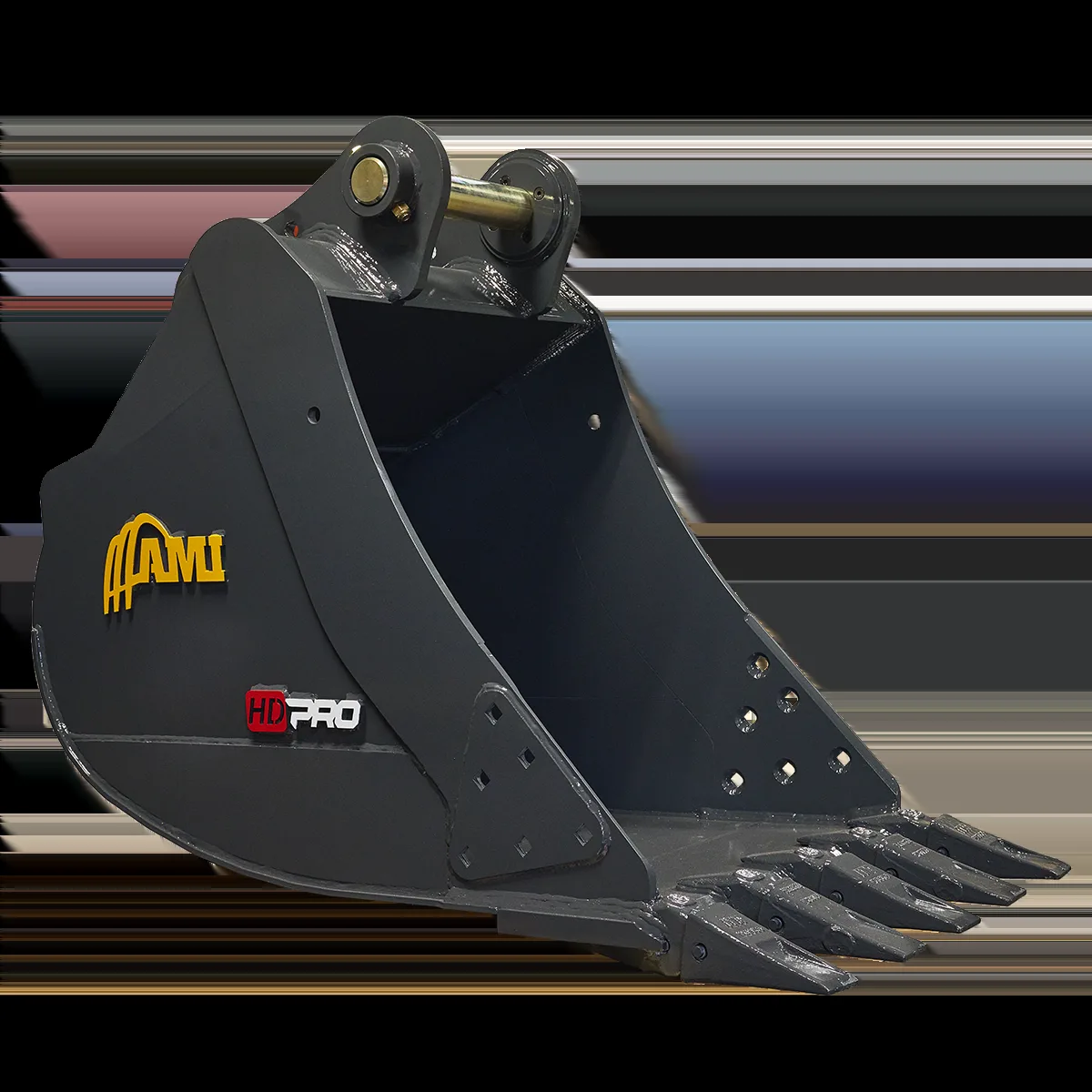

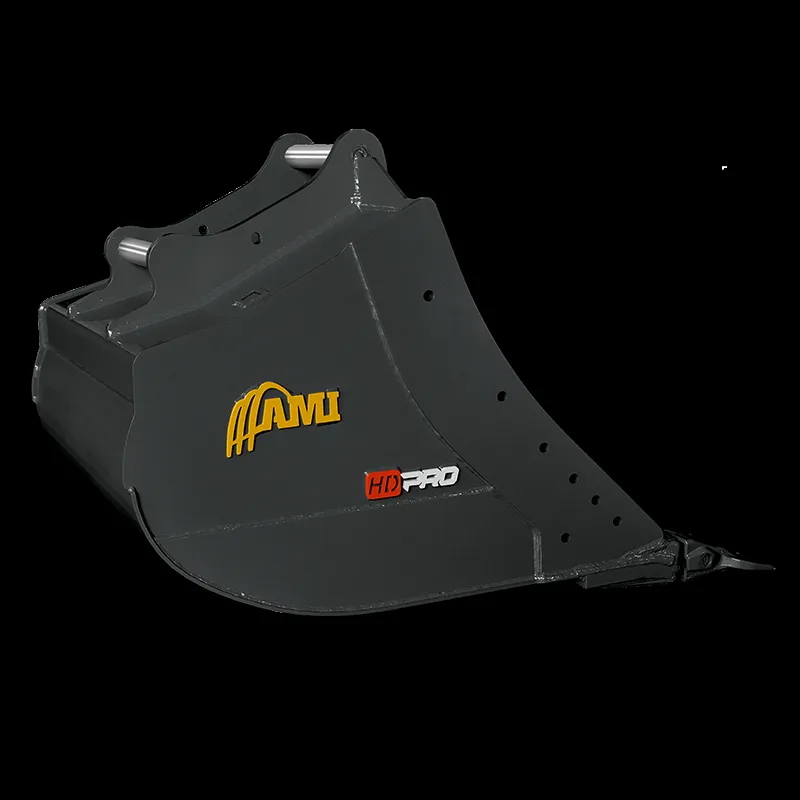

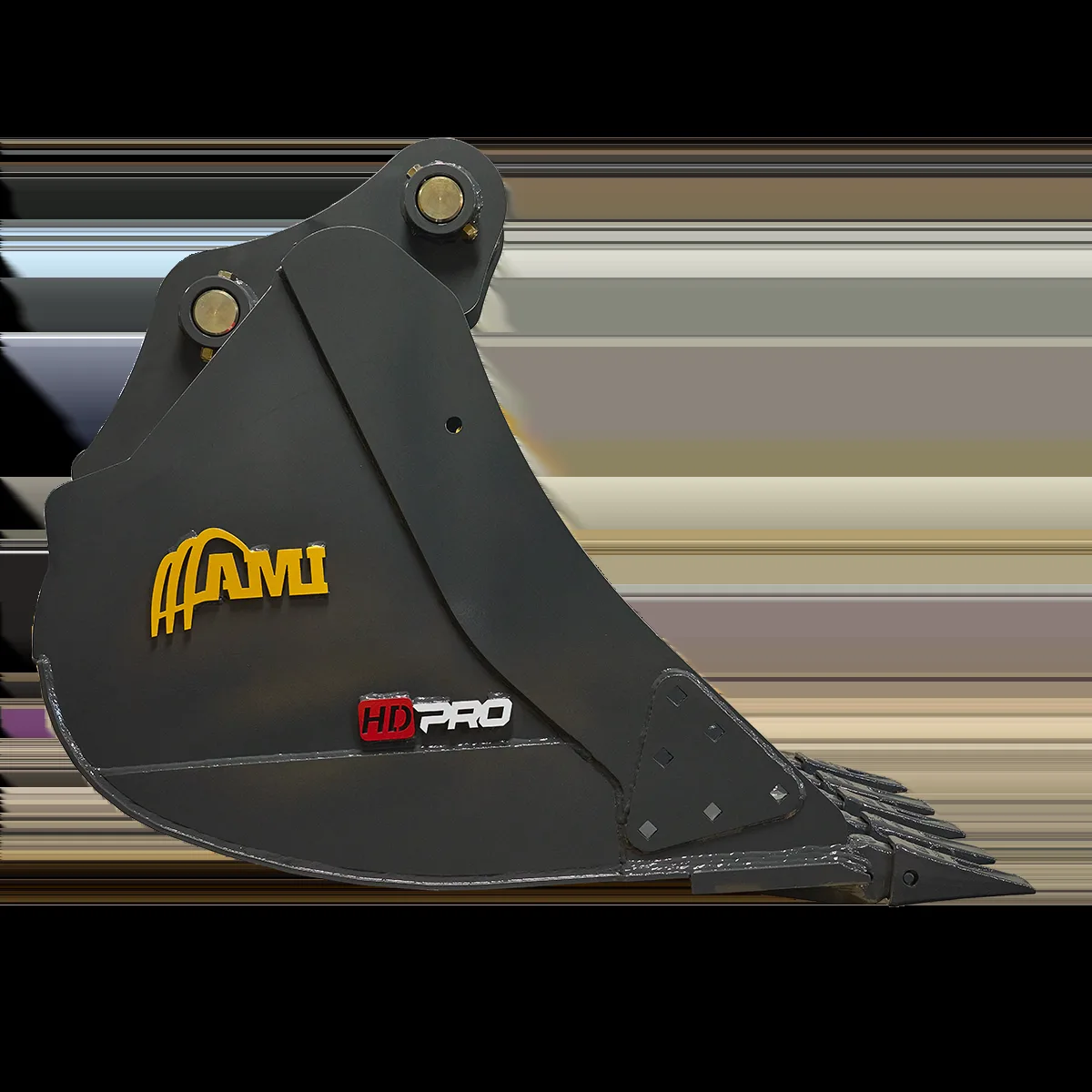

AMI's main digging bucket line for excavators is the PRO Series. The HD Pro is built to move more material per pass without upsizing the excavator. AMI lists 10 percent more payload from a lighter bucket. The HD Pro Plus (HD Pro+) goes further, with higher capacity for mass material moving and high production truck loading. AMI lists the Pro Plus as 15 to 20 percent lighter and able to move 30 percent more material.

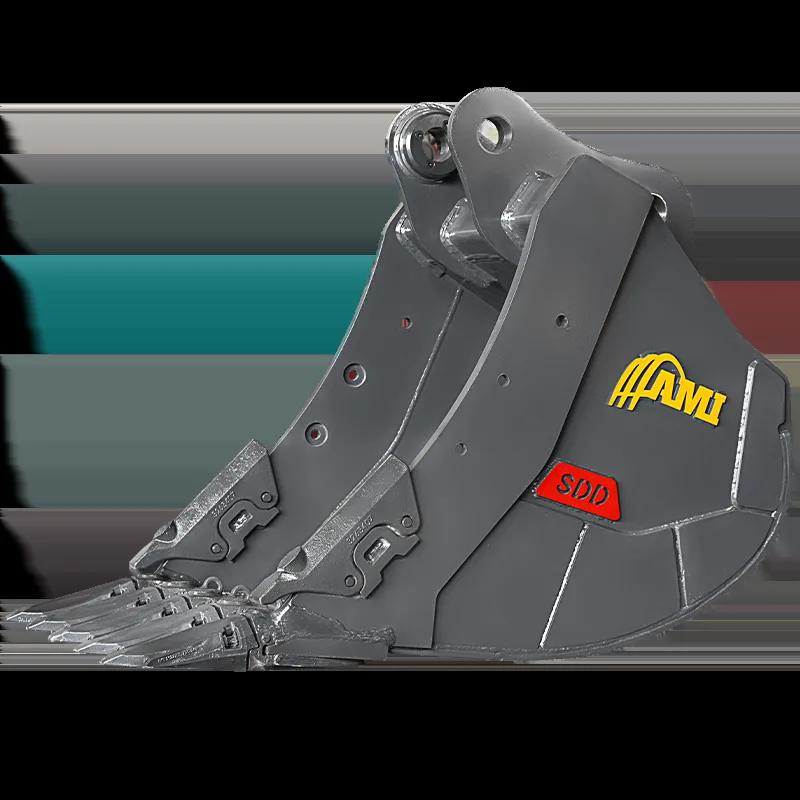

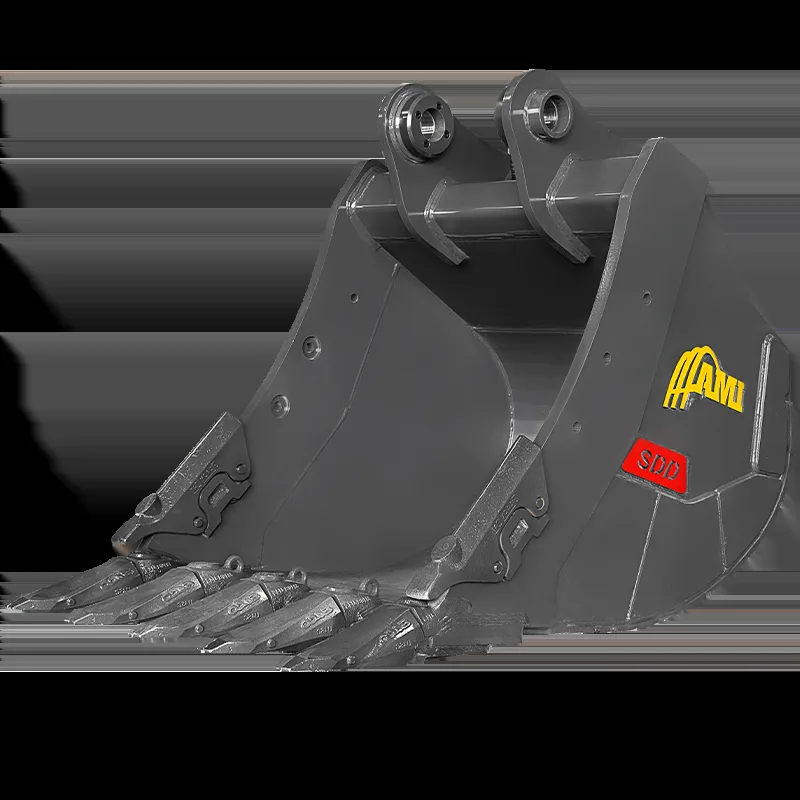

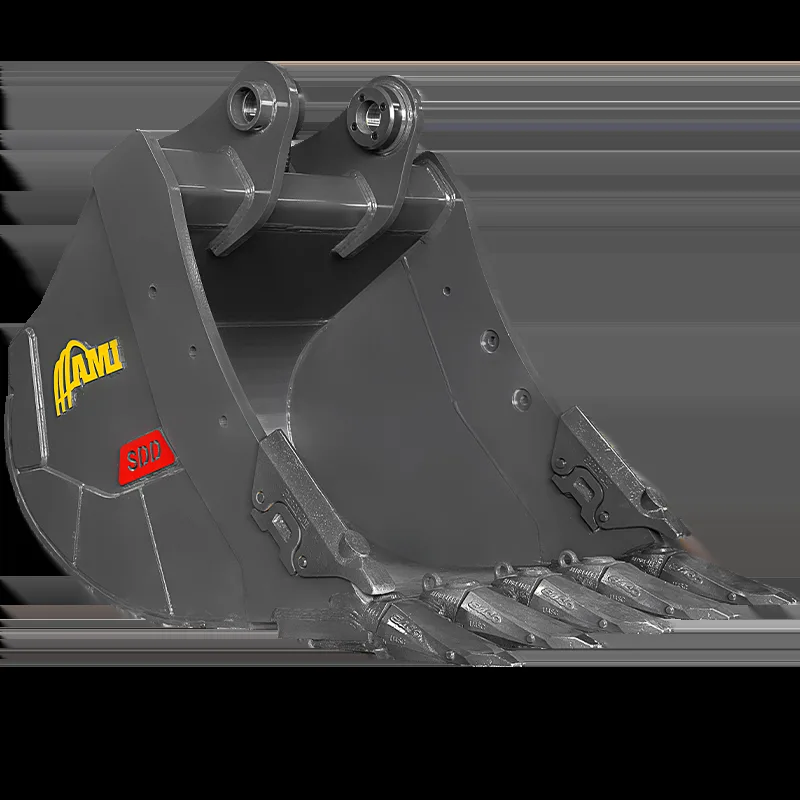

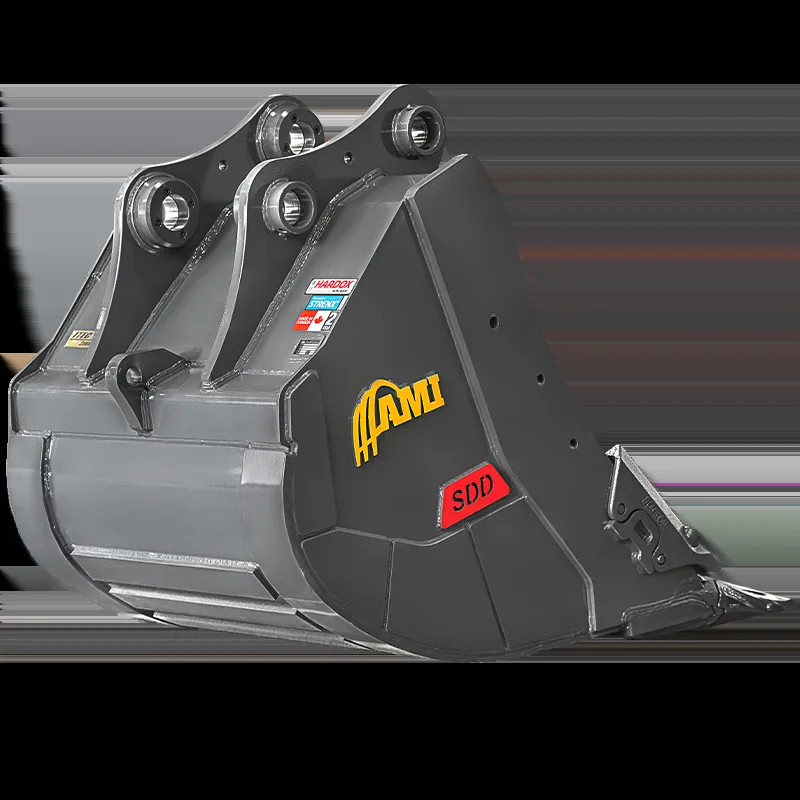

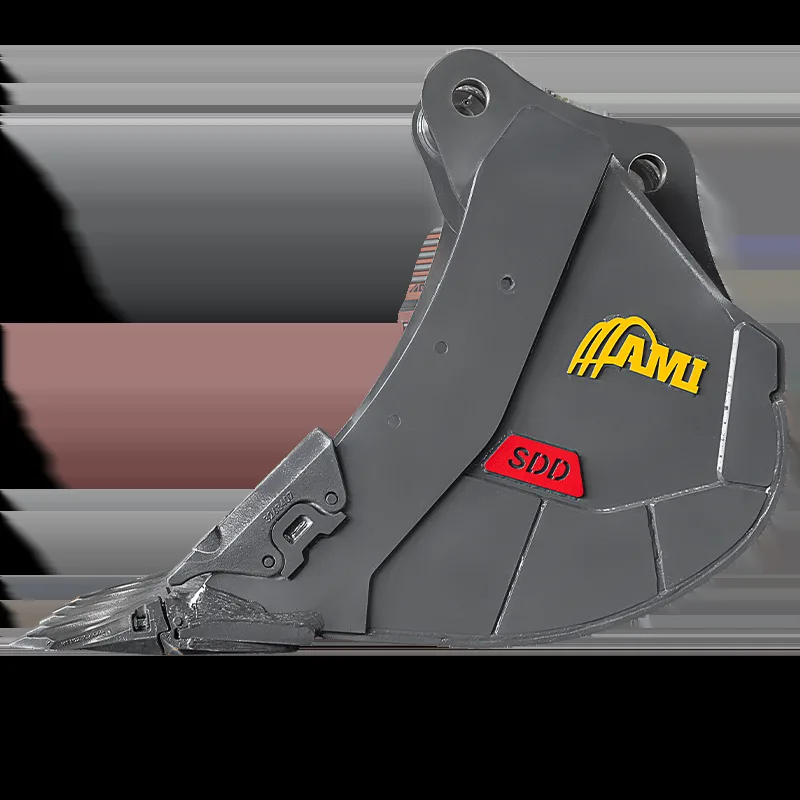

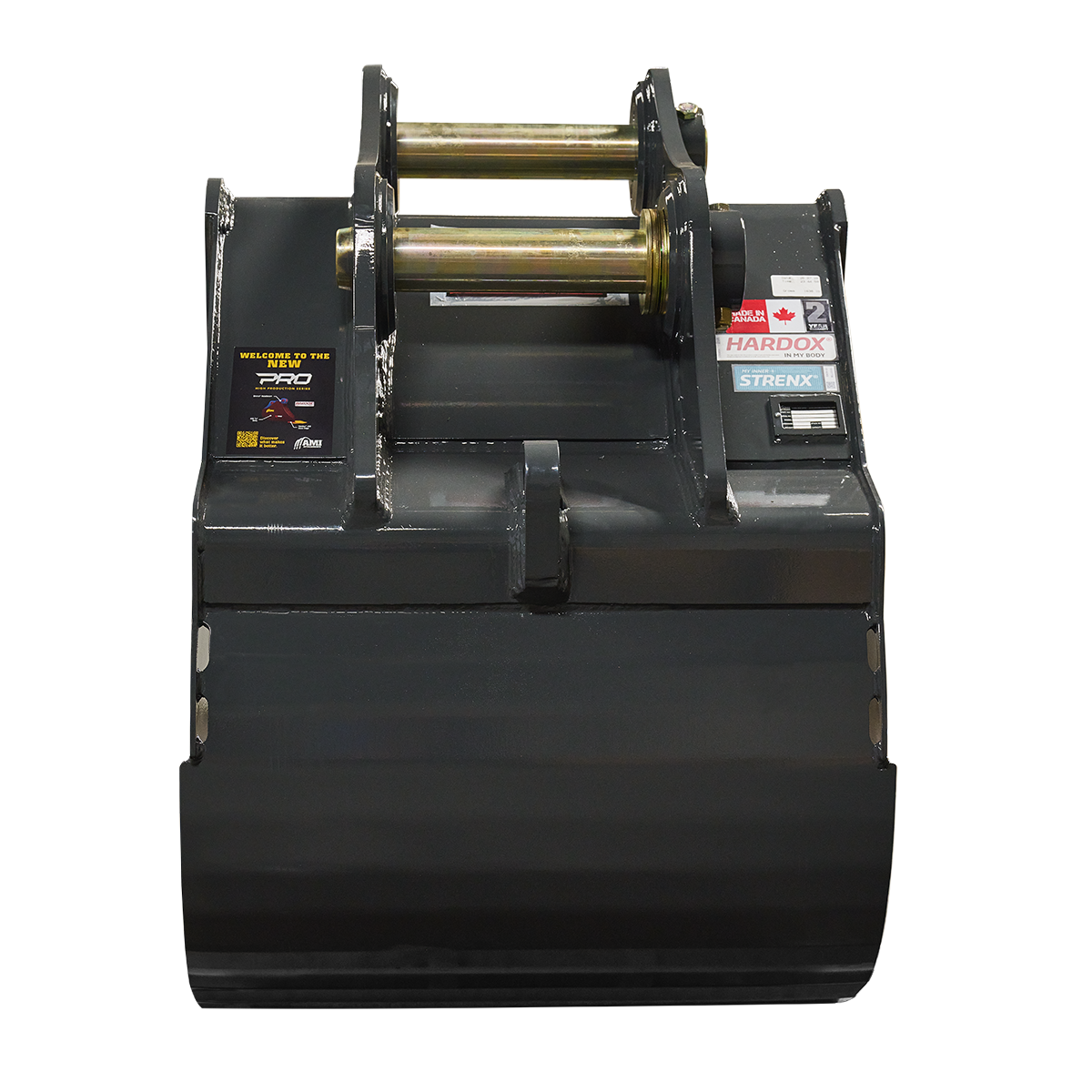

Both PRO buckets use Hardox 500 Tuf steel in the body and Strenx steel in the lugging. A smooth outer shell removes the need for heavy wear bars and cuts drag. The Severe Duty digging bucket in this line is built for higher abrasion work. It uses Hardox 450 wear steel in all wear areas, including the base edge, side cutter plates, larger cheek plates and horizontal wear bars, with a dual radius profile in the floor and heel.
Features
- Hardox 500 Tuf steel body on HD Pro and HD Pro Plus buckets
- Strenx steel lugging that flexes without cracking
- Smooth outer shell with no heavy wear bars, for less drag
- Speed Load dual radius shell fills faster and improves heel clearance
- Tapered sidewalls for less digging resistance and less side wear
- Fill factor over 100 percent, depending on material
- Severe Duty version uses Hardox 450 in all wear areas for high abrasion work
Models: HD Pro, HD Pro Plus (HD Pro+), and Severe Duty digging buckets. AMI's specification tables include a Fast Track column showing Fast Track availability per model.
Specifications
| Machine class | 24,000 to 160,000 lbs |
| Machine class (HD Pro) | 24,000 to 115,000 lbs |
| Machine class (HD Pro Plus) | 65,000 to 115,000 lbs |
| Widths | 18 to 96 in. |
| Capacity | 0.32 to 8.0 yd3 |
| Weight | 752 to 11,725 lbs |

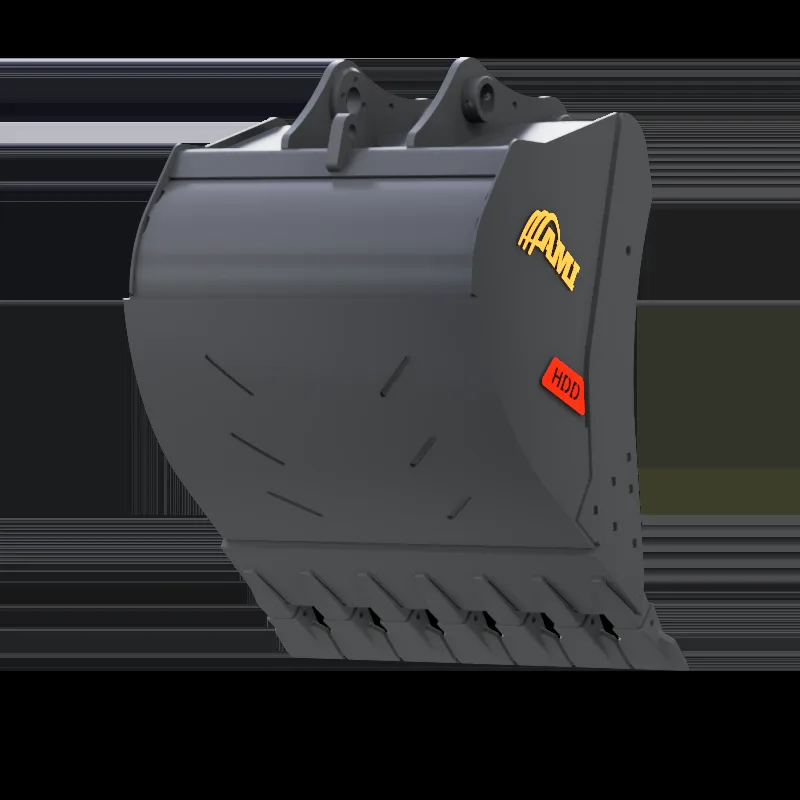

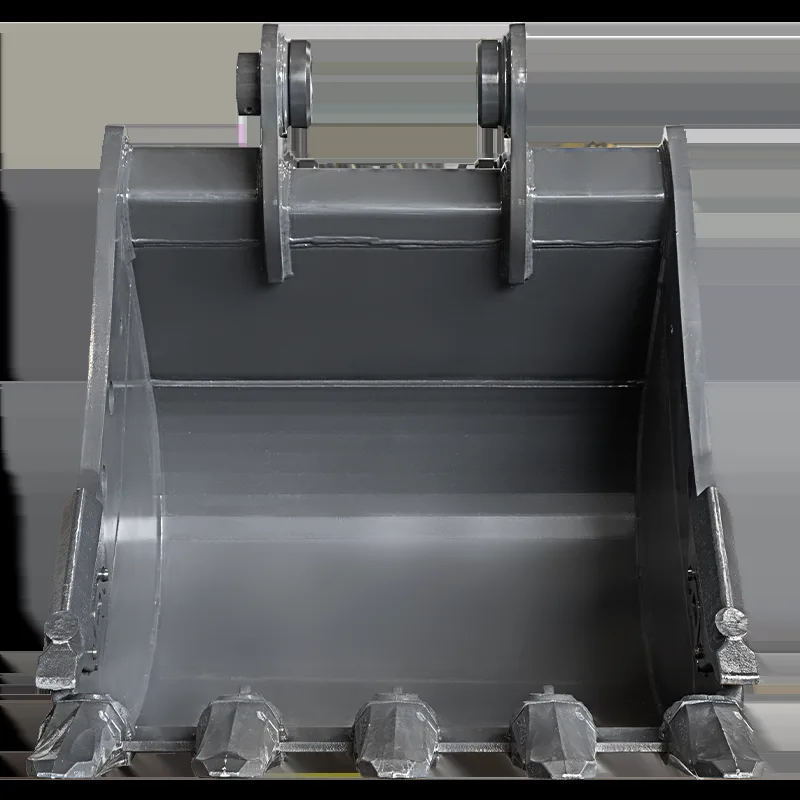

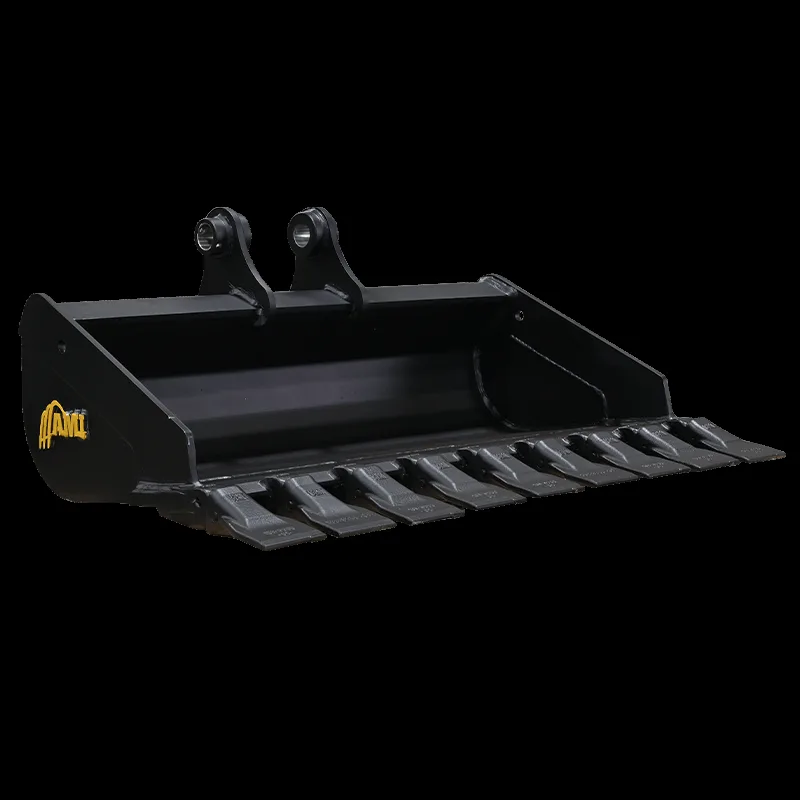

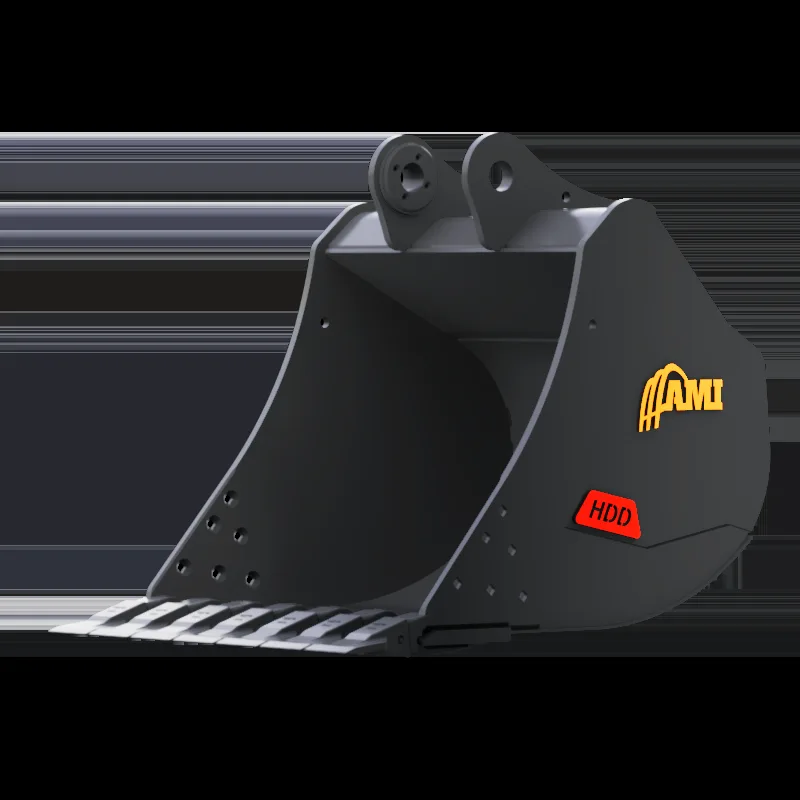

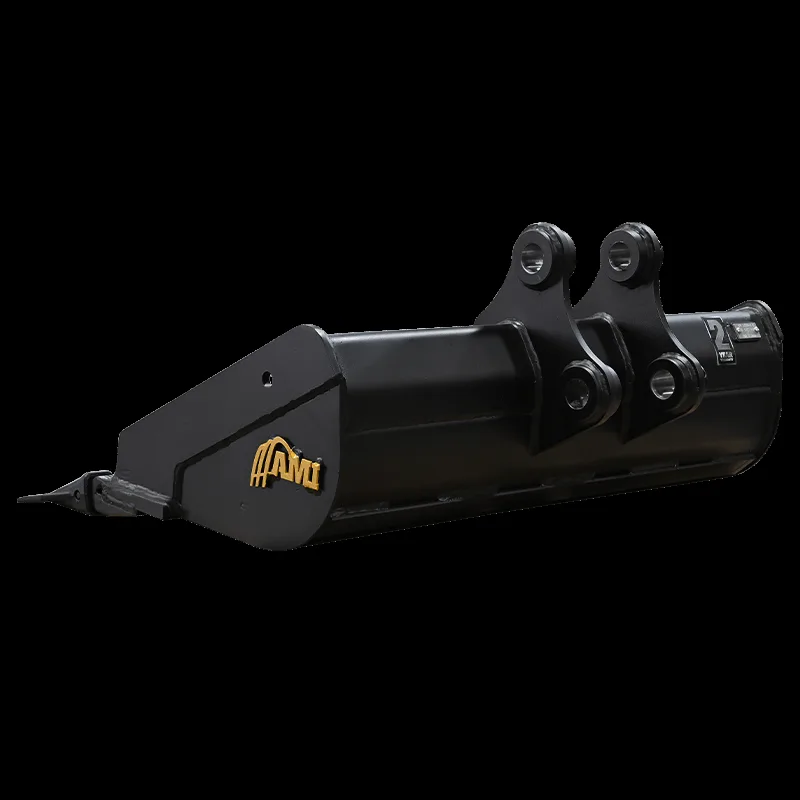

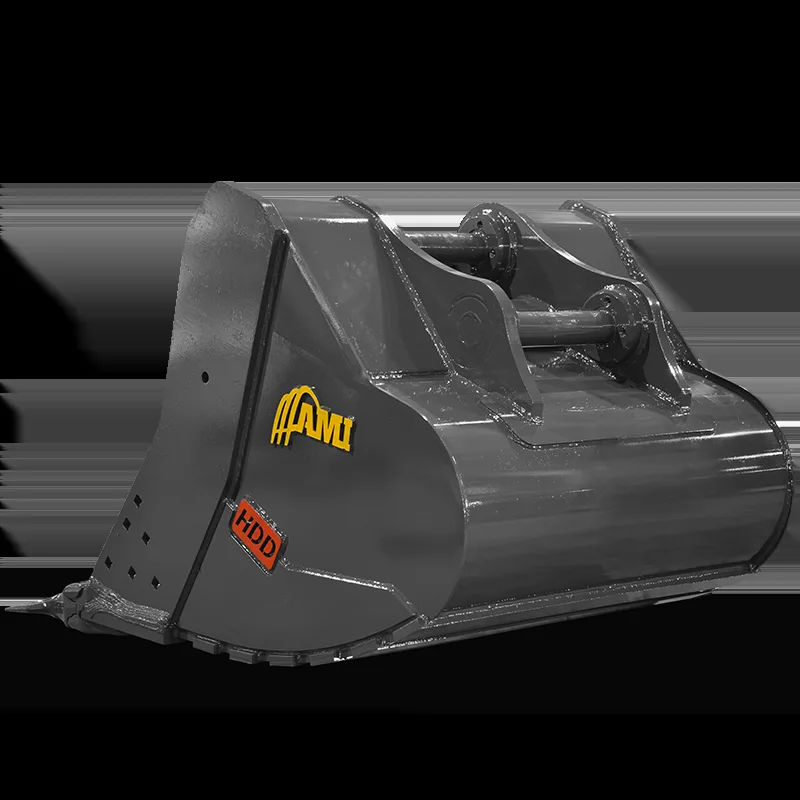

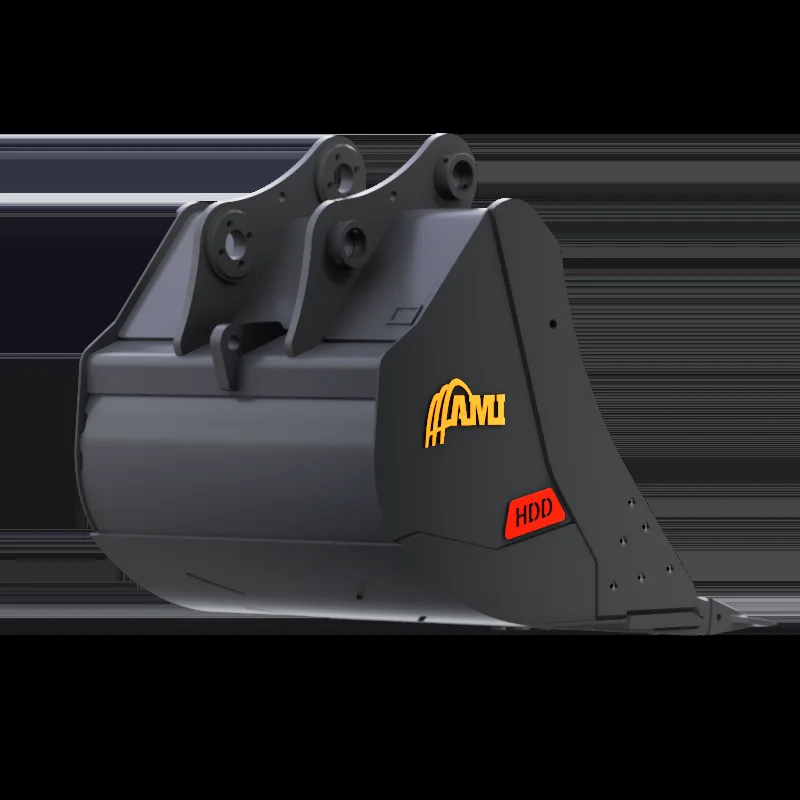

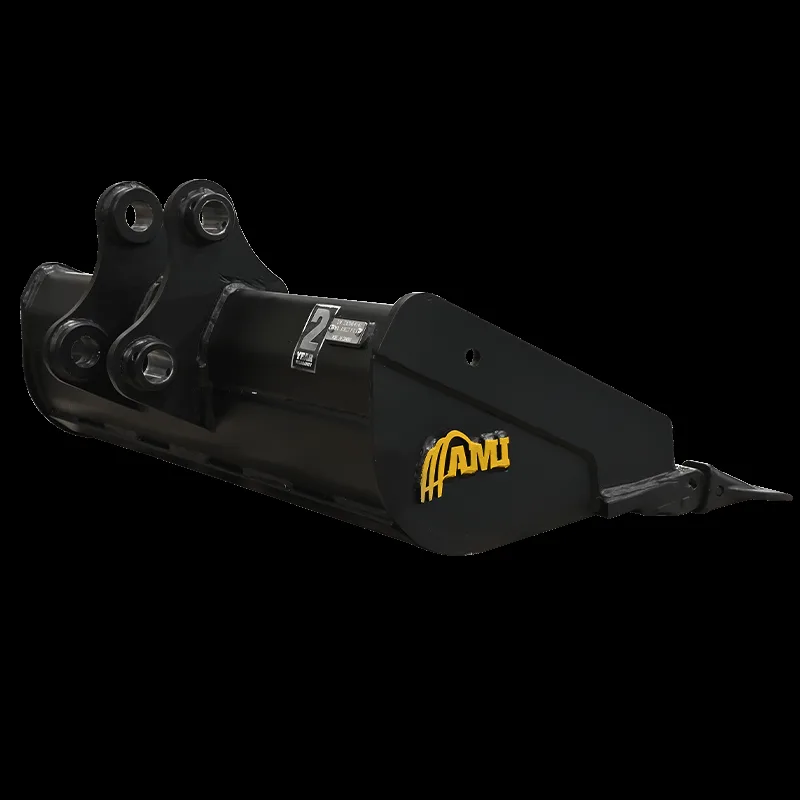

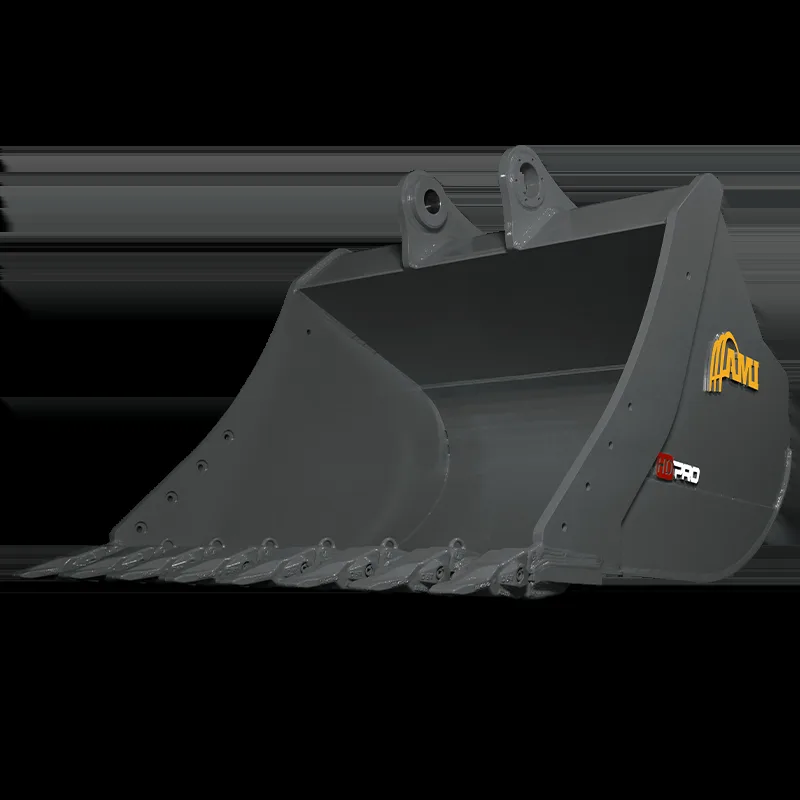

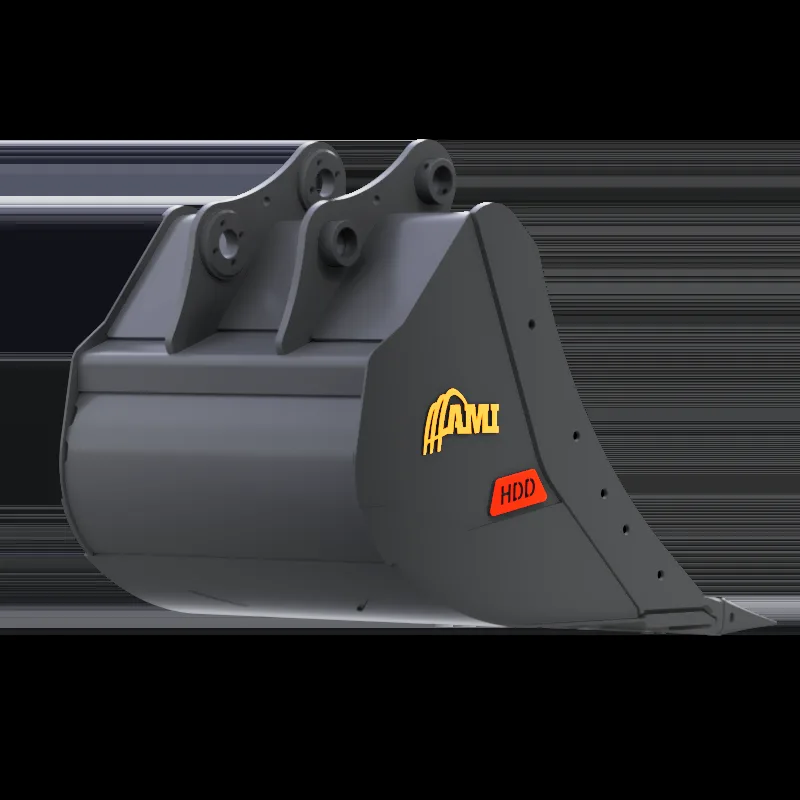

Gallery
